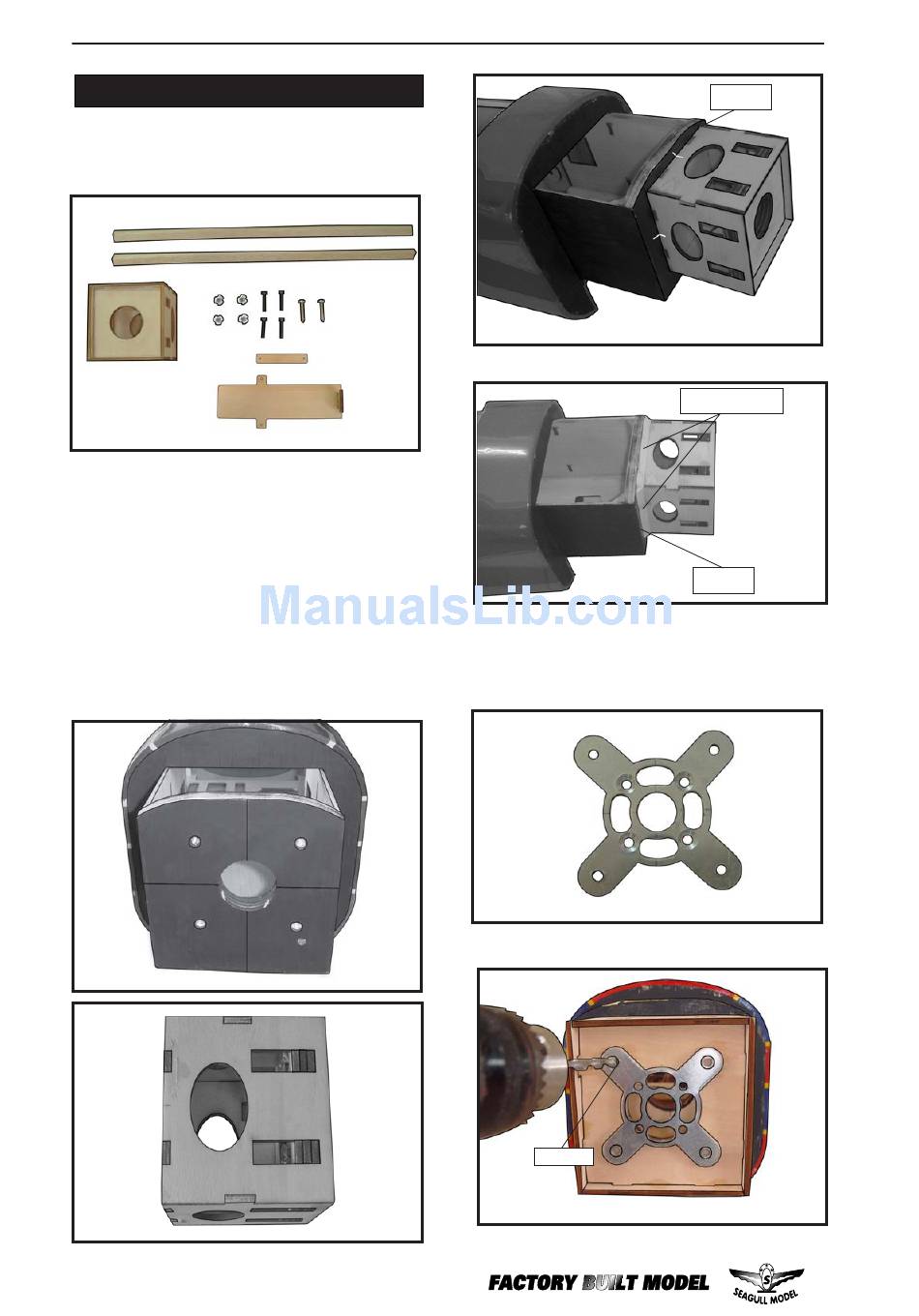

Seagull Models Turbo Raven Assembly Manual page 14

TURBO RAVEN.
ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install the
electric power conversion included with your
model.
- Model size: .35-.45 size models
- Motor: 35mm 830 rev per volt
- Propeller: 10x7
- ESC: 50A
- Lipo Batteries: 4 cell 3200mA
2) Attach the electric motor box to the firewall
suitable with the cross lines drawn on the electric
motor box and firewall. Using epoxy and balsa
stick to secure the motor box to the firewall.
Please see pictures below.
14
Instruction Manual
3) Attach the motor to the front of the electric
motor box using four 4mm blind nut, four
M4x15mm hex head bolts to secure the motor.
Please see picture shown.
5.2mm.
Epoxy.
Balsa stick.
Epoxy.
