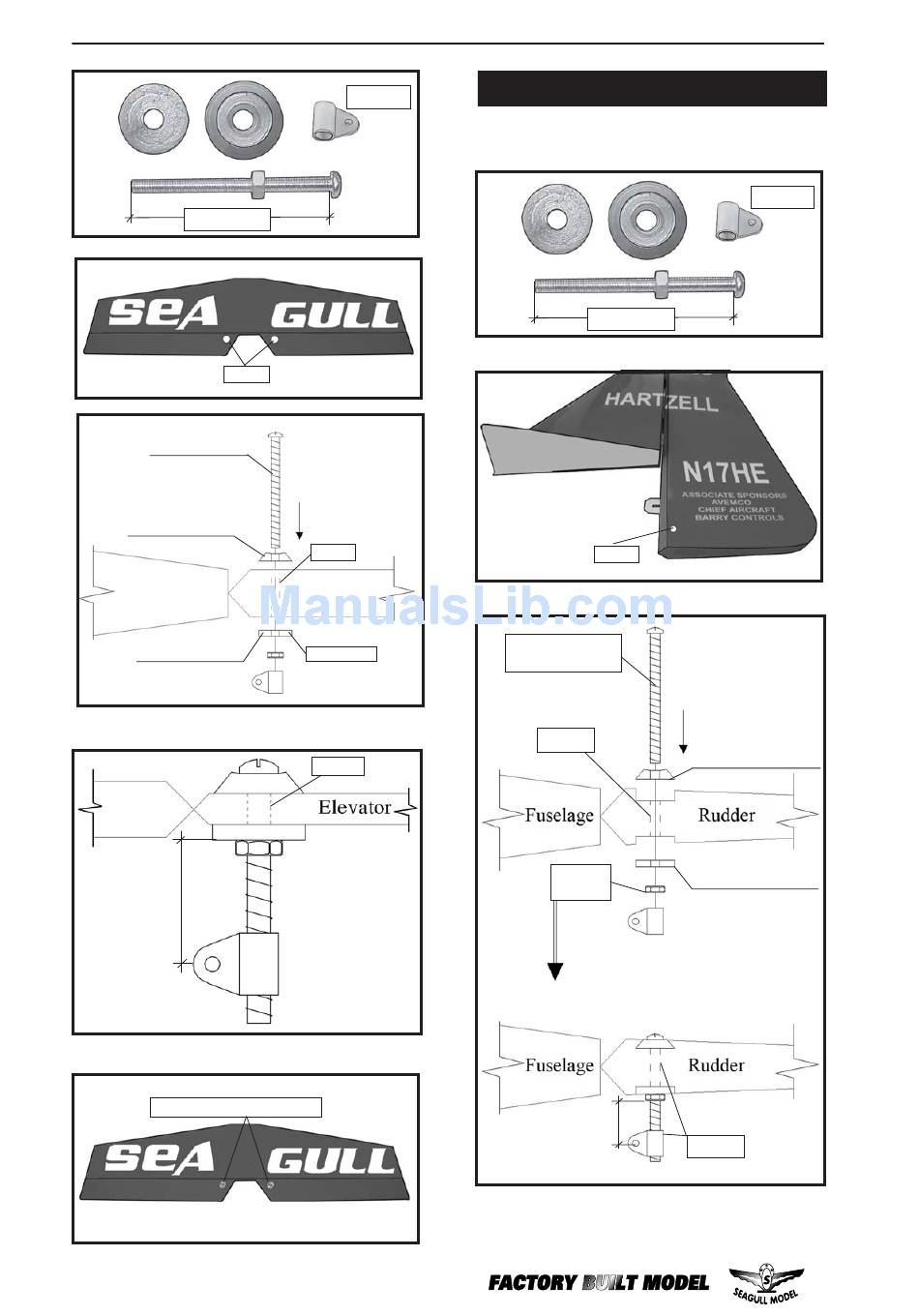

Seagull Models Turbo Raven Assembly Manual page 6

TURBO RAVEN.
3x40mm.
3mm
CONTROL HORN M3
.
Aluminum Washer
Horizontal
Stabilizer.
.
Aluminum Washer
Horizontal
Stabilizer.
16mm
.
Elevator control horn
6
2 sets.
.
.
Epoxy
Elevator.
.
M3 LOCK NUT
Epoxy.
.
Instruction Manual
INSTALL RUDDER CONTROL HORN.
Repeat steps to install the rudder control horn
as same as steps done for ailerons.
3x45mm.
.
3mm
CONTROL HORN
.
M3 SCREW
Epoxy.
M3 LOCK
.
NUT
.
18mm
2 sets.
.
ALUMINUM WASHER
.
ALUMINUM WASHER
Epoxy.
