Device Control

Device Control

Click the Utilities button and then the Device Control tab
to display the Device Control view.
Device Control Serial Utility Commands
Output 1 Pulse
Sending <L1> activates the link between Output 1 (+) and Output 1 (–) of the host connector
(regardless of Master Symbol or Output 1 status).
Output 2 Pulse
Sending <L2> activates the link between Output 2 (+) and Output 2 (–) of the host connector
(regardless of Master Symbol or Output 2 status).
Output 3 Pulse
Sending <L3> activates the link between Output 3 (+) and Output 3 (–) of the host connector
(regardless of Master Symbol or Output 3 status).
Disable Reader
Sending <I> will turn the scanner OFF, end the current read cycle, and will not allow the
scanner to enter another read cycle until turned ON. This feature is useful during extended
periods of time when no symbols are being decoded, or the scanner is being configured.
Disabling the scanner will not affect any commands that have already been downloaded.
Enable Reader
Sending <H> will turn the scanner ON and allow it to enter read cycles.
7-8

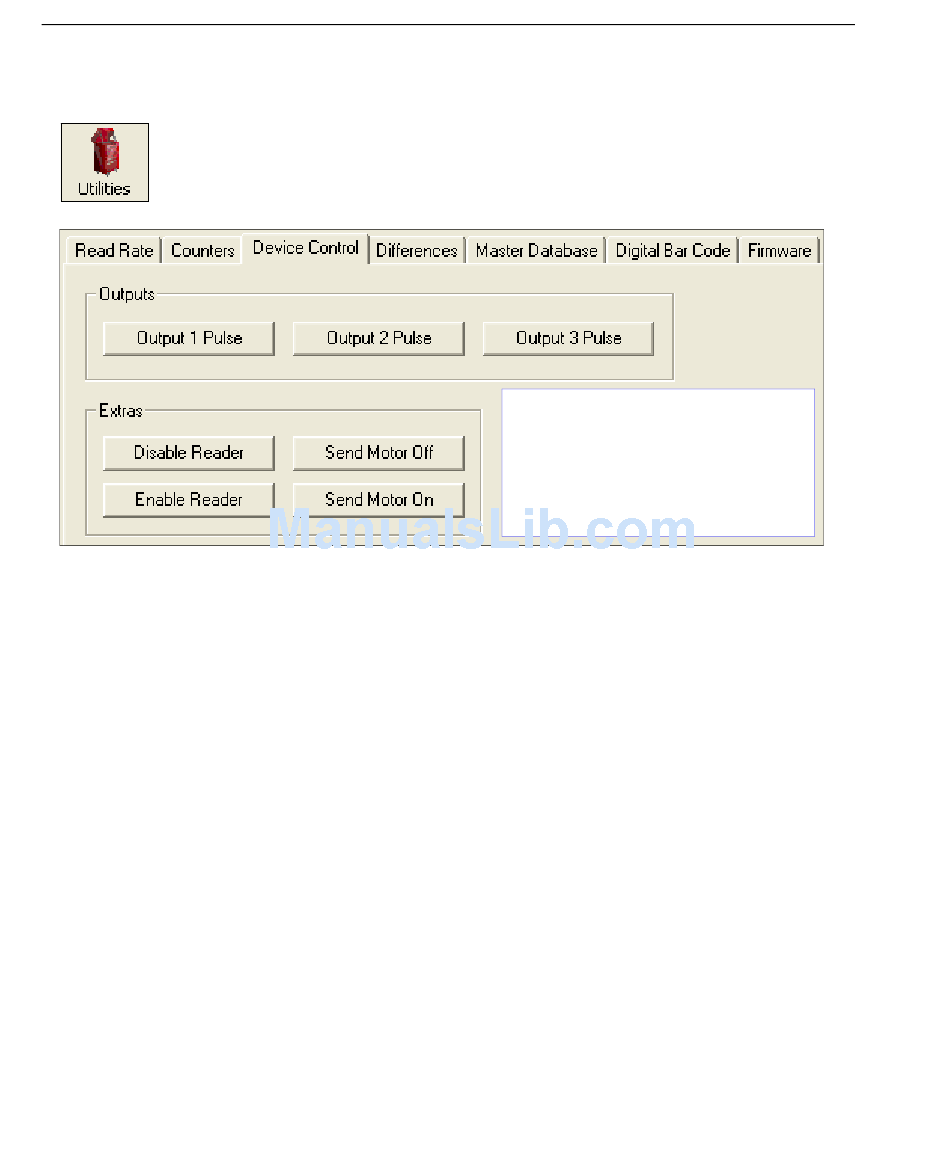

The Output 1 Pulse, Output 2
Pulse, and Output 3 Pulse buttons
activate the link between the + and –
of the host connector. The buttons in
the Extras section can Disable or
Enable the reader, or deactivate and
reactivate the motor.
