Position Scanner and Symbol

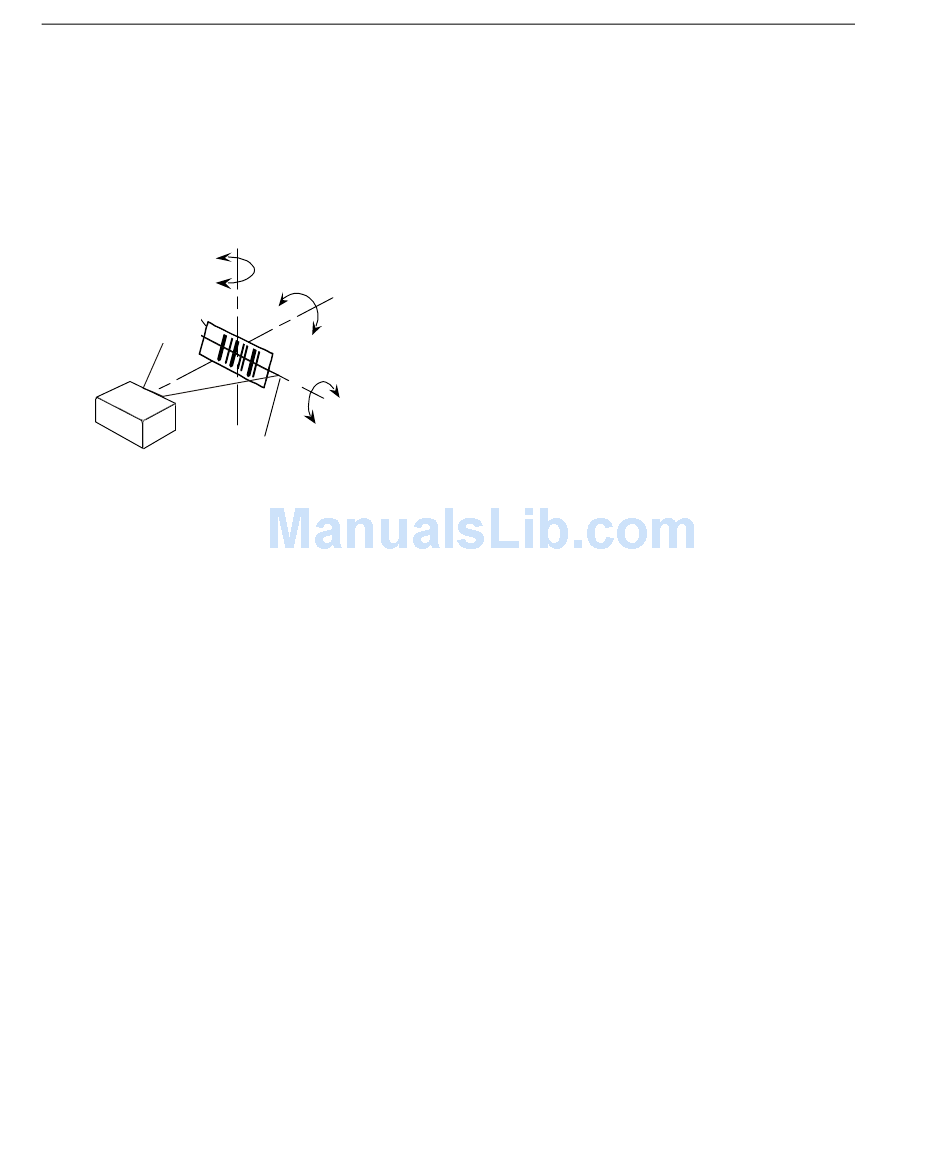

Step 3 — Position Scanner and Symbol
• Place a test symbol in a location with as little ambient light as possible.
• Position the scanner at the focal distance used in the application.
• Align the test symbol with the scanner's field of view.
• Tip the scanner relative to the test symbol to avoid glare from specular reflection.
Bar code
label
Symbol
Scanner
Scanner
1-4
axis
Skew
Tilt
axis
Tilt
Pitch
Pitch
axis
Scan line
Maximum
skew, tilt,
and pitch:
±30°
QX-830 Compact Industrial Scanner User's Manual
