Step 1 — Check Hardware
Item
1 QX-830 Compact Industrial Scanner
2 QX-1 Interface Device
3 QX Cordset, Common, M12 12-pin Plug to M12 12-pin Socket, 1 m 61-000162-01
4 QX Cordset, Host, Serial, M12 12-pin Plug to DB9, 1 m
5 QX Cordset, Host, Serial, M12 12-pin Socket to DB9, 1 m
6 QX Power Supply, M12 12-pin Socket, 1.3 m
7 QX Cordset, Host, Ethernet, M12 8-pin Plug to RJ45, 1 m
8 QX Photo Sensor, M12 4-pin Plug, NPN, Dark On, 2 m
Note: Additional cordsets and accessories are available in the Microscan Product Pricing Catalog.
Note: The QX-830 does not require an Ethernet crossover cordset, because the scanner
itself performs automatic internal crossover (transmit-to-receive switching). Microscan
offers a standard straight-through (un-crossed) Ethernet cordset (61-000160-01).

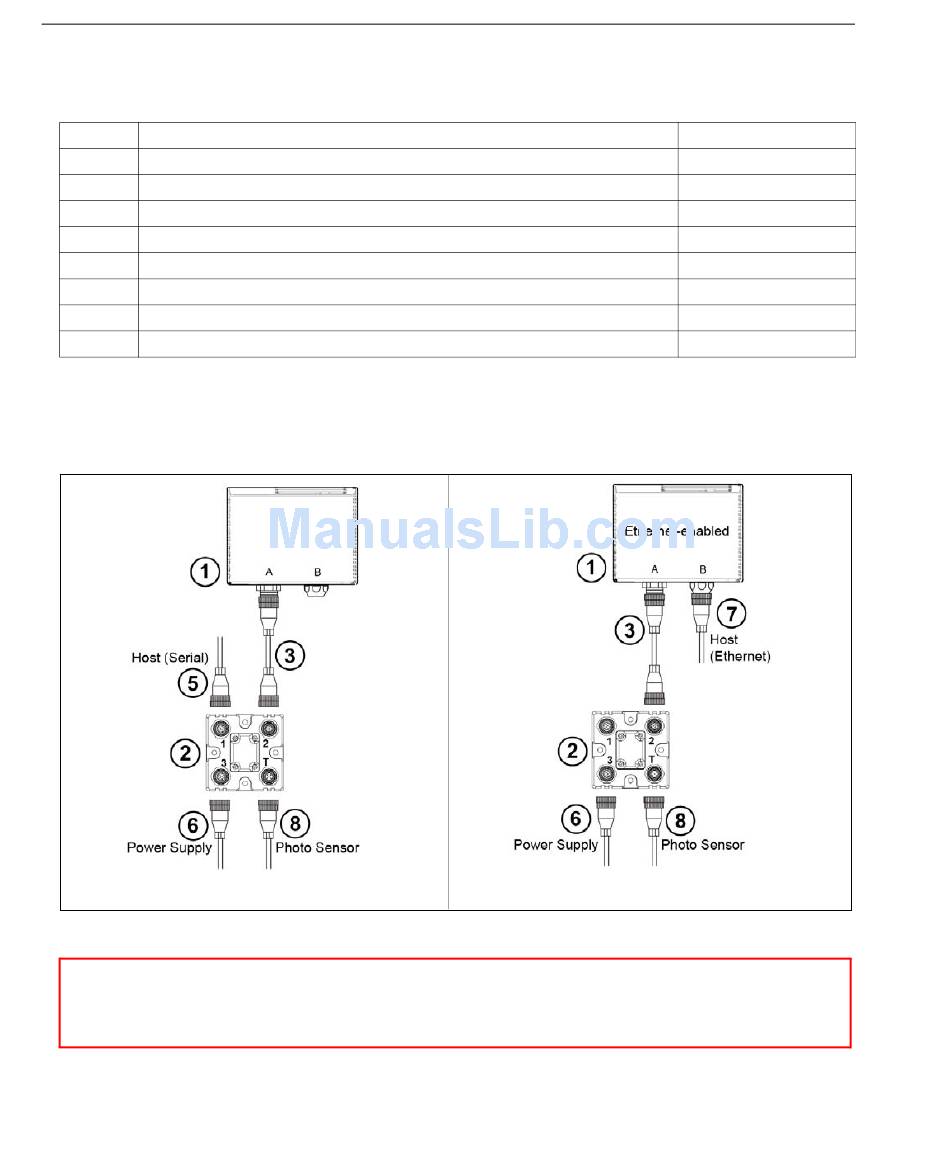

Serial Standalone (with QX-1)
Caution: Be sure that all connections are secure BEFORE applying power to
the system. Always power down BEFORE disconnecting any cables.
1-2
Description
Ethernet Standalone (with QX-1)
Hardware Required
QX-830 Compact Industrial Scanner User's Manual
Part Number
FIS-0830-XXXXG
98-000103-01
61-000152-01
61-000153-01
97-000003-01
61-000160-01
99-000020-02
