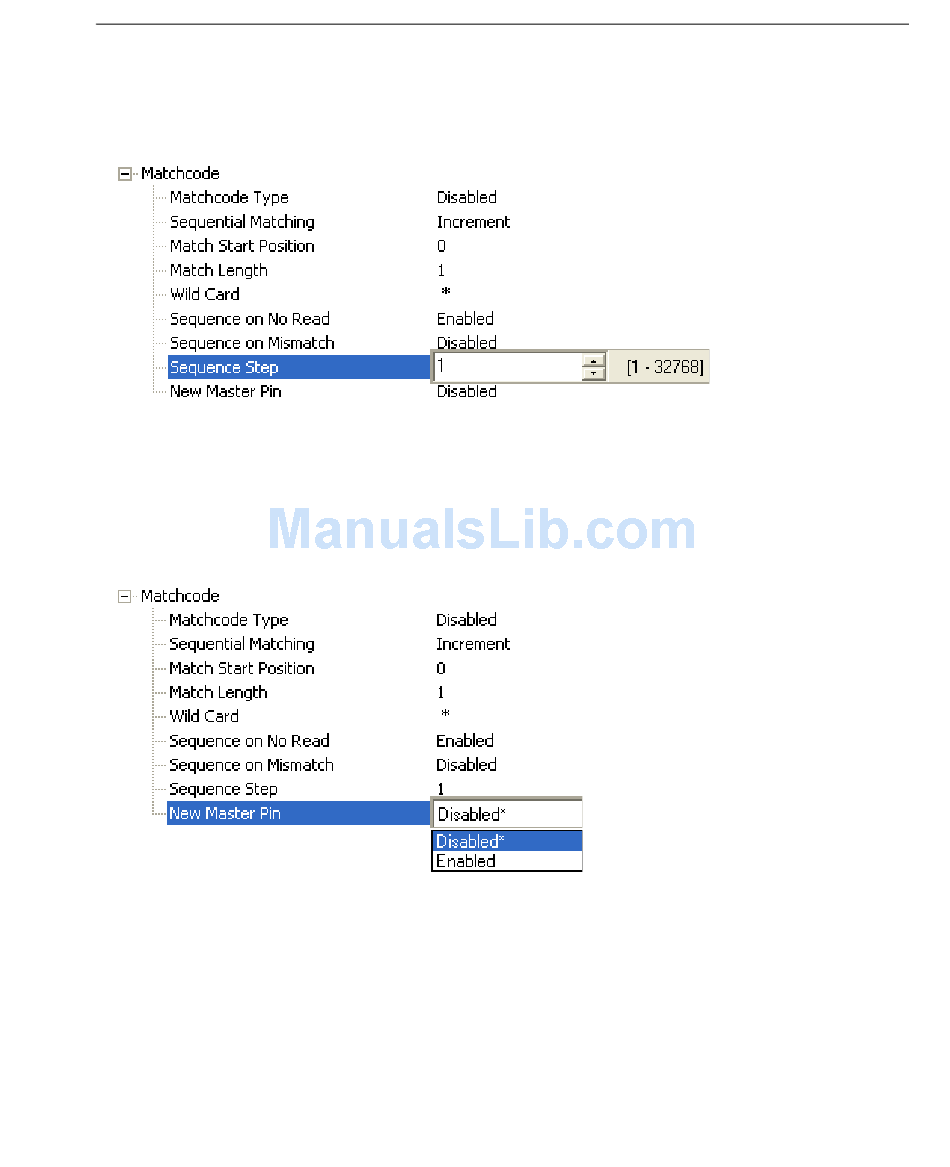

Sequence Step
When the master symbol is sequenced (incremented/decremented), Sequence Step
defines the magnitude of change.

New Master Pin

If Matchcode and New Master Pin are enabled and the new master pin is momentarily
connected to ground (must be held low for a minimum of 10 ms), master symbol information
will be loaded into the database based on the next read cycle that achieves a Good Read,
starting with Index 1. The
read cycle as long as it does not exceed the
New Master Load Status
The new master status responds with the number of the next master position to be loaded,
where 0 represents "idle" or "no master to be loaded."
Example: If the user has the
sends a <G> or toggles an active New Master Pin, the state will be 1, and prior to reading
and effectively loading position 1, the response to
symbol has been read and loaded, the status will be cleared: <NEWM/0>.
QX-830 Compact Industrial Scanner User's Manual
Master Database will be loaded with all symbols decoded in the
Master Symbol Database Size
Master Symbol Database Size
Scanner Parameters
set to 1, and then either
<NEWM> would be <NEWM/1>. Once a
parameter.
