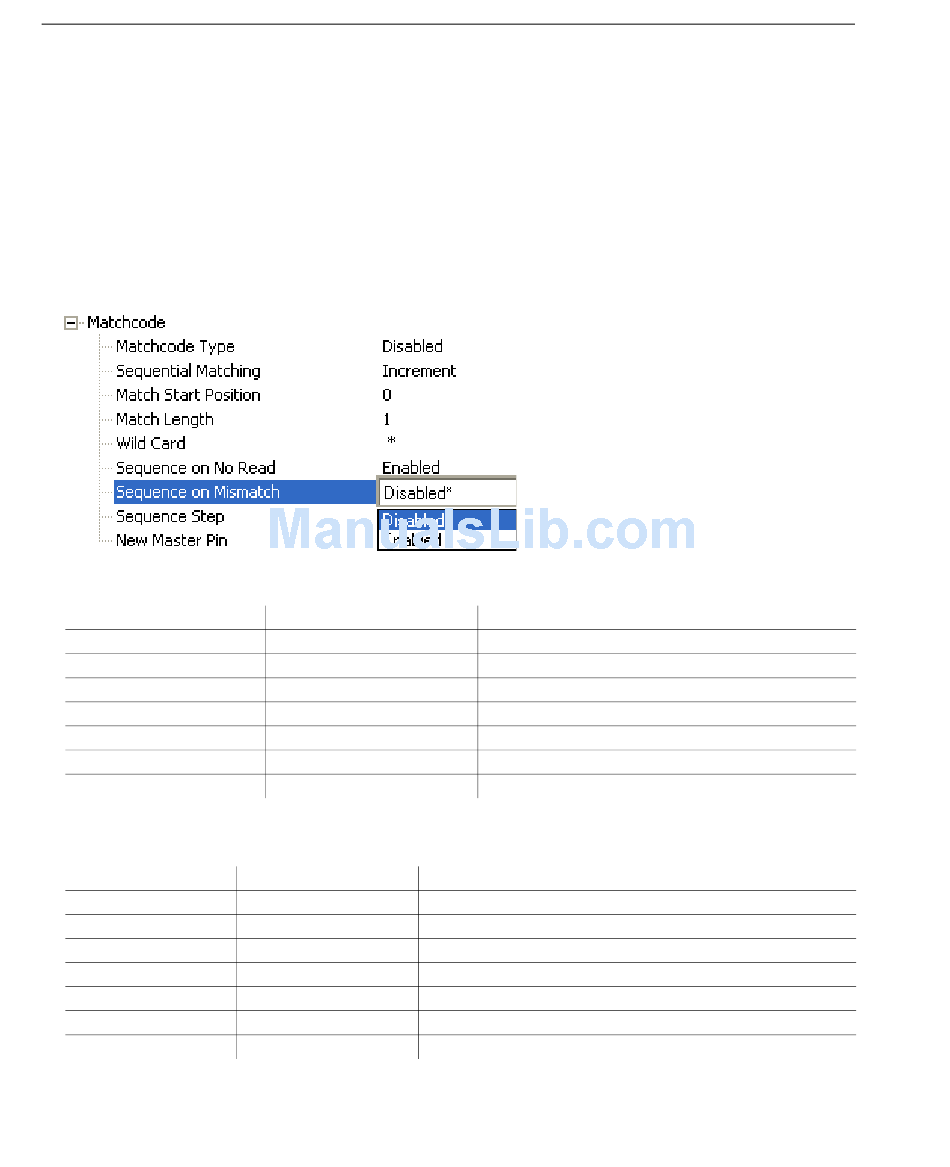

Sequence on Mismatch

Note: Matchcode Type
Enable this parameter if every trigger event should have a decode and more than one
consecutive mismatch may occur. When set to Enabled, the master symbol sequences on
every decode, match, or mismatch.
Disable this parameter if every trigger event should have a decode but no more than one
consecutive mismatch may occur. When set to Disabled, the master symbol will not
sequence whenever consecutive mismatches occur.
The scanner will sequence the master to one more or one less than the decoded symbol.
Consider the following decodes as an example of Sequence on Mismatch Enabled:
Master Symbol
001
002
003
004
005
006
007
Consider the following decodes as an example of Sequence on Mismatch Disabled:
Master Symbol
001
002
003
004
005
006
006
5-174
must be set to Sequential for this command to function.
Decoded Symbol
001
002
abc
004
def
ghi
007
Decoded Symbol
001
002
abc
004
def
ghi
006
Master Symbol after Decode
004 (sequence on mismatch)
006 (sequence on mismatch)
007 (sequence on mismatch)
Master Symbol after Decode
002
003
004 (sequenced because of previous match)
005
006 (sequenced because of previous match)
006 (not sequenced)
007
