Chapter 2: Upgrading Baseboard Components
46

Installing the Processor Tabs

Depending on your configuration, the tabs for the processor's S.E.C. cartridge might not
be attached to the cartridge. In this case, you must attach two tabs to each S.E.C. cartridge
as directed in the following steps:
1. Orient the tab as shown in Figure 2-7.
2. Two small round pegs at the center of the tab correspond with two round holes at
each corner of the S.E.C. cartridge, see Figure 2-7. Spread the tab open slightly to get
the pegs into the holes, being careful not to use too much force and break the tab.
If done properly, the tab will rotate freely with its axis near the center of the tab, at
the base of the triangular section.
3. Repeat to install the second tab to the S.E.C. cartridge.

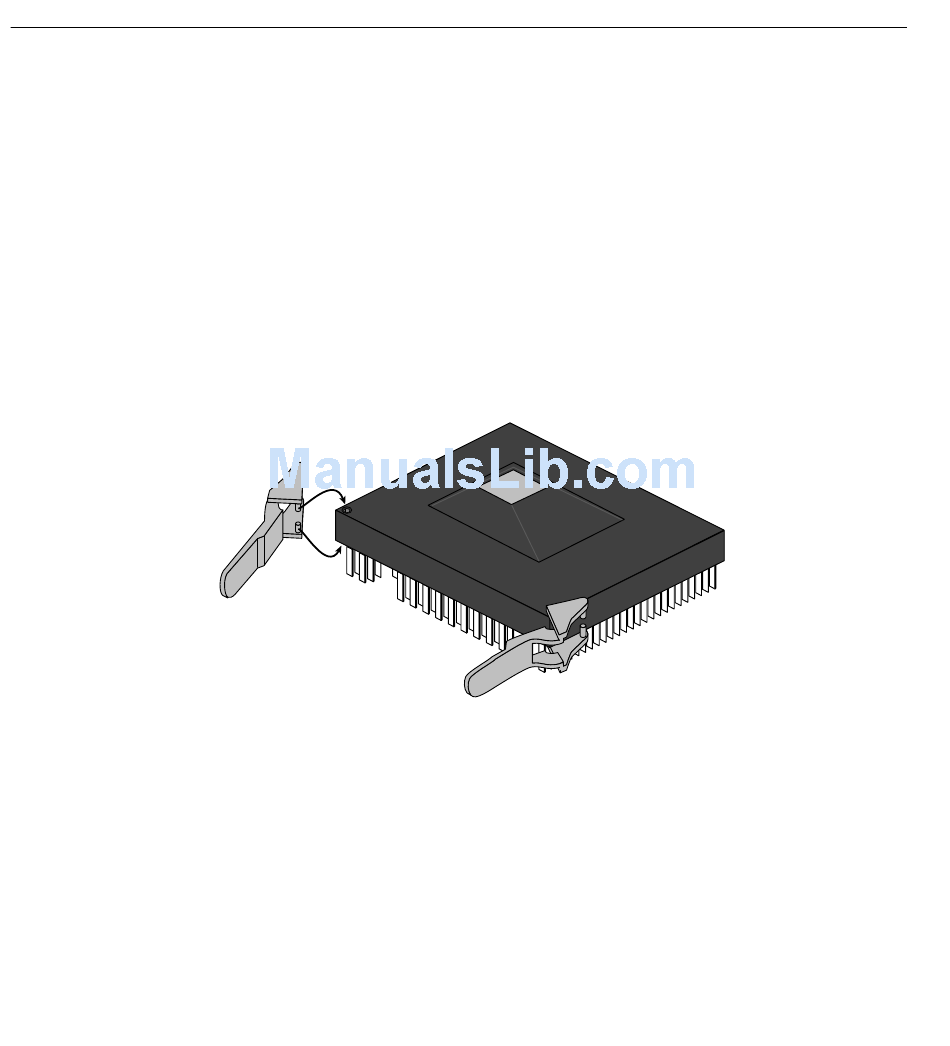

Figure 2-7 Installing Tabs on a Processor S.E.C. Cartridge
