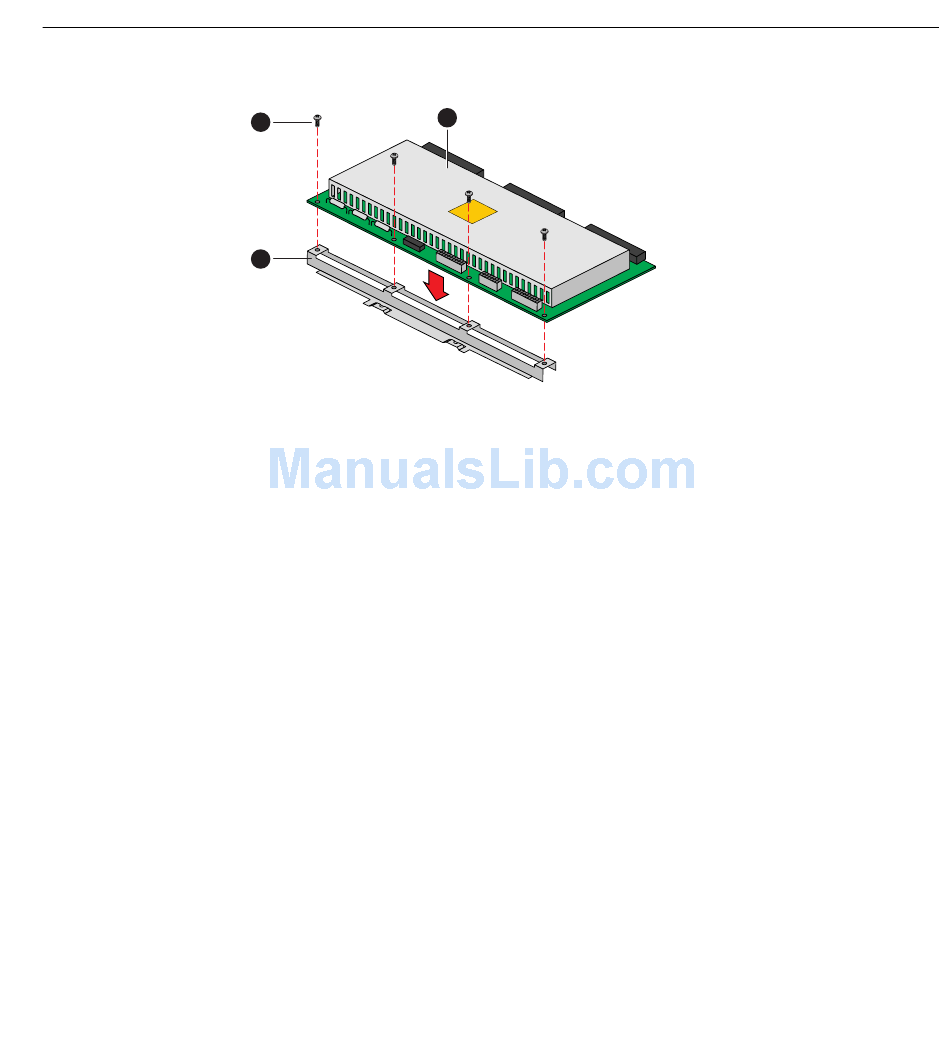

Figure 1-16
Attaching the New Board to its Bracket
The components shown in Figure 1-16 are:
1.
Screws that attach the new board to the bracket
2. New PSB
3. Bracket
To reinstall the board and bracket assembly in the chassis:
1.
Connect the cables to the new PSB.
2. Reattach the electronics bay.
3. Connect the new PSB cables to the baseboard.
4. Reconnect the memory module.
5. Reinstall the front and rear foam covers.
6. Reinstall the access cover using the original screws.
7. Reinstall the power supplies.
8. Connect all AC power and peripheral device cables to the rear of the system.
9. Run the FRUSDR load utility to properly configure the upgraded system.
