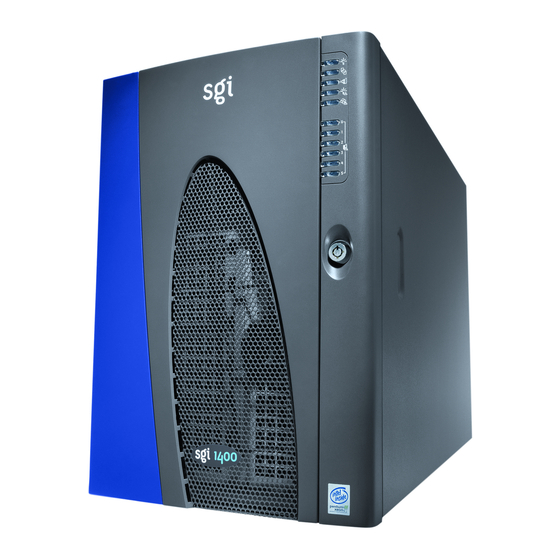

1400 Server Family
Maintenance and Upgrades Guide
Document Number 007-3948-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1400 Server Family and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silicon Graphics 1400 Server Family

Summary of Contents for Silicon Graphics 1400 Server Family

  • Page 1 ™ 1400 Server Family Maintenance and Upgrades Guide Document Number 007-3948-001...
  • Page 2 Contractor/manufacturer is Silicon Graphics, Inc., 1600 Amphitheatre Pkwy., Mountain View, CA 94043-1351. Silicon Graphics is a registered trademark and SGI and the Silicon Graphics logo are trademarks of Silicon Graphics, Inc. Pentium is a registered trademark and Xeon is a trademark of the Intel Corporation.

  • Page 3: Table Of Contents

    Contents List of Figures vii List of Tables ix About This Guide xiii Working Inside the System 1 Tools and Supplies Needed 1 Safety: Before You Remove the Access Cover 1 Warnings and Cautions 2 Removing the System Access Cover 3 Installing the Access Cover 3 Working in the Subchassis and Electronics Bay 5 Installing PCI Boards 7...
  • Page 4 Removing a VRM 51 Installing a VRM 52 Replacing the Backup Battery 53 SGI 1400 Server SCSI Backplane Installation 57 SCSI Backplane Warnings and Cautions 57 Safety: Before You Remove the Access Cover 57 General Procedure to Open the Chassis 57...
  • Page 5 Contents Technical Reference 65 Baseboard Connectors 65 Main Power Connector 68 Auxiliary Power 69 Diskette Drive Front Panel Connector 72 The SMM Connector 74 The IPMB Connector 75 VGA Video Port Connector 76 Keyboard and Mouse 77 Parallel Port 78 Serial Ports A and B 79 Universal Serial Bus 80 Narrow SCSI Connector 81...
  • Page 6 Contents Equipment Log and Configuration Worksheets 117 Equipment Log 117 Configuration Worksheets 120 Current Usage 120 Calculating Power Usage 120 Worksheet, Calculating DC Power Usage 121 Worksheet, Total Combined Power Used by the System 122 System Setup Utility (SSU) Worksheets 123 Adding and Removing Boards 123 ISA Board Definition 124 Baseboard (SSU, Change Configuration Settings) 125...

  • Page 7: List Of Figures

    List of Figures Removing the Access Cover 4 Figure 1-1 Opening the Subchassis and Electronics Bay 6 Figure 1-2 Installing a PCI option Board 8 Figure 1-3 Removing the Front Panel Board 10 Figure 1-4 Removing the Diskette Drive from the Chassis 11 Figure 1-5 IDE Cable Dimensions 13 Figure 1-6...
  • Page 8 List of Figures Replacing the Lithium Battery 54 Figure 2-11 Chassis Side View 58 Figure 3-1 Removing the Backplane from the Chassis 60 Figure 3-2 Aligning and Attaching the Backplane 61 Figure 3-3 Reconnecting Cables to the New Backplane 62 Figure 3-4 Baseboard Layout 66 Figure 4-1...
  • Page 9 List of Tables VRM and Processor Power Sequence 49 Table 2-1 Processor and VRM Population Sequencing 49 Table 2-2 Main Power Connector Pinouts 68 Table 4-1 Auxiliary Power Connector Pinouts 69 Table 4-2 Diskette Drive Connector Pinouts 70 Table 4-3 Front Panel Connector Pinouts 72 Table 4-4 Server Management Module Connector Pinouts 74...
  • Page 10 List of Tables Equipment Log 117 Table A-1 Power Usage Worksheet 121 Table A-2 Power Usage Worksheet (Total Watts) 122 Table A-3 Add or Remove PCI Boards 123 Table A-4 ISA Board Definition 124 Table A-5 Systems Group 125 Table A-6 Memory Subsystem Group 125 Table A-7 Onboard Disk Controllers 125...
  • Page 11 List of Tables Boot Device Priority Submenu 135 Table A-32 Hard Drive Submenu 135 Table A-33 Environmental Specifications 137 Table B-1...

  • Page 13: About This Guide

    Only trained or qualified technical personnel should work inside the chassis. Information on the server’s system setup utility (SSU) and replacement of external Note: devices are covered in the SGI 1400 Server Family User’s Guide. The following topics are covered in this manual: •...

  • Page 15: Working Inside The System

    Chapter 1 Working Inside the System Tools and Supplies Needed • Phillips (cross-head) screwdriver (#1 and #2 bit). • Small flat-bladed screwdriver. • Jumper removal tool or needle-nosed pliers. • Antistatic wrist strap and conductive foam pad (recommended). • Pen or pencil. •...

  • Page 16: Warnings And Cautions

    Chapter 1: Working Inside the System Warnings and Cautions These warnings and cautions apply whenever you remove the access cover of the system. Only a technically qualified person should integrate and configure the system. Warning: : The on/off button on the front panel DOES NOT YSTEM POWER ON turn off the system AC power.

  • Page 17: Removing The System Access Cover

    Removing the System Access Cover Removing the System Access Cover You need to remove the system access cover, and in some cases the front bezel, to reach components inside the system. Facing the front of the system, the access cover is on the right side for pedestal-mounted (tower) servers, and on the top for rack-mounted servers.

  • Page 18: Figure 1-1 Removing The Access Cover

    Chapter 1: Working Inside the System 5. Connect all external cables and the power cords to the system. Figure 1-1 Removing the Access Cover...

  • Page 19: Working In The Subchassis And Electronics Bay

    Working in the Subchassis and Electronics Bay Working in the Subchassis and Electronics Bay The chassis is comprised of three parts: • the main chassis • a swing-out subchassis at the front • a swing-out subchassis, called the electronics bay, at the rear To access components in some instances, you must swing away and/or completely remove the subchassis and electronics bay.

  • Page 20: Figure 1-2 Opening The Subchassis And Electronics Bay

    Chapter 1: Working Inside the System 10. Using the vertical edge of the electronics bay as a handle, rotate the bay right, away from the main chassis, until it stops. 11. If necessary, completely remove the subchassis and electronics bay: this requires rotating the bays outward until the two pins that function as hinges for the bays slide out of their slots.

  • Page 21: Installing Pci Boards

    Installing PCI Boards Installing PCI Boards The information in this section covers installation of optional PCI boards. Caution: Do not overload baseboard: Do not overload the baseboard by installing optional PCI boards that draw excessive current. Contact your sales or service representative if you are uncertain that a board is approved for installation in the server.

  • Page 22: Figure 1-3 Installing A Pci Option Board

    Chapter 1: Working Inside the System Installing a PCI option Board Figure 1-3 Components shown in Figure 1-3 are: PCI or ISA slot 2. Six PCI slots (top to bottom in figure = PCI B4, B3, B2, B1, A3, and A2) 3.

  • Page 23: Removing A Pci Option Board

    Removing a PCI option Board Removing a PCI option Board Slot covers must be installed on all vacant expansion slots. This maintains the Note: electromagnetic emissions characteristics of the system and ensures proper cooling of system components. Read and observe the safety and ESD precautions listed at the beginning of this chapter.

  • Page 24: Installing The Front Panel Board

    Chapter 1: Working Inside the System 6. Grasp the front panel board. Carefully pull it toward the back of the system until it pops off the snap-on standoff. 7. Disconnect the front panel board signal cable from the front panel board. 8.

  • Page 25: Removing The Diskette Drive

    Removing the Diskette Drive Removing the Diskette Drive Observe the safety and ESD precautions at the beginning of this chapter. 2. Remove the access cover. 3. Disconnect the power and signal cables from the diskette drive. The connectors are keyed for ease in reconnecting them to the drive, see Figure 1-5. 4.

  • Page 26: Installing The Diskette Drive

    Chapter 1: Working Inside the System Components shown in Figure 1-5 are: Power cable 2. Signal cable 3. Securing screw Installing the Diskette Drive Remove the new 3.5-inch diskette drive from its protective wrapper, and place it component-side up on an antistatic surface. Record the drive model and serial numbers in your equipment log.

  • Page 27: Peripheral Drives

    Peripheral Drives Peripheral Drives The following sections provide information on internally mounted drives and cables. Drive Cabling Considerations This section summarizes device cabling requirements and constraints. The number of devices you can install internally depends on: • The number supported by the bus •...

  • Page 28: Scsi Requirements

    Chapter 1: Working Inside the System SCSI Requirements One narrow and two wide SCSI cables are standard in the system. All SCSI devices must be unterminated except the peripheral at the end of the SCSI cable. Hard drives usually provide an active termination, while CD-ROM drives do not. Because we recommend putting hard drives only in the internal bays, this means that you should route the SCSI cable so that the last device on the cable is a hard drive in the internal bay.
  • Page 29 Peripheral Drives It is important that your cabling and connections meet the SCSI bus specification. Otherwise, the bus could be unreliable and data corruption could occur or devices might not work at all. The SCSI bus needs to be terminated at the end of the cable; this is usually provided by the last SCSI device on the cable.

  • Page 30: Figure 1-7 Removing Emi Shields

    Chapter 1: Working Inside the System Figure 1-7 Removing EMI Shields...

  • Page 31: Figure 1-8 Snap-In Plastic Slide Rails

    Peripheral Drives Snap-in Plastic Slide Rails Figure 1-8 The components shown in Figure 1-8 are: Tape drive or other removable media device 2. Tab on slide rail 3. Screws (quantity 4) 4. Slide rails (quantity 2) Complete the installation of the new 5.25-inch drive using the following steps: Position the drive so the plastic slide rails engage in the bay guide rails.

  • Page 32: Removing A 5.25-Inch Peripheral From The Front Bay

    Chapter 1: Working Inside the System 3. Connect a signal cable to the drive. The connectors are keyed and can be inserted in only one way. SCSI drive: Attach connectors on the cable to the SCSI device or devices you are installing.

  • Page 33: Figure 1-9 Removing A Removable Media Device

    Peripheral Drives Figure 1-9 Removing a Removable Media Device Components shown in Figure 1-9 are: Removable media device 2. Drive rail 3. Rail tab 4. Power cable 5. Typical SCSI signal cable...

  • Page 34: Installing Or Replacing The Scsi-B Cable

    Chapter 1: Working Inside the System Installing or Replacing the SCSI-B Cable The cable for channel B has two labels. The channel B cable connects from the SCSI-B connector on the baseboard to one of the external ports at the back of the server. If you are uncertain which connector on the baseboard is SCSI B, see Figure 4-1 in Chapter 4, “Technical Reference.”...

  • Page 35: Figure 1-10 Scsi-B Cable Installation

    Peripheral Drives 10. Reinstall the back foam cover. As you do, position the SCSI cable so that it routes to the electronics bay through the cutout in the back foam cover. The dotted arrow in Figure 1-10 shows where the cable must go. 11.

  • Page 36: System Fans

    6. SCSI knockout cover System Fans The SGI 1400 server contains eight removable chassis fans that cool the boards and removable media drives. These chassis fans connect to the front panel board and are enclosed in a removable foam assembly. The three integrated power supply fan(s) provide more cooling and airflow.

  • Page 37: Figure 1-11 Removing The Fan Assembly

    System Fans 5. Label and disconnect the individual fan cables from the front panel board. 6. Remove the fan assembly from the chassis. Figure 1-11 Removing the Fan Assembly...

  • Page 38: Installing The System Fan Assembly

    Chapter 1: Working Inside the System Installing the System Fan Assembly Observe the safety and ESD precautions at the beginning this chapter. 2. Position the fan assembly inside the chassis so that the individual fan cables can easily reach their connectors on the front panel board. 3.

  • Page 39: Figure 1-12 Fan Cabling

    System Fans The two installed fans nearest the 5.25-inch drive bays (fans 6 and 7) are separated Note: by a square piece of foam (the piece with a crescent-shaped hole) that extends perpendicularly from the front of the fans (it is the rectangle between the round faces of fans 6 and 7).

  • Page 40: Installing An Individual System Fan

    Chapter 1: Working Inside the System Installing an Individual System Fan Note: A general rule about correct airflow direction: The removable fan pulls air from in front of the chassis so that it flows across the boards and out the back. Thus, the fan must be oriented for the correct airflow direction.

  • Page 41: The Power Share Board

    The server comes with three power supplies already installed for highest power availability. If one supply fails, the system can operate using two until a replacement is installed. Your SGI 1400 system has a power share board (PSB). The PSB supports one to three supplies.

  • Page 42: Figure 1-13 Chassis Side View

    Chapter 1: Working Inside the System Figure 1-13 Chassis Side View The components shown in Figure 1-13 are: Front swing-out subchassis 2. Diskette drive 3. Main chassis 4. PSB 5. Power supplies...

  • Page 43: Figure 1-14 Removing The Existing Board And Bracket Assembly

    The Power Share Board 6. Baseboard (processor board) 7. Lift-out electronics bay 8. 5.25-inch device bay 9. SCSI hard drive bay 10. Foam fan housing 11. Front foam cover 12. Rear foam cover Power share board (PSB) Figure 1-14 Removing the Existing Board and Bracket Assembly The components shown in Figure 1-14 are: Screws that attach the bracket to the chassis 2.

  • Page 44: Figure 1-15 Removing The Existing Board From Its Bracket

    Chapter 1: Working Inside the System Removing the Existing Board from its Bracket Figure 1-15 The components shown in Figure 1-15 are: Screws that attach the existing board to the bracket 2. Existing PSB 3. Bracket To correctly position the new board inside the chassis: Insert the NON-BRACKET END, then push the other end down so that the two slots in the bracket slide over the corresponding tabs on the chassis wall.

  • Page 45: Figure 1-16 Attaching The New Board To Its Bracket

    The Power Share Board Figure 1-16 Attaching the New Board to its Bracket The components shown in Figure 1-16 are: Screws that attach the new board to the bracket 2. New PSB 3. Bracket To reinstall the board and bracket assembly in the chassis: Connect the cables to the new PSB.

  • Page 46: Figure 1-17 Installing The New Board And Bracket Assembly

    Chapter 1: Working Inside the System Figure 1-17 Installing the New Board and Bracket Assembly Components shown in Figure 1-17 are: Two screws that attach the bracket to the chassis 2. Two slots in the bracket that fit over two tabs on the chassis wall 3.

  • Page 47: Upgrading Baseboard Components

    Chapter 2 Upgrading Baseboard Components Use the information in this chapter to upgrade or replace components on the system baseboard (processor board). For information on tools needed, see Chapter 1. For a list of safety related information see “Safety: Before You Remove the Access Cover” on page 1. For a complete list of warnings and cautions regarding internal power, ESD, and proper system cooling, be sure to read “Warnings and Cautions”...
  • Page 48 Chapter 2: Upgrading Baseboard Components Observe the safety and ESD precautions at the beginning of this chapter. 2. Remove the access cover. 3. Remove the front and rear foam covers. 4. Label and disconnect all internal cables connected to add-in boards. 5.

  • Page 49: Installing The Baseboard

    Baseboard Figure 2-1 Removing the Baseboard Installing the Baseboard Observe the safety and ESD precautions at the beginning of this chapter. 2. Place the EMI gasket over the I/O connectors on the baseboard. 3. Position the board over the two snap-in standoffs and threaded standoffs inside the chassis;...

  • Page 50: Memory

    Note: degrade the performance of the server. See the SGI 1400 Server Family User’s Guide if you need more information on memory size and requirements. Use the following steps to remove a memory module: Read and observe all safety and ESD precautions listed at the beginning of Chapter 1.

  • Page 51: Figure 2-2 Removing The Memory Module

    Memory 4. Remove the memory module from the baseboard: Pull the module toward you slightly to disengage it from the baseboard connector. Slide the module straight away from the baseboard until it clears the guide rails. Place the module component-side up on a nonconductive, static-free surface. Figure 2-2 Removing the Memory Module...

  • Page 52: Installing The Memory Module

    Chapter 2: Upgrading Baseboard Components Installing the Memory Module Use the following steps to install or replace a memory module: Observe the safety and ESD precautions at the beginning of this chapter. 2. Holding the memory module by its edges, align the module so its edge engages in the guide rail at the back of the electronics bay.

  • Page 53: Installing Dimms

    DIMM slots on the memory module must be installed only in certain Note: configurations. See the SGI 1400 Server Family User’s Guide if you are uncertain of the configuration requirements. Use the following steps to install new DIMMs: Holding the DIMM only by its edges, remove it from its antistatic package.

  • Page 54: Processors

    Chapter 2: Upgrading Baseboard Components 10. Turn on the monitor and then the system. 11. Run the SSU to configure the system and to properly attribute ECC memory. Figure 2-3 Installing a DIMM Processors Use the information in the following sections to remove or install a processor in the server system.

  • Page 55: Removing A Processor

    Processors Reduce the risk of electrostatic discharge (ESD) damage to the processor by doing the following: • Touch the metal chassis before touching the processor or baseboard. • Keep part of your body in contact with the metal chassis to dissipate the static charge while handling the processor.

  • Page 56: Figure 2-4 Releasing The Retention Module Bracket

    Chapter 2: Upgrading Baseboard Components Releasing the Retention Module Bracket Figure 2-4 Components shown in Figure 2-4 are: Retention module bracket 2. Bracket tab 3. Latch...

  • Page 57: Figure 2-5 Removing A Processor

    Processors Removing a Processor Figure 2-5 Components shown in Figure 2-5 are: An S.E.C. cartridge 2. Retention module guide rails 3. Tabs on the S.E.C. cartridge 4. Processor heat sink...

  • Page 58: Installing A Processor

    Chapter 2: Upgrading Baseboard Components Installing a Processor Use Figure 2-6 and the following steps when installing a new or additional processor. If your system has less than four processors and you are adding one, then you Note: must remove the termination board in the empty Slot 2 connector. The procedure for removing a termination board is the same as for removing a processor.

  • Page 59: Figure 2-6 Installing A Processor

    Processors 7. Reinstall the foam cover. 8. Reinstall the access cover using the original screws. Installing a Processor Figure 2-6 Figure 2-6 shows the following components: S.E.C cartridge 2. Retention module guide rails 3. Tabs on the S.E.C. cartridge 4. Processor heat sink (must face away from center of baseboard)

  • Page 60: Installing The Processor Tabs

    Chapter 2: Upgrading Baseboard Components Installing the Processor Tabs Depending on your configuration, the tabs for the processor’s S.E.C. cartridge might not be attached to the cartridge. In this case, you must attach two tabs to each S.E.C. cartridge as directed in the following steps: Orient the tab as shown in Figure 2-7.

  • Page 61: Installing Processor Heatsinks

    Processors Installing Processor Heatsinks Depending on your configuration, the heatsink for each processor’s S.E.C. cartridge might not be attached to the cartridge. In this case, you must attach one heatsink to each S.E.C. cartridge. Use Figure 2-8 and the following steps: Remove the heatsink from its protective cover.

  • Page 62: Figure 2-8 Installing A Heatsink On A Processor S.e.c. Cartridge

    Chapter 2: Upgrading Baseboard Components Figure 2-8 Installing a Heatsink on a Processor S.E.C. Cartridge The locations shown in Figure 2-8 are: Processor S.E.C. Cartridge 2. Processor Connector 3. The heatsink edge that goes TOWARD the connector on the S.E.C. cartridge (the grease square is off-centered toward this edge) 4.

  • Page 63: Voltage Regulator Modules (Vrms)

    Voltage Regulator Modules (VRMs) Voltage Regulator Modules (VRMs) Up to six voltage regulator modules provide power for processors. Every processor requires 1.5 VRMs, so with four processors, you must use six VRMs. Table 2-1 shows this relationship. You must use a specific number and connector population sequence of VRMs for each combination of processors and termination boards.

  • Page 64: Figure 2-9 Processor And Corresponding Vrm Locations

    Chapter 2: Upgrading Baseboard Components Processor and Corresponding VRM Locations Figure 2-9 Components listed in Figure 2-9 are: Processor connector #4 2. Processor connector #3 3. Processor connector #2 4. Processor connector #1 5. VRM connector #6 (used for processor #4) 6.

  • Page 65: Removing A Vrm

    Voltage Regulator Modules (VRMs) 9. VRM connector #2 (used for processors #2 and #1) 10. VRM connector #1 (used for processor #1) Removing a VRM Use the following information and steps when removing a VRM. Caution: VRM must be appropriate: You might damage the system if you install a VRM that is inappropriate for your system.

  • Page 66: Installing A Vrm

    Chapter 2: Upgrading Baseboard Components Installing a VRM Use Figure 2-10 and the following steps to install a VRM on the system baseboard: Read and observe the ESD and other warnings listed in the previous section “Removing a VRM” on page 51. 2.

  • Page 67: Replacing The Backup Battery

    Replacing the Backup Battery Replacing the Backup Battery The lithium battery on the baseboard (Figure 2-11) powers the real-time clock (RTC) for three to four years in the absence of power. When the battery weakens, it loses voltage and the system settings stored in CMOS RAM in the RTC (e.g., the date and time) may be wrong.

  • Page 68: Figure 2-11 Replacing The Lithium Battery

    Chapter 2: Upgrading Baseboard Components Replacing the Lithium Battery Figure 2-11 Observe all the safety and ESD precautions at the beginning of Chapter 1 as well as the warnings given at the beginning of this section. 2. Remove the access cover. 3.
  • Page 69 Replacing the Backup Battery 6. Dispose of the battery according to local ordinance. 7. Remove the new lithium battery from its package and, being careful to observe the correct polarity, insert it in the battery socket. 8. Reinstall the plastic retainer on the lithium battery socket. 9.

  • Page 71: Sgi 1400 Server Scsi Backplane Installation

    Chapter 3 SGI 1400 Server SCSI Backplane Installation SCSI Backplane Warnings and Cautions The warnings and cautions listed a the beginning of Chapter 1 apply whenever you remove the access cover of the system. Only a technically qualified person should perform the upgrade installation described in the following sections.

  • Page 72: Figure 3-1 Chassis Side View

    Chapter 3: SGI 1400 Server SCSI Backplane Installation 3. Remove the front foam/fan assembly and rear foam cover. 4. Open the front subchassis. 5. Proceed to the next section to replace the SCSI backplane. Chassis Side View Figure 3-1...

  • Page 73: Replacing An Existing Backplane

    Replacing an Existing Backplane Components listed in Figure 3-1 are: Front swing-out subchassis 2. Diskette drive 3. Main chassis 4. Power share board 5. Power supplies 6. Baseboard 7. Lift-out electronics bay 8. 5.25-inch device bay 9. SCSI hard drive bay: backplane mounts to rear of bay 10.

  • Page 74: Figure 3-2 Removing The Backplane From The Chassis

    Chapter 3: SGI 1400 Server SCSI Backplane Installation 9. Replace all screws and covers. 10. Plug all drives back into the bay before powering the system on. Figure 3-2 Removing the Backplane from the Chassis Components shown in Figure 3-2 are: Attachment screw locations 2.

  • Page 75: Figure 3-3 Aligning And Attaching The Backplane

    Replacing an Existing Backplane Figure 3-3 Aligning and Attaching the Backplane Components shown in Figure 3-3 are: Backplane mounting notches 2. Backplane SCSI connector 3. Attachment screw locations...

  • Page 76: Figure 3-4 Reconnecting Cables To The New Backplane

    Chapter 3: SGI 1400 Server SCSI Backplane Installation Figure 3-4 Reconnecting Cables to the New Backplane Locations shown in Figure 3-4 are: Front panel cable 2. Peripheral power cable 3. SCSI Cable...

  • Page 77: General Procedure To Close The Chassis

    5. Reconnect all AC power and peripheral device cables to the rear of the system and to wall outlets. 6. Run the FRUSDR load utility to properly configure the system after adding new components. See Chapter 3 of the SGI 1400 Server Family User’s Guide.

  • Page 79: Technical Reference

    Chapter 4 Technical Reference This section includes: • Connectors’ pinouts and baseboard locations • Information on baseboard jumpers • System I/O Addresses • System memory map addresses • Baseboard interrupts • Video modes Baseboard Connectors Figure 4-1 shows connector locations on the baseboard. This section provides pin information about the connectors.

  • Page 80: Figure 4-1 Baseboard Layout

    Chapter 4: Technical Reference Baseboard Layout Figure 4-1 The baseboard (processor board) components are: Wide SCSI B connector (J9J1) 2. System jumpers (J6J1) 3. Hard drive input LED connector (J6J3) 4. System speaker connector (J6J2) 5. Lithium battery (B4H1) 6. Wake on LAN technology connector (J4H1) 7.
  • Page 81 Baseboard Connectors 8. PCI slots B4 (closest to ISA), B3, B2, B1, A3, and A2 (farthest from ISA) 9. Memory module connector (J3G1) 10. ICMB connector (J1E1) 11. PCI slot A1 (J2D1) 12. Video and parallel port connectors (J1C1) 13. Serial port connector (J1B2) 14.

  • Page 82: Main Power Connector

    Chapter 4: Technical Reference 35. ITP connector (J6G1) 36. Narrow SCSI connector (J9H1) 37. External IPMB connector (J7H1) 38. SMM connector (J8H1) 39. Wide SCSI A connector (J9H2) Main Power Connector Figure 4-2 shows the pins on the main power connector. Table 4-1 lists the pin signal and color.

  • Page 83: Auxiliary Power

    Baseboard Connectors Main Power Connector Pinouts Table 4-1 (continued) Signal Wire Color +3.3 VDC Orange Black Black Black +5V Standby Purple +5 VDC +5 VDC +5 VDC Auxiliary Power Figure 4-3 shows the auxiliary power connector. Table 4-2 lists the pin number and signal for each pin.

  • Page 84: Diskette Drive

    Chapter 4: Technical Reference Auxiliary Power Connector Pinouts Table 4-2 (continued) Signal SYS_PGOOD PS_ON -12VCC 12V_RS Diskette Drive Figure 4-4 shows the diskette drive connector. Table 4-3 lists the diskette drive connector pinouts. Figure 4-4 Diskette Drive Connector Diskette Drive Connector Pinouts Table 4-3 Signal FD_DENSEL...
  • Page 85 Baseboard Connectors Diskette Drive Connector Pinouts Table 4-3 (continued) Signal FD_MTR0_L FD_DR1_L FD_DR0_L FD_MTR1_L FD_MSEN1 FD_DIR_L FD_STEP_L FD_WDATA_L FD_WGATE_L FD_TRK0_L FD_MSEN0 FD_WPROT_L FD_RDATA_L FD_HDSEL_L...

  • Page 86: Front Panel Connector

    Chapter 4: Technical Reference Diskette Drive Connector Pinouts Table 4-3 (continued) Signal FD_DSKCHG_L Front Panel Connector A 30-pin connector attaches to the chassis front panel containing reset, NMI, sleep, and power control switches, LED indicators, and IPMB connection. Figure 4-5 shows the front panel connector.
  • Page 87 Baseboard Connectors Front Panel Connector Pinouts Table 4-4 (continued) Signal NMI_FP_L I2C_SCL RST_FP_L +5V standby PWR_CNTRL_FP_L FP_ISOL FAN_TACH(0) FAN_TACH(1) FAN_TACH(2) FAN_TACH(3) FAN_TACH(4) FAN_TACH(5) FAN_TACH(6) FAN_TACH(7) CLUSTER_LED reserved reserved reserved...

  • Page 88: The Smm Connector

    Chapter 4: Technical Reference The SMM Connector Figure 4-6 shows the server management module (SMM) connector. Table 4-5 lists the SMM connector pinouts. Server Management Module (SMM) Connector Figure 4-6 Server Management Module Connector Pinouts Table 4-5 Signal Description CPU_SMI_L System Management Interrupt LOCAL_I2C_SCL IPMB clock line...

  • Page 89: The Ipmb Connector

    Baseboard Connectors Server Management Module Connector Pinouts Table 4-5 (continued) Signal Description Reserved Reserved Ground Reserved Reserved Reserved Not used Reserved Key pin (N/C) Connector key Reserved The IPMB Connector Figure 4-7 shows the IPMB connector. Table 4-6 lists the IPMB pins and signals. The IPMB Connector Figure 4-7 IPMB Connector Pinouts...

  • Page 90: Vga Video Port Connector

    Chapter 4: Technical Reference VGA Video Port Connector Figure 4-8 shows the system’s VGA connector. Table 4-7 lists the pinouts for the VGA connector. Figure 4-8 VGA Video Port Connector Table 4-7 Video Port Connector Pinouts Signal Green Blue DDCDAT HSYNC VSYNC DDCCLK...

  • Page 91: Keyboard And Mouse

    Baseboard Connectors Keyboard and Mouse Figure 4-9 shows the keyboard and mouse connector. Table 4-8 lists the connector pinouts for the keyboard and mouse connectors. Figure 4-9 Keyboard and Mouse Connector The PS/2-compatible connectors share a common housing, but they are functionally equivalent.

  • Page 92: Parallel Port

    Chapter 4: Technical Reference Parallel Port Figure 4-10 shows the parallel port connection. Table 4-9 describes the parallel port connector pin signals. Figure 4-10 Parallel Port Connector Table 4-9 Parallel Port Connector Pinout Signal STROBE_L Data bit 0 Data bit 1 Data bit 2 Data bit 3 Data bit 4...

  • Page 93: Serial Ports A And B

    Baseboard Connectors Parallel Port Connector Pinout Table 4-9 (continued) Signal INIT_L SLCTIN_L 18−25 Serial Ports A and B Figure 4-11 shows the external serial port connector. Table 4-10 lists the serial port connector pin signals and functional descriptions. Figure 4-11 Serial Port A (External) Connector Table 4-10 Serial Port A (External) Connector Pinout...

  • Page 94: Universal Serial Bus

    Chapter 4: Technical Reference Universal Serial Bus The server provides a single, external Universal Serial Bus (USB) connector at the back panel (see Figure 4-12) and an internal header to be used with device bay expansion. Table 4-11 lists the pinouts for the external USB connector. Table 4-12 lists the pinouts for the internal USB header.

  • Page 95: Narrow Scsi Connector

    Baseboard Connectors Narrow SCSI Connector Figure 4-13 shows the server’s narrow SCSI connector. Table 4-13 lists the narrow SCSI connection pinouts. Figure 4-13 Narrow SCSI Connector Table 4-13 Narrow SCSI Connector Pinouts Signal SCD0_L SCD1_L SCD2_L SCD3_L SCD4_L SCD5_L SCD6_L...
  • Page 96 Chapter 4: Technical Reference Narrow SCSI Connector Pinouts Table 4-13 (continued) Signal SCD7_L SCDP_L RESERVED RESERVED TERMPWR RESERVED RESERVED SATN_L SBSY_L SACK_L...
  • Page 97 Baseboard Connectors Narrow SCSI Connector Pinouts Table 4-13 (continued) Signal SRESET_L SMSG_L SSEL_L SCD_L SREQ_L SIO_L...

  • Page 98: Wide Scsi Connector

    Chapter 4: Technical Reference Wide SCSI Connector Figure 4-14 shows the wide SCSI connector. Table 4-14 lists the wide SCSI pinouts and signal descriptions. Figure 4-14 Wide SCSI Connector Table 4-14 Wide SCSI Connector Pinouts Signal 1-16 TERMPWR TERMPWR Reserved 20-34 DB12_L DB13_L...
  • Page 99 Baseboard Connectors Wide SCSI Connector Pinouts Table 4-14 (continued) Signal DB6_L DB7_L DBP _L 49-50 TERMPWR TERMPWR Reserved ATN_L BSY_L ACK_L RST_L MSG_L SEL_L C/D_L REQ_L I/O_L DB8_L DB9_L DB10_L DB11_L...

  • Page 100: Internal Ide Connector

    Chapter 4: Technical Reference Internal IDE Connector Figure 4-15 shows the server’s internal IDE connector. Table 4-15 lists the connectors and signals for the internal IDE connector. If no IDE drives are present, no IDE cable should be connected. If only one IDE drive is installed, it must be connected at the end of the cable.
  • Page 101 Baseboard Connectors IDE Connector Pinouts Table 4-15 (continued) Signal DD15 Keyed IDEDRQ DIOW_L DIOR_L IORDY CSEL (1 KΩ p/d) IDEDAK_L IDEIRQ Reserved (N/C) IDESA1 PDIAG_L (tied to GND) IDESA0 IDESA2 IDECS1_L IDECS3_L...

  • Page 102: The Hard Drive Led Connector

    Chapter 4: Technical Reference IDE Connector Pinouts Table 4-15 (continued) Signal IDEHDACT_L The Hard Drive LED Connector Figure 4-16 shows the hard drive LED connector. Table 4-16 lists the pins and signals for the hard drive LED connector. Figure 4-16 Hard Drive LED Connector Hard Drive LED Connector Pinouts Table 4-16...

  • Page 103: Isa Connector Pinouts

    Baseboard Connectors ISA Connector Pinouts Table 4-17 lists the ISA connector pinouts and signal names. ISA Connector Pinouts Table 4-17 Signal IOCHK_L IOCHRDY SA19 SA18 SA17 SA16 SA15 SA14 SA13 SA12 SA11 SA10...
  • Page 104 Chapter 4: Technical Reference ISA Connector Pinouts Table 4-17 (continued) Signal RESET IRQ9 DRQ2 -12V SRDY_L +12V SMEMW_L SMEMR_L IOW_L IOR_L...
  • Page 105 Baseboard Connectors ISA Connector Pinouts Table 4-17 (continued) Signal DACK3_L DRQ3 DACK1_L DRQ1 REFRESH_L BCLK IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2_L BALE Connector SBHE_L LA23 LA22 LA21 LA20...
  • Page 106 Chapter 4: Technical Reference ISA Connector Pinouts Table 4-17 (continued) Signal LA19 LA18 LA17 MEMR_L MEMW_L SD10 SD11 SD12 SD13 SD14 SD15 Connector MEMCS16_L IOCS16_L IRQ10 IRQ11 IRQ12 IRQ15 IRQ14 DACK0_L DRQ0...

  • Page 107: The Pci Connectors

    Baseboard Connectors ISA Connector Pinouts Table 4-17 (continued) Signal DACK5_L DRQ5 DACK6_L DRQ6 DACK7_L DRQ7 MASTER16_L The PCI Connectors Table 4-18 provides the PCI connector pinouts and lists the signal value. The baseboard does not provide a PCI 3.3 V power connector. Only the 5 V PCI Note: signaling environment is supported, and no power is available at the 3.3 V signal pins in expansion slots.
  • Page 108 Chapter 4: Technical Reference PCI Connector Pinouts Table 4-18 (continued) Signal +5 V Reserved +5 V Reserved Reserved RST_L +5 V GNT_L Reserved AD30 +3.3 V * AD28 AD26 AD24 IDSEL +3.3 V * AD22 AD20 AD18...
  • Page 109 Baseboard Connectors PCI Connector Pinouts Table 4-18 (continued) Signal AD16 +3.3 V * FRAME_L TRDY_L STOP_L +3.3 V * SDONE SBO_L AD15 +3.3 V * AD13 AD11 C/BE0_L +3.3 V *...
  • Page 110 Chapter 4: Technical Reference PCI Connector Pinouts Table 4-18 (continued) Signal +5 V REQ64_L +5 V +5 V -12 V TD0 (NC) +5 V +5 V INTB_L INTD_L PRSNT1_L Reserved PRSNT2_L Reserved PCICLK...
  • Page 111 Baseboard Connectors PCI Connector Pinouts Table 4-18 (continued) Signal REQ_L +5 V AD31 AD29 AD27 AD25 +3.3 V * C/BE3_L AD23 AD21 AD19 +3.3 V * AD17 C/BE2_L IRDY_L +3.3 V * DEVSEL_L LOCK_L PERR_L +3.3 V *...
  • Page 112 Chapter 4: Technical Reference PCI Connector Pinouts Table 4-18 (continued) Signal SERR_L +3.3 V * C/BE1_L AD14 AD12 AD10 +3.3 V * +5 V ACK64_L +5 V +5 V...

  • Page 113: Baseboard Jumpers

    Baseboard Jumpers Baseboard Jumpers One 11-pin single inline header provides three 3-pin jumper blocks that control various configuration options. Figure 4-17 shows the location. Items shown in bold in Table 4-19 show default placement for each configurable option. J6J1 Baseboard Jumpers Figure 4-17...

  • Page 114: General Procedure To Change A Jumper Setting

    Chapter 4: Technical Reference Table 4-19 Baseboard Jumper Summary Function Pins (default in bold) What it does at system reset CMOS clear 1-2, BMC Control Preserves the contents of NVRAM. 2-3, Force Erase Replaces the contents of NVRAM with the manufacturing default settings.

  • Page 115: Cmos Clear Jumper

    10. Run BIOS Setup or the SSU to verify the correct settings. See Chapter 3 in the SGI 1400 Server Family User’s Guide. Password Clear Jumper The jumper at pins 5, 6, and 7 controls whether a stored password is retained or cleared during a system reset.

  • Page 116: Recovery Boot Jumper

    8. Reinstall the access cover using the original screws, and connect the power cords to the system. 9. Run the SSU to specify a new password. See Chapter 3 in the SGI 1400 Server Family User’s Guide. Recovery Boot Jumper The jumper at pins 9, 10, and 11 controls whether the system attempts to boot using the BIOS programmed in flash memory.

  • Page 117: Table 4-20 Bios Recovery Beep Codes

    3. Replace the access cover, remove the diskette from drive A, and connect the power cords to the system. 4. After running the special recovery mode, run the SSU to specify a new password. See Chapter 3 in the SGI 1400 Server Family User’s Guide.

  • Page 118: System I/O Addresses

    Chapter 4: Technical Reference System I/O Addresses Table 4-21 shows the location in I/O space of all directly I/O-accessible registers. Table 4-21 System I/O Addresses Address(es) Resource Device Notes 0000h - 000Fh DMA Controller 1 PIIX4E 0010h - 001Fh DMA Controller 1 PIIX4E Aliased from 0000h - 000Fh 0020h - 0021h...
  • Page 119 System I/O Addresses System I/O Addresses Table 4-21 (continued) Address(es) Resource Device Notes 0054h - 005Fh 0060h, 0064h Keyboard Controller Keyboard chip select from 87307 0061h NMI Status & Control PIIX4E Register 0063h NMI Status & Control PIIX4E Aliased Register 0065h NMI Status &...
  • Page 120 Chapter 4: Technical Reference System I/O Addresses Table 4-21 (continued) Address(es) Resource Device Notes 0093h - 009Fh DMA Low Page Register PIIX4E (aliased) 0094h Video Display Controller 00A0h - 00A1h Interrupt Controller 2 PIIX4E 00A4h - 00A15 Interrupt Controller 2 PIIX4E (aliased) 00A8h - 00A19...

  • Page 121: Table 4-21 System I/O Addresses

    System I/O Addresses System I/O Addresses Table 4-21 (continued) Address(es) Resource Device Notes 01F0h - 01F7h Primary Fixed Disk PIIX4E Controller (IDE) 0200h - 0207h Game I/O Port Not used 0220h - 022Fh Serial Port A 0238h - 023Fh Serial Port B 0278h - 027Fh Parallel Port 3 02E8h - 02Efh...

  • Page 122: Memory Map Address Range

    Chapter 4: Technical Reference System I/O Addresses Table 4-21 (continued) Address(es) Resource Device Notes 0678h - 067Ah Parallel Port (ECP) 0778h - 077Ah Parallel Port (ECP) 07BCh - 07BEh Parallel Port (ECP) 0CA0 - CA3h BMC Registers 0CF8h PCI CONFIG_ADDRESS Located in 450NX Register 0CF9h...

  • Page 123: Interrupts

    Interrupts Interrupts Table 4-23 recommends the logical interrupt mapping of interrupt sources; it reflects a typical configuration, but these interrupts can be changed by the user. Use the information to determine how to program each interrupt. The actual interrupt map is defined using configuration registers in the PIIX4E and the I/O controller.

  • Page 124: Video Modes

    Chapter 4: Technical Reference Interrupt I/O Descriptions Table 4-23 (continued) Interrupt I/O APIC level Description IRQ12 INT12 Mouse interrupt INT13 IRQ14 INT14 Compatibility IDE interrupt from primary channel IDE devices 0 and 1 IRQ15 INT15 SMI_L System management interrupt—general purpose indicator sourced by the PIIX4E and BMC through the PID to the processors Video Modes...

  • Page 125: Table 4-25 Extended Vga Modes

    Video Modes Standard VGA Modes Table 4-24 (continued) Mode(s) Bits per Colors (no per Resolution Pixel Freq. Horizontal Vertical Freq. in Hex pixel palette size) (MHz) Freq. (kHz) (Hz) 16/256K 640 X 350 31.5 2/256K 640 X 480 31.5 16/256K 640 X 480 31.5 16/256K...
  • Page 126 Chapter 4: Technical Reference Extended VGA Modes Table 4-25 (continued) Mode(s) Bits per Colors Resolution Pixel Freq. Horiz. Freq. Vert. Freq. Memory in Hex pixel (MHz) (KHz) (Hz) 16/256K 1024 X 768 78.7 256/256K 640 X 400 31.5 256/256K 640 X 480 31.5 256/256K 640 X 480...
  • Page 127 Video Modes Extended VGA Modes Table 4-25 (continued) Mode(s) Bits per Colors Resolution Pixel Freq. Horiz. Freq. Vert. Freq. Memory in Hex pixel (MHz) (KHz) (Hz) 800 X 600 68.2 63.6 640 X 480 31.5 640 X 480 31.5 37.9 640 X 480 31.5 37.5...
  • Page 128 Table 4-25 (continued) Extended VGA Modes Mode(s) Bits per Colors Resolution Pixel Freq. Horiz. Freq. Vert. Freq. Memory in Hex pixel (MHz) (KHz) (Hz) 256/256K 1280 X 1024 157.5 1152 X 864 94.5 63.9 1152 X 864 67.5 1152 X 864 121.5 76.7 1152 X 864...
  • Page 129 Video Modes Extended VGA Modes Table 4-25 (continued) Mode(s) Bits per Colors Resolution Pixel Freq. Horiz. Freq. Vert. Freq. Memory in Hex pixel (MHz) (KHz) (Hz) 256/256K 1600 X 1200 135 62.5 (interlaced) 256/256K 1600 X 1200 162 256/256K 1152 X 864 94.5 63.9 256/256K...

  • Page 131: Equipment Log And Configuration Worksheets

    Appendix A Equipment Log and Configuration Worksheets Equipment Log Use the blank equipment log provided here (Table A-1) to record information about your system. You will need some of this information when you run the SSU. Table A-1 Equipment Log Item Manufacturer Name and Model Number Serial Number...
  • Page 132 Appendix A: Equipment Log and Configuration Worksheets Equipment Log Table A-1 (continued) Item Manufacturer Name and Model Number Serial Number Date Installed Hard disk drive 1 Hard disk drive 2 Hard disk drive 3 Hard disk drive 4 Hard disk drive 5 SCSI host adapter board 1...
  • Page 133 Equipment Log Equipment Log Table A-1 (continued) Item Manufacturer Name and Model Number Serial Number Date Installed...

  • Page 134: Configuration Worksheets

    Circle or write in your selections or the values that are displayed onscreen. Current Usage As all SGI 1400 servers come equipped with three power supplies standard, power usage is not generally a critical consideration. The system administrator or service person may wish to calculate system power usage for other reasons.

  • Page 135: Worksheet, Calculating Dc Power Usage

    Current Usage Worksheet, Calculating DC Power Usage List the current for each board and device in the appropriate voltage level column of Table A-2. 2. Add the currents in each column. Then go to the next worksheet. Table A-2 Power Usage Worksheet Device, by Current (maximum) +3.3 V +5 V...

  • Page 136: Worksheet, Total Combined Power Used By The System

    Appendix A: Equipment Log and Configuration Worksheets Worksheet, Total Combined Power Used by the System From the previous worksheet, enter the total current for each column. 2. Multiply the voltage by the total current to get the total wattage for each voltage level as indicated in Table A-3.

  • Page 137: System Setup Utility (Ssu) Worksheets

    System Setup Utility (SSU) Worksheets System Setup Utility (SSU) Worksheets This section provides worksheets for tracking changes made using the SSU. Adding and Removing Boards Table A-4 provides PCI board information. Add or Remove PCI Boards Table A-4 Baseboard PCI Host Bridge Device Bus 0 Dev 0 PCI SCSI Device Bus 0 Dev B...

  • Page 138: Isa Board Definition

    Appendix A: Equipment Log and Configuration Worksheets ISA Board Definition If you have an ISA board with no.CFG file, you can define the board by using the SSU. It is necessary to define an ISA board only when you want to prevent other boards in the system from using the same IRQ levels, DMA channels, I/O Port addresses, or Memory addresses that your ISA board uses.

  • Page 139: Baseboard (Ssu, Change Configuration Settings)

    System Setup Utility (SSU) Worksheets Baseboard (SSU, Change Configuration Settings) Systems Group Table A-6 System Identification and Version Information SSU Configuration File Version MP Spec. Version 1.1 / 1.4 Processor Speed Setting Table A-7 Memory Subsystem Group Onboard Disk Controllers Onboard Communication Devices Enable / Disable Onboard Disk Controllers...

  • Page 140: Table A-9 Onboard Communications Devices

    Appendix A: Equipment Log and Configuration Worksheets Table A-9 Onboard Communications Devices Serial Port 1 Configuration Serial Port 2 Configuration Serial Port 2 Mode Parallel Port Configuration Parallel Port Mode Diskette Drive Subsystems Group Table A-10 Diskette drive A Options Diskette drive B Options IDE Subsystem Group Table A-11...

  • Page 141: Table A-12 Multiboot Group

    System Setup Utility (SSU) Worksheets Table A-12 Multiboot Group Boot Device Priority Diskette Drive Removable Devices Hard Drive ATAPI CD-ROM Drive Diagnostic Boot Keyboard and Mouse Subsystem Group Table A-13 Typematic Delay 250 ms delay / 500 ms delay 750 ms delay / 1000 ms delay Typematic Speed 30 CPS / (other) Mouse Control option...

  • Page 142: Table A-15 Security Subsystems Worksheet

    Appendix A: Equipment Log and Configuration Worksheets Table A-15 Security Subsystems Worksheet Administrative Password Disable / Enable User Password Disable / Enable Secure Mode Hot-Key None / Ctrl-Alt-{ } Lockout Timer Disable / { } minutes Secure Boot Mode Disable / Enable Video Blanking Disable / Enable Diskette Writes...

  • Page 143: Management Subsystem, System Sensor Control Worksheet

    System Setup Utility (SSU) Worksheets Management Subsystem, System Sensor Control Worksheet For each sensor control, the display includes the choices shown below, with blanks for entering values. Write in both the sensor control and the values you select. This group of tabular worksheets provides space for a number of sensor controls;...

  • Page 144: Table A-20 Primary Master And Slave Submenu

    Appendix A: Equipment Log and Configuration Worksheets Main Menu Table A-19 (continued) Hard Disk Pre-delay Disabled / 3 / 6 / 9 / 12 / 15 / 21 / 30 Language English Spanish Italian French German Table A-20 Primary Master and Slave Submenu Type Auto / None / CD-ROM / IDE Removable ATAPI Removable / User...

  • Page 145: Table A-22 Advanced Menu

    System Setup Utility (SSU) Worksheets Table A-22 Advanced Menu Plug and Play OS Yes / No Reset Configuration Data Yes / No Use Multiprocessor Specification 1.1 / 1.4 Large Disk Access Mode LBA / CHS Pause Before Boot Enabled / Disabled PCI Device, Embedded SCSI Submenu Table A-23 Option ROM Scan...

  • Page 146: Table A-25 I/O Device Configuration Submenu

    Appendix A: Equipment Log and Configuration Worksheets Table A-25 I/O Device Configuration Submenu Serial Port A Disabled / Enabled / Auto / OS Controlled Base I/O Address 3F8h / 2F8h / 3E8h / 2E8h Interrupt 4 / 3 Serial Port B Disabled / Enabled / Auto / OS Controlled Mode Normal / IrDA/ ASK-IR...

  • Page 147: Table A-26 Advanced Chipset Control Submenu

    System Setup Utility (SSU) Worksheets Table A-26 Advanced Chipset Control Submenu Address Bit Permuting Disabled / Auto Base RAM Step 1 MB / 1 KB / Every location Extended RAM Step 1 MB / 1 KB / Every location L2 Cache Enabled / Disabled ISA Expansion Aliasing Enabled / Disabled...

  • Page 148: Table A-28 Server Menu

    Appendix A: Equipment Log and Configuration Worksheets Table A-28 Server Menu Processor Retest No / Yes System Management Submenu Table A-29 Server Management Mode Disabled / Enabled System Event Logging Disabled / Enabled Clear Event Log Disabled / Enabled Assert NMI on AERR Disabled / Enabled Assert NMI on BERR Interrupt Routing Disabled / Enabled...

  • Page 149: Table A-31 Boot Menu

    System Setup Utility (SSU) Worksheets Table A-31 Boot Menu Floppy Check Disabled / Enabled Multi-boot Support Disabled / Enabled Maximum No. of I2O Drives 1 / 4 Message Timeout Multiplier 1 / 2 / 8 / 10 / 50 / 100 / 1000 Table A-32 Boot Device Priority Submenu Boot Priority 1...

  • Page 151: Environmental Specifications

    Appendix B Environmental Specifications Environmental Specifications Table B-1 lists the server’s environmental specifications. Table B-1 Environmental Specifications Temperature Nonoperating –40 ˚C to 70 ˚C (–55 ˚F to 150 ˚F) Operating 10 ˚C to 35 ˚C (41 ˚F to 95 ˚F); derated 0.5 ˚C for every 1000 ft (305 m) Altitude to 10,000 ft max;...

  • Page 153: Chassis Warnings And Safety

    Appendix C Chassis Warnings and Safety The following sections contain general chassis and power related safety warnings. Power Warnings The power supply in this product contains no user-serviceable parts. There may be more than one supply in this product. Servicing is done only by qualified personnel. Do not attempt to modify or use the supplied AC power cord if it is not the exact type required.
  • Page 154 Appendix C: Chassis Warnings and Safety 5. Provide some electrostatic discharge (ESD) protection by wearing an antistatic wrist strap attached to chassis ground of the system—any unpainted metal surface— when handling components. 6. Do not operate the system with the chassis covers removed. After you have completed the six safety steps above, you can remove the system covers.
  • Page 155 Cautions When Removing the Chassis Covers The system is designed to operate in a typical lab, server room, or office environment. Choose a site that is: • Clean and free of airborne particles (other than normal room dust). • Well ventilated and away from sources of heat including direct sunlight. •...

  • Page 157: Index

    Index battery disposing of safely access cover installing installing removing removing bus termination requirements, SCSI devices add-in board expansion slot cover 7, 9 removing running SSU after installing or removing ISA board cables sensitive to ESD routing for removable media bays address Caution avoid damaging jumpers when changing...
  • Page 158 Index connector auxiliary power signals diskette drive ECC memory, run SSU to configure front electromagnetic interference electronics bay IPMB removing electrostatic discharge locations parallel gasket for I/O connectors 34, 35 grounding clip, removable media SCSI limit use of 5.25-inch hard drives serial metal shield, removing/installing 15, 18...
  • Page 159 Index front panel connectors on baseboard jumpers front panel control board CMOS clear installing board do not damage when changing location of board in chassis location on baseboard removing board password recovery boot gasket, EMI protection at I/O connectors 34, 35 grounding clip, removable media drives lithium backup battery disposing of safely...
  • Page 160 Index removable media bays grounding clip password installing drive retaining at system reset installing drive slide rails installing metal EMI shield over empty bay 15, 18 limiting use of hard drives connectors on baseboard removing drive installing add-in board routing cables interrupt mapping removing add-in board removing foam covers...
  • Page 161 Index tabs installing on S.E.C. cartridge termination board removing or installing tools and equipment selecting the correct VRM use grounded, static-free surface VRMs installing removing Warning components might be hot disconnect power cords, cables dispose of lithium battery safely no user-serviceable parts, power supply power on/off switch 1, 2 worksheet...

This manual is also suitable for:

1400 series

Table of Contents
