Chapter 4: Technical Reference
78

Parallel Port

Figure 4-10 shows the parallel port connection. Table 4-9 describes the parallel port
connector pin signals.
13
25

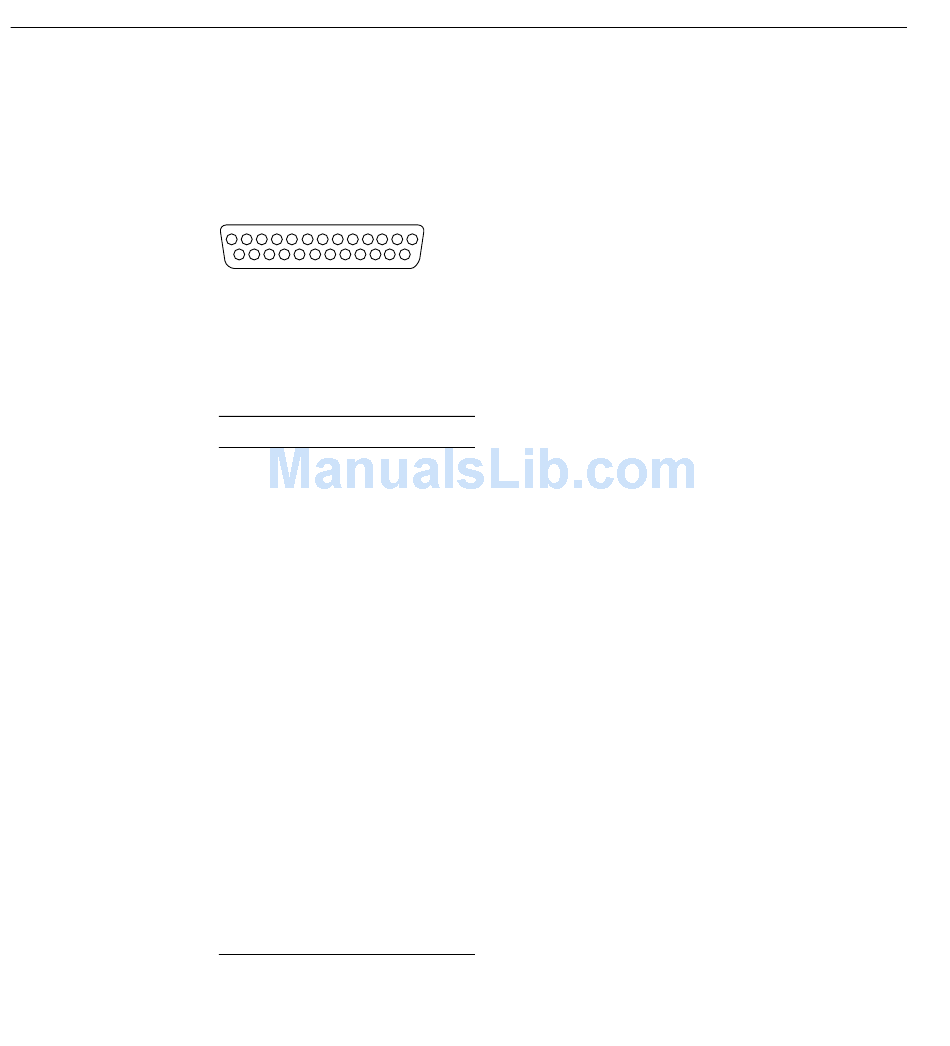

Figure 4-10
Parallel Port Connector
Table 4-9
Parallel Port Connector Pinout
Pin
Signal
1
STROBE_L
2
Data bit 0
3
Data bit 1
4
Data bit 2
5
Data bit 3
6
Data bit 4
7
Data bit 5
8
Data bit 6
9
Data bit 7
10
ACK_L
11
Busy
12
PE
13
SLCT
14
AUFDXT_L
15
ERROR_L
1
14
