.:. Note: When you paste segments into the graph, it
will eventually lengthen beyond the right edge of the
sound graph window. Use full View to see the
entire graph .
Oscilloscope
Choose Oscilloscope to set your input le\'els before
recording. The Oscilloscope gives you real-time feedback in
response to your input. Usc the Input Level bar or the MIC
Level bar on the box to change your record level. You can
also reset your 0 point to adjust for your particular card. With
no input to the card, the zero level should be fairly straight
across the middle line on the oscilloscope grid.
@
Left Channel
o
Right Channe I
1m [JC)
Zm Adjust
I I 0 I I

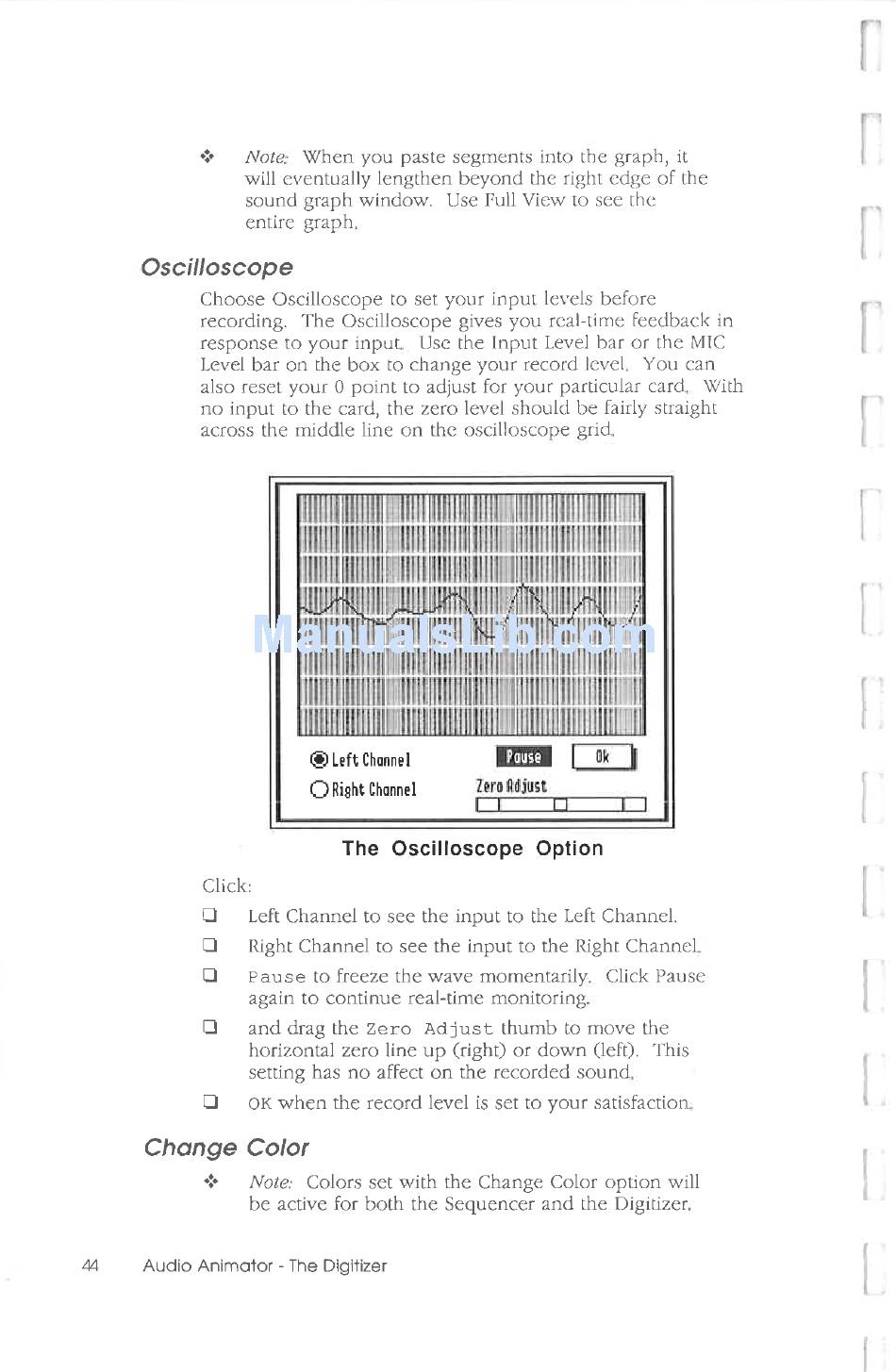

The Oscilloscope Option
Click:
o
Left Channel to see the input to the Left Channel.
o
Right Channel to see the input to the Right Channel.
o
Pause to freeze the wave momentarily. Click Pause
again to continue real-time monitoring.
o
and drag the Zero Adjust thumb to move the
horizontal zero line up (right) or down (left). This
setting has no affect on the recorded sound.
o
OK
when the record level is set to your satisfaction.
Change Color
.:. Note: Colors set with the Change Color option will
be active for both the Sequencer and the Digitizer.
