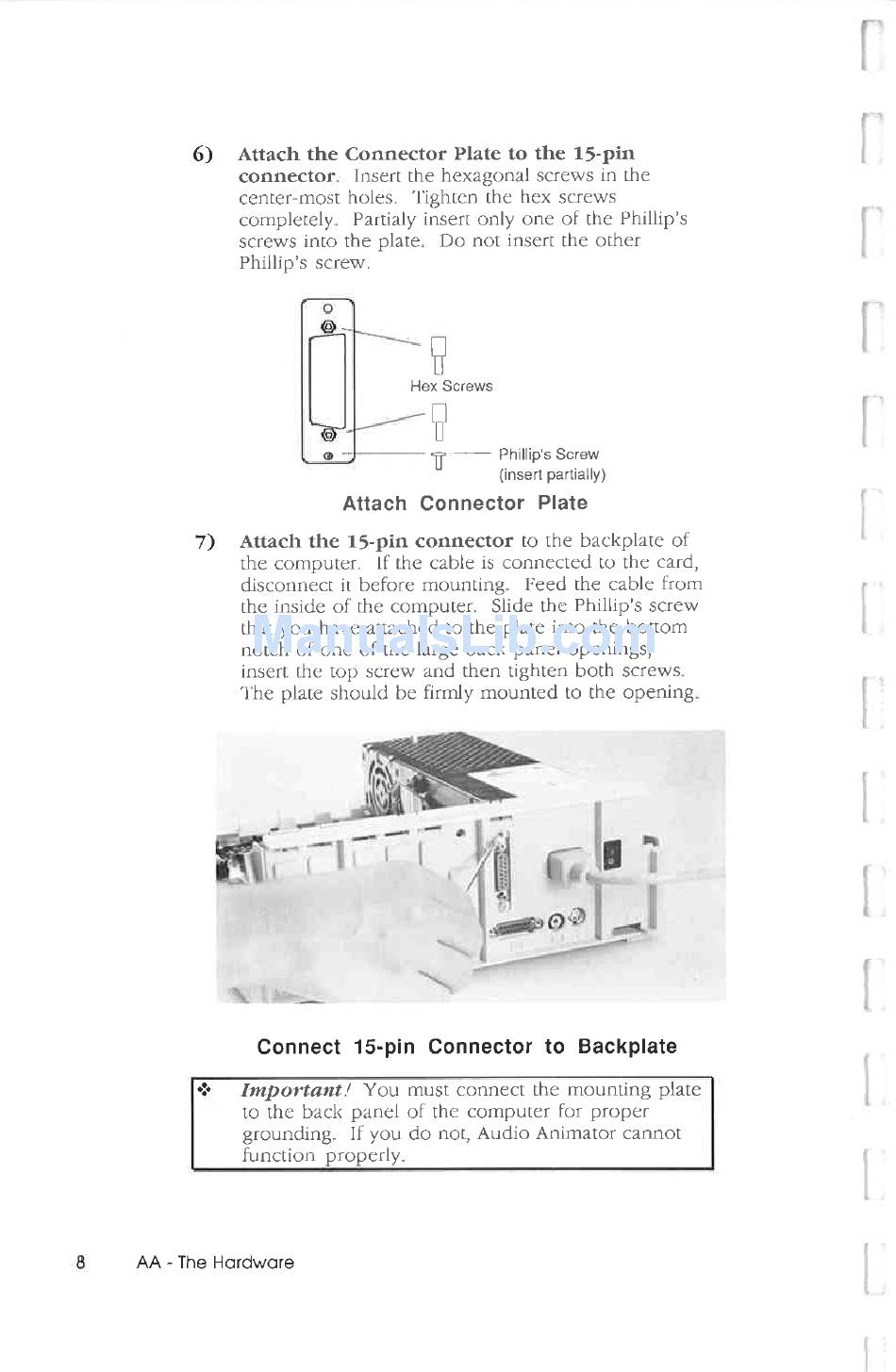

6) Attach the Connector Plate to the 15-pin
connector. Insert the hexagonal screws in the
center-most holes. Tighten the hex screws
completely. Partialy insert only one of the Phillip's
screws into the plate. Do not insert the other
Phillip's screw.
o
o
Hex Screws
(J -
1J
~- Phillip's Screw
(insert partially)
Attach Connector Plate
7) Attach the 15-pin connector to the backplate of
the computer. If the cable is connected
to
the card,
disconnect it before mounting . Feed the cable from
the inside of the computer. Slide the Phillip's screw
that you have attached to the plate into the bottom
notch of one of the large back panel openings,
insert the top screw and then tighten both screws.
The plate should be firmly mounted to the opening .
Connect 1S-pin Connector to Backplate
.:. Importanti You must connect the mounting plate
to the back panel of the computer for proper
grounding. If you do not, Audio Animator cannot
function properly.
8 AA - The Hardware
