Repetitive Play, Volume And Rate - Applied Engineering AUDIO ANIMATOR User Manual

--I
-M O.
J]
~
Left Yolulle
..
,.;-
I I C I I
Stop
Phs Pause Record
Rieht Vol um!
I
I
U
I I
I
10_611
~
U
Playback Sample Rot!: 22611 H z
@YUOn
I I 01 I
Record
S' o ~ple
Role:
226H
Hz
OVUDff
I I
l:l I
/
..
.
.,
Ploy Till!:
0
@SlnglePlau OContinuous P Joy Ho~
Block:
0.0
I
Select:
866 k Resalution:
0: 1

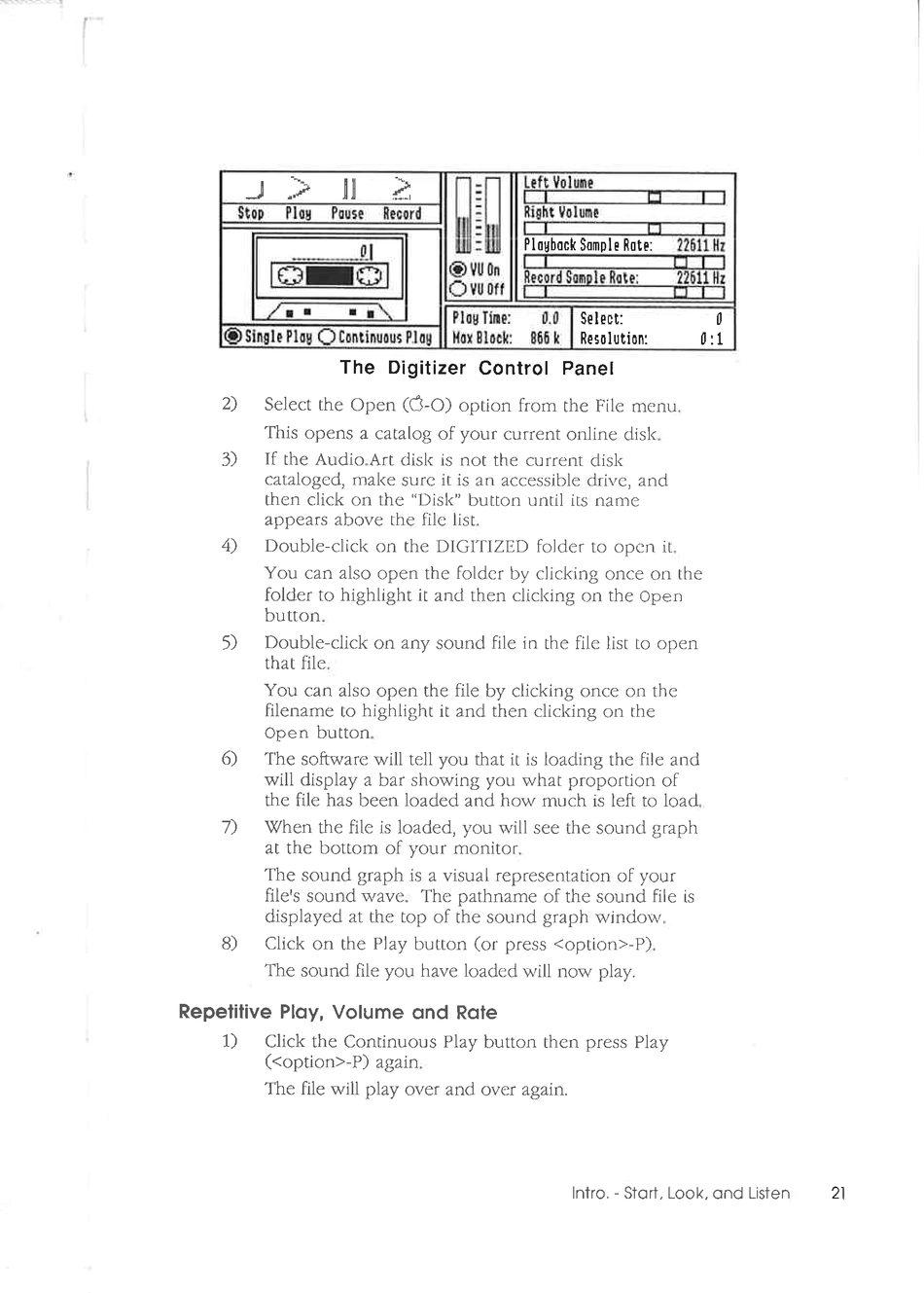

The Digitizer Control Panel
2) Select the Open
(c5-0)
option from the File menu.
This opens a catalog of your current online disk.
3)
If the Audio.Art disk is
not the current disk
cataloged, make sure it is an accessible drive, and
then click on the "Disk" button until its name
appears above the file list.
4) Double-click on the DIGITIZED folder to open it.
You can also open the folder by clicking once on the
folder to highlight it and then clicking on the
Open
button.
S) Double-click on any sound file in the file list to open
that file.
You can also open the file by clicking once on the
filename to highlight it and then clicking on the
Open
button.
6) The software will tell you that it is loading the file and
will display a bar showing you what proportion of
the file has been loaded and how much is left to load.
7) When the file is loaded, you will see the sound graph
at the bottom of your monitor.
The sound graph is a visual representation of your
file's sound wave. The pathname of the sound file is
displayed at the top of the sound graph window .
8) Click on the Play button (or press <option>-P).
The sound file you have loaded will now play.
Repetitive Play, Volume and Rate
1) Click the Continuous Play button then press Play
«option>-P) again.
The file will play over and over again.
I
Intra. - Start. Look. and Listen 21
