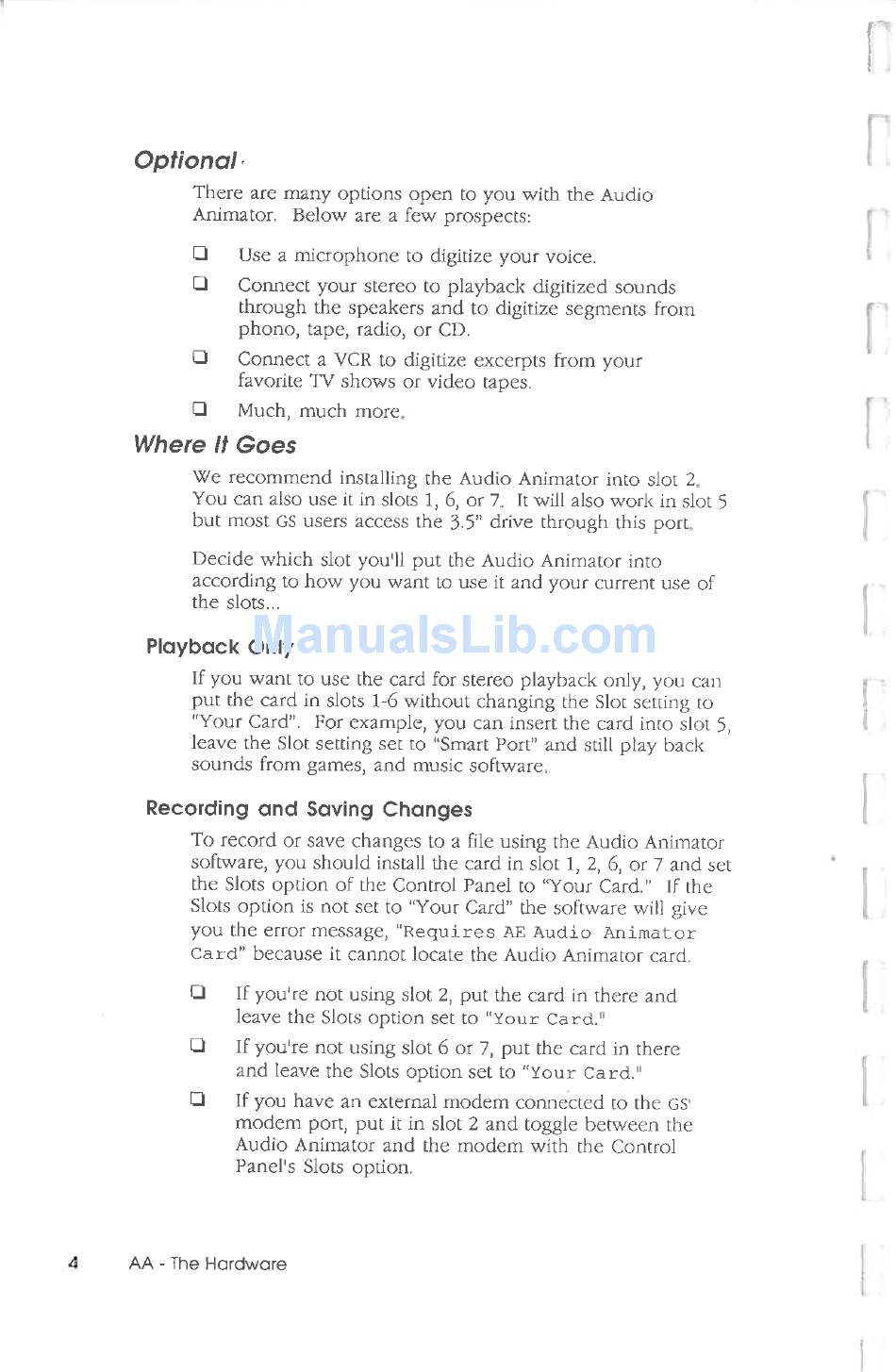

Optional; Where It Goes - Applied Engineering AUDIO ANIMATOR User Manual

Optional·
There are many options open to you with the Audio
Animator. Below are a few prospects:
o
Use a microphone to digitize your voice.
o
Connect your stereo to playback digitized sounds
through the speakers and to digitize segments from
phono, tape, radio, or CD.
o
Connect a VCR to digitize excerpts from your
favorite TV shows or video tapes.
o
Much, much more.
Where It Goes
We recommend installing the Audio Animator into slot 2
You can also use it in slots 1, 6, or 7. It will also work in slot 5
but most GS users access the 3.5" drive through this port.
Decide which slot you'll put the Audio Animator into
according to how you want to use it and your current use of
the slots ...
Playback Only
If you want to use the card for stereo playback
only, you can
put the card in slots 1-6 without changing the Slot setting to
"Your Card". For example, you can insert the card into slot 5,
leave the Slot setting set to "Smart Port" and still play back
sounds from games, and music software.
Recording and Saving Changes
To record or save changes to a file using the Audio Animator
software, you should install the card in slot 1, 2,
6,
or 7 and set
the Slots option of the Control Panel to "Your Card." If the
Slots option is not set to "Your Card" the software will give
you the error message, "Requires AE Audio Animator
Card" because it cannot locate the Audio Animator card.
o
If you're not using slot 2, put the card in there and
leave the Slots option set to "Your Card."
o
If you're not using slot 6 or 7, put the card in there
and leave the Slots option set to "Your Card."
o
If you have an external modem connected to the GS'
modem port, put it in slot 2 and toggle between the
Audio Animator and the modem with the Control
Panel's Slots option.
4 AA - The Hardware
