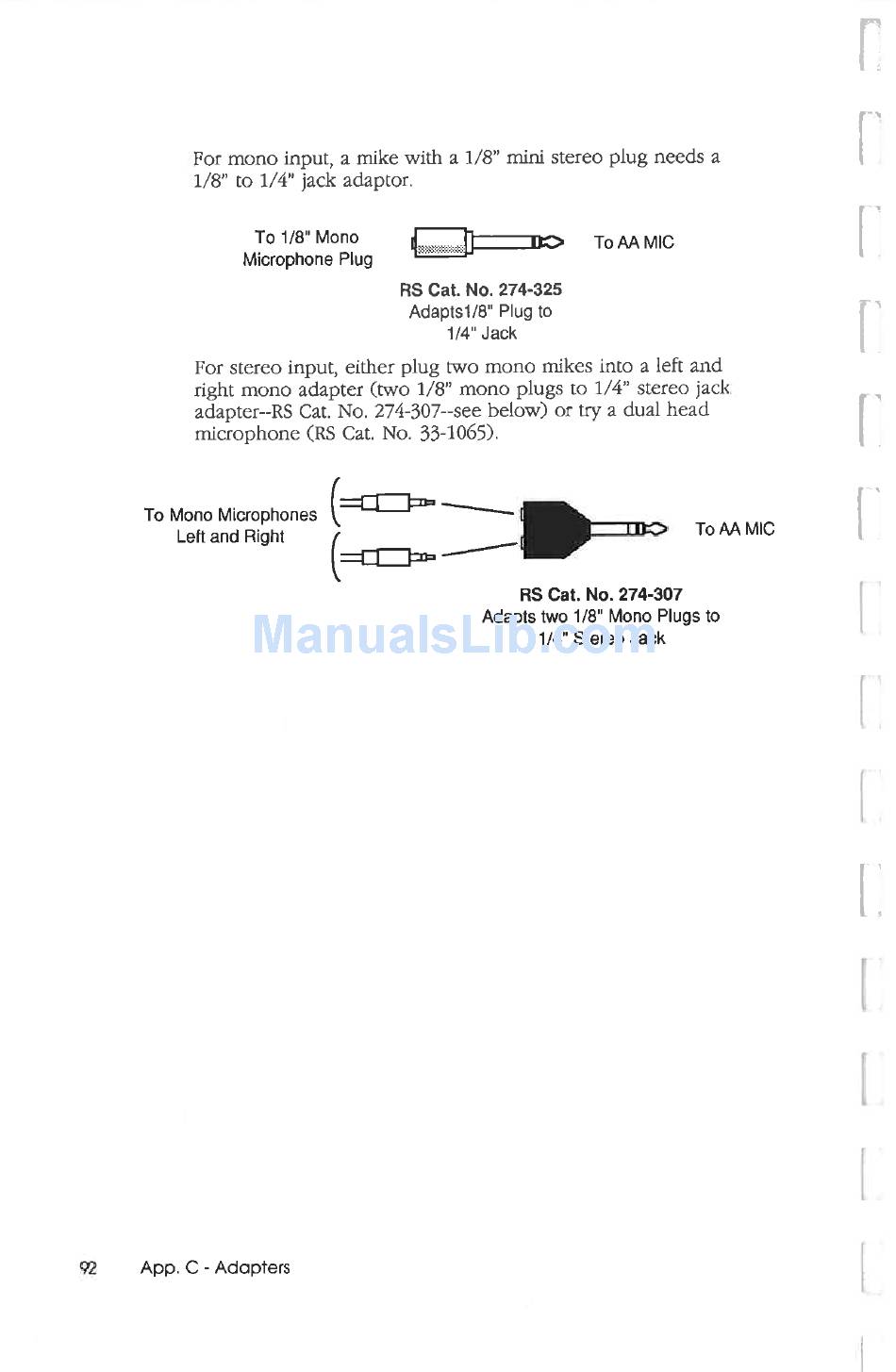

For mono input, a mike with a 1/8" mini stereo plug needs a
1/8" to 1/4" jack adaptor.
To 1/8" Mono
Microphone Plug
~==:::JI)::II=::::::=>
To M MIC
RS Cat. No. 274-325
Adapls1/8" Plug 10
1/4"
Jack
For stereo input, either plug two mono mikes into a left and
right mono adapter (two 1/8" mono plugs
to
1/4" stereo jack
adapter--RS Cat. No. 274-307--see below) or
try
a dual head
microphone (RS Cat. No. 33-1065).
To Mono Microphones
Left and RighI
<72
App . C - Adopters
ToMMIC
RS Cat. No. 274-307
Adapts two 1/8" Mono Plugs 10
1/4"
Slereo Jack
