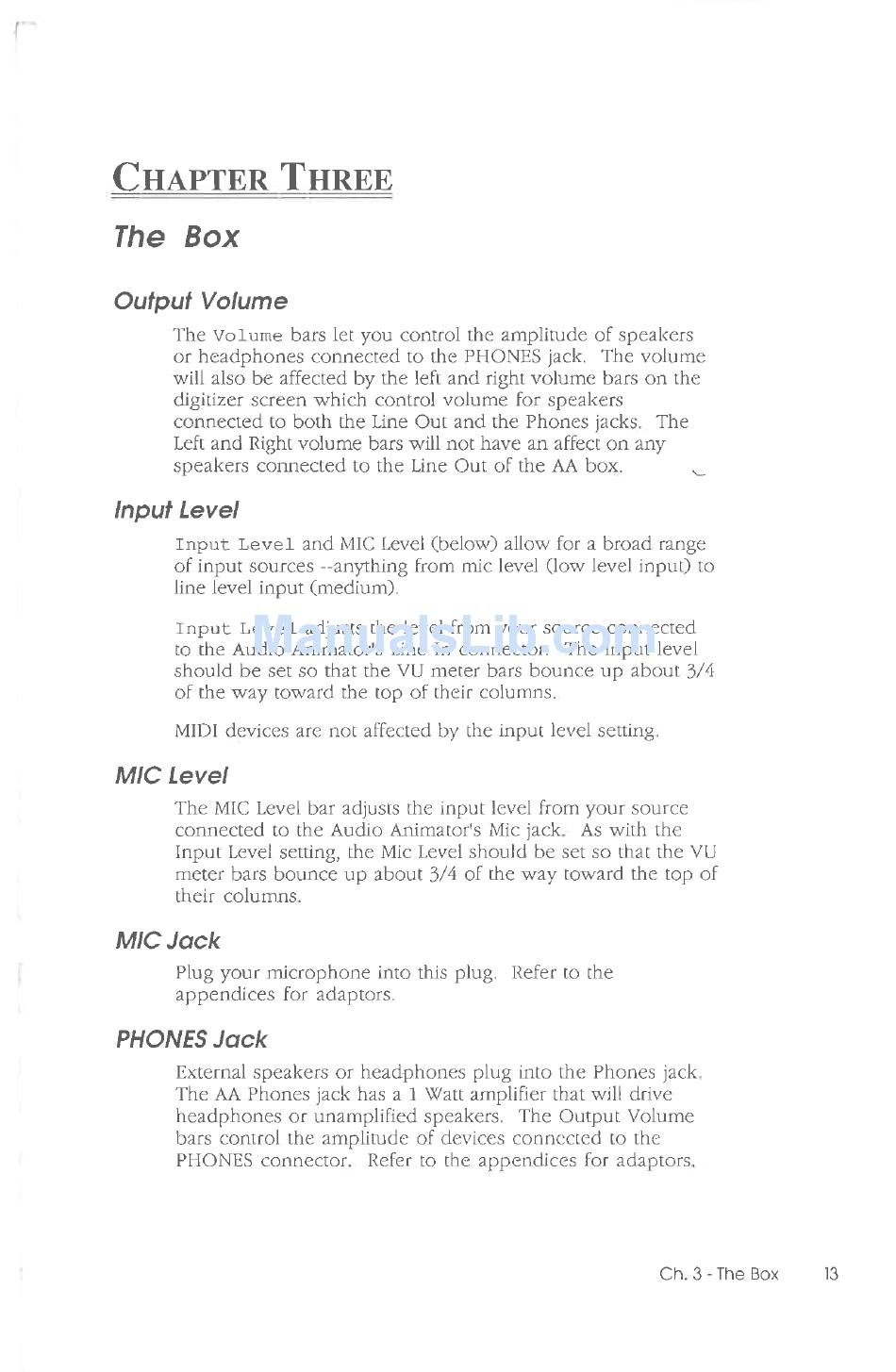

CHAPTER THREE
The Box
Output Volume
The
Volume
bars let you control the amplitude of speakers
or headphones connected to the PHONES jack. The volume
will also be affected by the left and right volume bars on the
digitizer screen which control volume for speakers
connected to both the Line Out and the Phones
jacks.
The
Left and Right volume bars will not have an affect on any
speakers connected
to
the Line Out of the AA
box.
Input Level
Input Level
and MIC Level (below) allow for a broad range
of input sources --anything from mic level (low level input) to
line level input (medium).
Input Level
adjusts the level from your source connected
to the Audio Animator's Line In connector. The input level
should be set so that the VU meter bars bounce up about 3/4
of the way toward the top of their columns
.
MIDI
devices are not affected by the input level
setting.
MIC Level
The MIC Level bar adjusts the input level from your source
connected to the Audio Animator's Mic jack. As with the
Input Level setting, the Mic Level should be set so that the VU
meter bars bounce up about 3/4 of the way toward the top of
their columns.
MICJack
Plug your microphone into this plug. Refer to the
appendices for adaptors.
PHONES Jack
External speakers or headphones plug into the Phones jack.
The AA Phones jack has a 1 Watt amplifier that will drive
headphones or unamplified speakers. The Output Volume
bars control the amplitude of devices connected to the
PHONES connector. Refer to the appendices for
adaptors.
Ch.
3 - The Box
13
