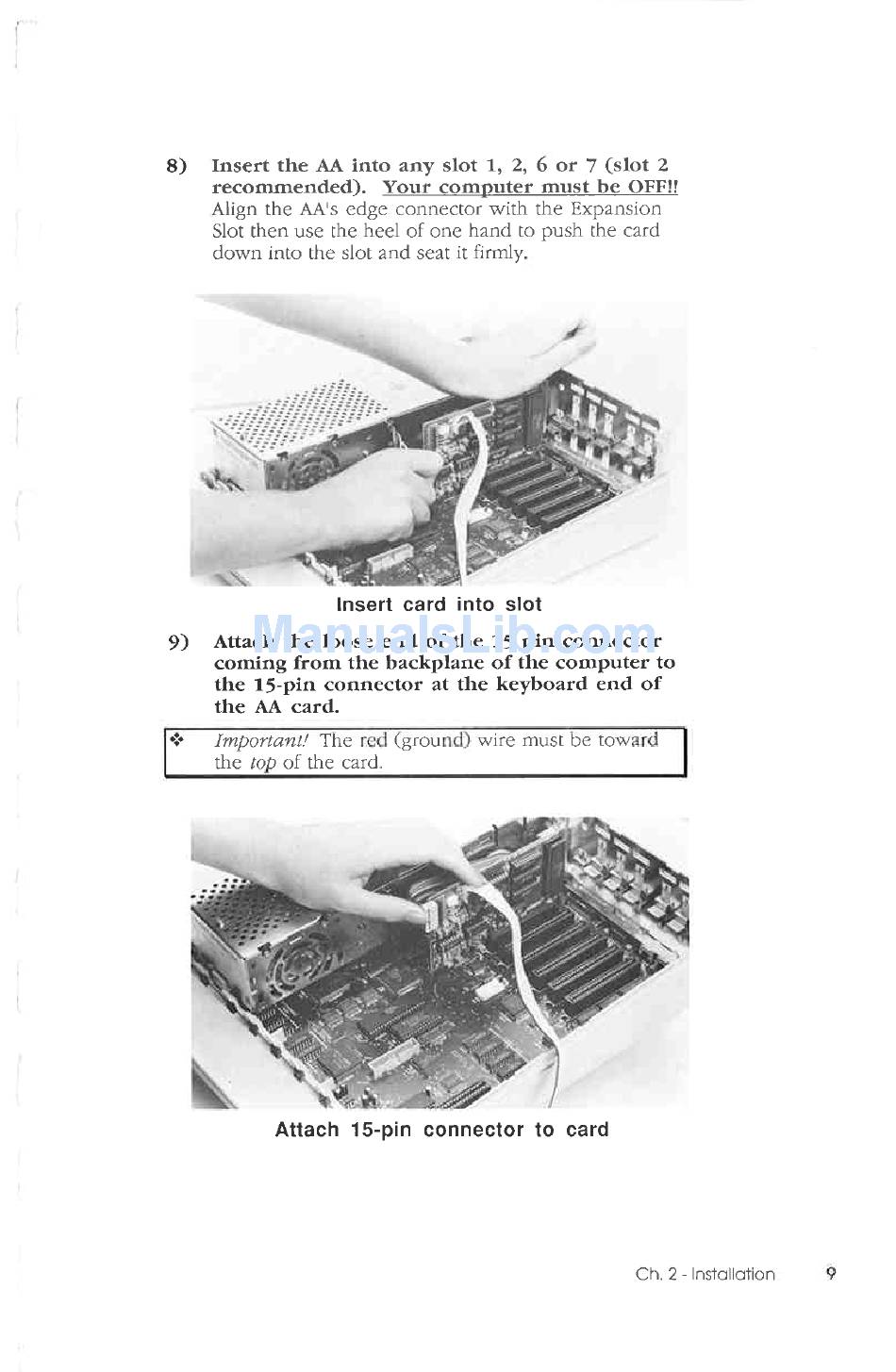

8) Insert the AA into any slot 1, 2, 6 or 7 (slot 2
reconunended). Your computer must be OFF!!
Align the AA's edge connector with the Expansion
Slot then use the heel of one hand to push the card
down into the slot and seat it firmly.
Insert card into slot
9) Attach the loose end of the 15 pin connector
coming from the backplane of the computer to
the 15-pin connector at the keyboard end of
the AA card .
• :. Important! The rcd (grou nd) wire must be tow a rd
the top of the
card.
Attach 15-pin connector to card
Ch. 2 - Installation 9
