C HAPTER ONE
The Screen
("I
Fil@ Edit View Effects
smp
SouAds
.J
>
11
>
Lfft Volu;n@
"'-'
I I
0 I I
$top Pla~
Pouse Record
Right VolUlle
! I
D
I I
18855 1
m~
Ploybock Scnp\r Rate: 21611 Hz
I I CI I
10_01
@VUOn
Record Scnp\e Rate: 22611Hz
OVU Off
I I
01
/
.. ..
"-
Play Tiae:
0
@Slngl,PloV
o
Continuous
PJoV
Hox Block:
0.8
I
Select:
865 k Resolution:
30: 1
0 IR£lIS0UHDS/RSOUHD
~~~

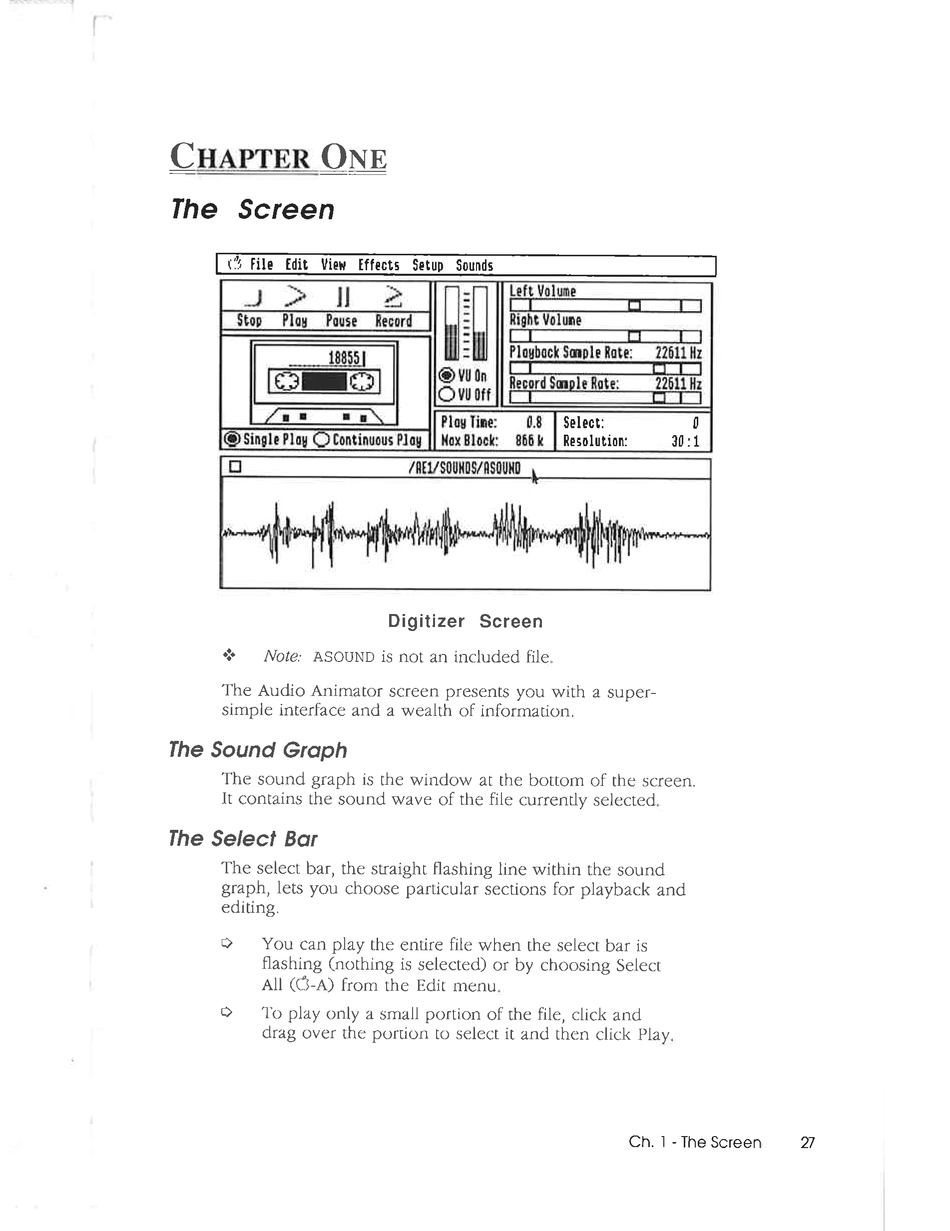

Digitizer Screen
.:. Note:
ASOUND
is not an included file.
The Audio Animator screen presents you with a super-
simple interface and a wealth of information.
The Sound Graph
The sound graph is the window at the bottom of the screen.
It
contains the sound wave of the file currently selected.
The Select Bar
The select bar, the straight flashing line within the sound
graph, lets you choose particular sections for playback and
editing.
[) You can play the entire file when the select bar is
flashing (nothing is selected) or by choosing Select
All (O-A) from the Edit menu .
[) To play only a small portion of the file, click and
drag over the portion to select it and then click Play .
I
Ch. 1 - The Screen 27
