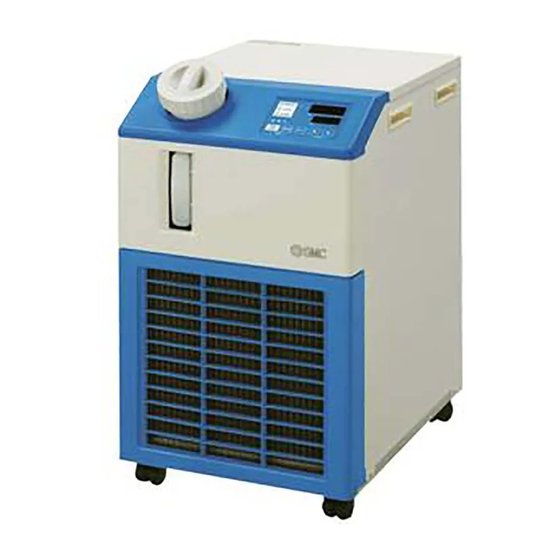

SMC Networks HRS012-A*-10-* Operation Manual

Thermo chiller
Hide thumbs Also See for HRS012-A*-10-*:
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
Installation･Operation
Original Instructions
Air-Cooled
refrigerated type
∗
HRS012-A
-10-
∗
HRS018-A
-10-
∗
HRS012-A
-20-
∗
HRS018-A
-20-
∗
HRS024-A
-20-
Keep this manual available whenever necessary
Thermo chiller
∗
∗
∗
∗
∗
Water-Cooled
refrigerated type
∗
HRS012-W
-10-
∗
HRS018-W
-10-
∗
HRS012-W
-20-
∗
HRS018-W
-20-
∗
HRS024-W
-20-
© 2013 SMC CORPORATION All Rights Reserved
HRX-OM-M090
st
1
edition: Jul. 2009
Rev.M: Mar. 2013
∗
∗
∗
∗
∗
