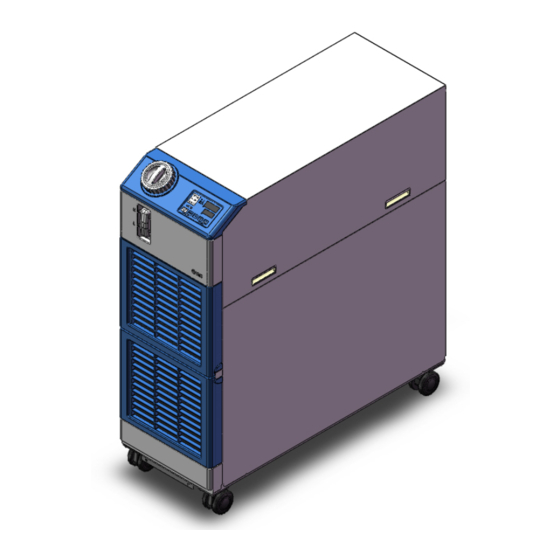

Circulating fluid temperature controller, thermo-chiller, standard type, lightweight and compact
Hide thumbs Also See for HRS090 Series:
Table of Contents

Advertisement

Quick Links

Circulating Fluid Temperature Controller
Thermo-chiller
Lightweight and Compact
Cooling capacity
Temperature stability
Set temperature range
Max. ambient temperature
Indoor use
Compatible power
supplies in Europe, Asia,
Oceania, North, Central and
South America
O3-phase 200 V
O3-phase 400 V
With heating function
Heating method using discharged heat makes a heater unnecessary.
Convenient functions
Timer operation function/Unit conversion function/Power
failure auto-restart function/Anti-freezing operation function
Easy maintenance
Tool-less maintenance of filter
HRS090
Series
9
kW
0.5
±
°C
(when a load is stable)
5
35
°C to
°C
45
°C
Water-cooled refrigeration
Self diagnosis function and check display
Page 3
41 types of alarm codes
Communication function
Page 2
Equipped with serial communication (RS232C/RS485)
and contact I/Os (2 inputs and 3 outputs) as standard.
Standard Type
Weight
970
Page 4
Page 4
(Only 400 VAC type)
RoHS
136
kg
377
Air-cooled refrigeration
Environmental friendly
as refrigerant
R410A
CAT.ES40-64A
[mm]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRS090 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks HRS090 Series

Summary of Contents for SMC Networks HRS090 Series

  • Page 1 Circulating Fluid Temperature Controller Thermo-chiller Standard Type (Only 400 VAC type) Lightweight and Compact RoHS Weight Cooling capacity ± Temperature stability °C [mm] (when a load is stable) Set temperature range °C to °C Max. ambient temperature °C Indoor use Compatible power supplies in Europe, Asia, Oceania, North, Central and...
  • Page 2 Circulating Fluid Temperature Controller Thermo-chiller HRS090 Standard Type Series Compact and lightweight 136 kg The precision temperature control method by expansion valve and temperature sensor, realized high temperature stability of ±0.5°C and a small-size tank. HRS090-W-l HRS090-A-l (Water-cooled refrigeration) (Air-cooled refrigeration) * This circuit construction of the position of the parts may be different from actual product.
  • Page 3 Circulating Fluid Temperature Controller Thermo-chiller HRS090 Standard Type Series With heating function Temperature increase with heating capacity (Ambient temperature 32°C/50 Hz) Heating method using Hot discharged discharged heat makes a heater unnecessary. gas from refrigerant Heater Minute [Time] Cool Cool Heating functions are required fluid from refrigerant fluid from refrigerant...
  • Page 4 Circulating Fluid Temperature Controller Thermo-chiller HRS090 Standard Type Series Power supply (24 VDC) available Electric conductivity control set (With DI filter + Solenoid valve kit for control) (Optional accessory on page 17) Power can be supplied from the terminal block on the rear side to external switches etc.
  • Page 5 Circulating Fluid Temperature Controller Thermo-chiller HRS090 Standard Type Series Self diagnosis function and check display Display of individual alarm codes For details, refer to page 13. Operation is monitored all the time by the integrated sensor. Should any error occur, the self diagnosis result is displayed by the applicable alarm code. This makes it easier to identify the cause of the alarm.
  • Page 6 Circulating Fluid Temperature Controller Thermo-chiller HRS090 Standard Type Series Applications Laser beam machine/ Printing machine Cleaning machine Laser welding machine Temperature control of the roller Temperature control of cleaning solution Cooling of the laser oscillation part and power source Arc welding machine Resistance welding machine High frequency induction (spot welding)
  • Page 7 Circulating Fluid Temperature Controller Thermo-chiller HRS090 Standard Type Series Global Supply Network SMC has a comprehensive network in the global market. We now have a presence of more than 400 branch offices and distributors in 78 countries world wide such as Asia, Oceania, North/Central/South America, and Europe.
  • Page 8 Circulating Fluid Temperature Controller Thermo-chiller HRS090 Standard Type Series Circulating Fluid/Facility Water Line Equipment Circulating Fluid Line Power supply (24 VDC) available Terminal block Circulating fluid return port Y-strainer Bypass valve Flow Switch User's Pressure Switch equipment Valve Fittings and Tubing Circulating fluid outlet Facility Water Line (Water-cooled)
  • Page 9 C O N T E N T S HRS090 Series Standard Type HRS090 Thermo-chiller Series Optional Accessories How to Order/Specifications Air-cooled 200 V/400 V �������������������������������� Page 9 q Piping Conversion Fitting �������������������������������� Page 16 Water-cooled 200 V/400 V ������������������������������ Page 10 w Bypass Piping Set �������������������������������������������...
  • Page 10 Thermo-chiller Standard Type (Only 400 VAC type) Air-cooled 200 V/400 V Type RoHS HRS090 Series How to Order Cooling capacity Option 9 kW None Note) With earth leakage breaker Cooling method With automatic fluid fill function Air-cooled refrigeration Applicable to deionized water piping OWhen multiple options are combined, Pipe thread type indicate symbols in alphabetical order.
  • Page 11 Thermo-chiller Standard Type (Only 400 VAC type) Water-cooled 200 V/400 V Type RoHS HRS090 Series How to Order Cooling capacity Option 9 kW Cooling method None Note) With earth leakage breaker Water-cooled refrigeration With automatic fluid fill function Pipe thread type Applicable to deionized water piping Power supply OWhen multiple options are combined,...

  • Page 12: Cooling Capacity

    HRS090 Series Standard Type Cooling Capacity HRS090-A-20/40 (50 Hz) HRS090-A-20/40 (60 Hz) Ambient temperature 32°C Ambient temperature 32°C Ambient temperature 40°C Ambient temperature 40°C Ambient temperature 45°C Ambient temperature 45°C Circulating fluid temperature [°C] Circulating fluid temperature [°C] HRS090-W-20/40 (50 Hz) HRS090-W-20/40 (60 Hz) Facility water temperature 32°C Facility water temperature 32°C...
  • Page 13 HRS090 Series Thermo-chiller Standard Type Dimensions HRS090-m-20/40 Ventilation air outlet Ventilation air inlet Circulating fluid fill port lid Serial communication (RS-485/RS-232C) connector Signal cable entry (Hole 40) Operation display panel D-sub female receptacle (Grommet with membrane) Option B Note 2) Contact input/output communication connector [With earth leakage breaker]...

  • Page 14: Operation Display Panel

    HRS090 Series Standard Type Operation Display Panel List of Function The basic operation of this unit is controlled through the operation display panel on the front of the product. Function Outline Displays the current and set temperature of the 1 Main display circulating fluid, discharge pressure of the circulating fluid.

  • Page 15: Serial Communication

    HRS090 Series Thermo-chiller Standard Type Communication Function Contact Input/Output Item Specifications Connector type M3 terminal block Insulation method Photocoupler Rated input voltage 24 VDC Input signal Operating voltage range 21.6 to 26.4 VDC Rated input current 5 mA TYP Input impedance 4.7 kW Rated load voltage 48 VAC or less/30 VDC or less...
  • Page 16 HRS090 Series Note) Select the option when ordering Options the thermo-chiller because the option cannot be added after pur- chasing the unit. Option symbol With Earth Leakage Breaker HRS090 20 B With earth leakage breaker A leakage breaker is built in to automatically stop the supply power when it has short-circuit, over current or electrical leakage.

  • Page 17: Optional Accessories

    HRS090 Series Optional Accessories q Piping Conversion Fitting This is a fitting to change the port from Rc to G or NPT. · Circulating fluid outlet, Circulating fluid return port Rc1 → NPT1 or G1 · Drain port Rc1/4 → NPT1/4 or G1/4 (It is not necessary to purchase this when pipe thread type F or N is selected in “How to Order”...
  • Page 18 HRS090 Series e Electric Conductivity Control Set The set indicates and controls the electric conductivity of the circulating fluid. Refer to the Operation Manual for details. (314) Part no. Applicable model (Flying-out size) HRS-DI007 HRS090-ll-20/40 Measurement range of electric conductivity 2.0 to 48.0 μS/cm Set range of electric conductivity target 5.0 to 45.0 μS/cm To circulating fluid return port...
  • Page 19 HRS090 Series Optional Accessories t Filter for Circulating Fluid Fill Port Prevents foreign matter from entering the tank when supplying the circulating fluid. Can be used just by fitting into the circulating fluid fill port. Tank lid  Filter for circulating fluid fill port HRS-PF007 Filter for circulating fluid fill port Stainless steel 304,...

  • Page 20: Cooling Capacity Calculation

    HRS090 Series Cooling Capacity Calculation Required Cooling Capacity Calculation Example 1: When the heat generation amount in the user’s equipment is known. The heat generation amount can be determined based on the power consumption or output Q: Heat generation of the heat generating area — i.e. the area requiring cooling — within the user’s equipment. * amount I: Current User’s...
  • Page 21 HRS090 Series Cooling Capacity Calculation Required Cooling Capacity Calculation Example 3: When there is no heat generation, and when cooling the object below a certain temperature and period of time. Heat quantity by cooled substance (per unit time) Q : Unknown [W] ([J/s]) Example of conventional measurement units (Reference) Cooled substance : Water...

  • Page 22: Specific Product Precautions

    HRS090 Series Specific Product Precautions 1 Be sure to read this before handling. Refer to the back cover for Safety Instructions. For Temperature Control Equipment Precautions, refer to “Handling Precautions for SMC Products” and the Operation Manual on the SMC website, http://www.smcworld.com Design Operating Environment / Storage Environment Warning...

  • Page 23: Installation

    HRS090 Series Specific Product Precautions 2 Be sure to read this before handling. Refer to the back cover for Safety Instructions. For Temperature Control Equipment Precautions, refer to “Handling Precautions for SMC Products” and the Operation Manual on the SMC website, http://www.smcworld.com Transportation / Carriage / Movement Installation Warning...
  • Page 24 HRS090 Series Specific Product Precautions 3 Be sure to read this before handling. Refer to the back cover for Safety Instructions. For Temperature Control Equipment Precautions, refer to “Handling Precautions for SMC Products” and the Operation Manual on the SMC website, http://www.smcworld.com Piping Circulating Fluid Caution...

  • Page 25: Operation

    HRS090 Series Specific Product Precautions 4 Be sure to read this before handling. Refer to the back cover for Safety Instructions. For Temperature Control Equipment Precautions, refer to “Handling Precautions for SMC Products” and the Operation Manual on the SMC website, http://www.smcworld.com Facility Water Supply Operation Restart Time Warning...

  • Page 26: Safety Instructions

    These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for ∗1) safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations.
