SMC Networks HRS050-A*-20 Series Operation Manual
  1. Manuals
  2. Brands
  3. SMC Networks Manuals
  4. Chiller
  5. HRS050-A*-20 Series
  6. Operation manual

SMC Networks HRS050-A*-20 Series Operation Manual

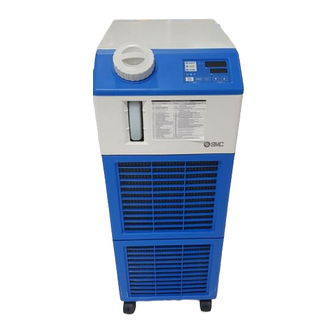

Thermo chiller air-cooled/water-cooled refrigerated type
Hide thumbs Also See for HRS050-A*-20 Series:
Table of Contents

Advertisement

Quick Links

HRX-OM-O021
st
1
edition: Dec. 2010
Rev.I: Mar. 2013
Operation Manual
Installation･Operation
Original Instructions
Thermo chiller
Air-Cooled
Water-Cooled
refrigerated type
refrigerated type
∗
∗
∗
∗
HRS050-A
-20-
HRS050-W
-20-
Keep this manual available whenever necessary
© 2013 SMC CORPORATION All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRS050-A*-20 Series and is the answer not in the manual?

Questions and answers

Milo Lees
March 7, 2025

I **** told by our maintenance team that our unit (serial No. BZ559 Dec. 2023) takes distilled water due to past issues of biotic matter growing in facility water within the unit. I was told that there is a solution that is to be added to such water to destroy the biotic matter. Do you know of such a solution?

0

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks HRS050-A*-20 Series

Summary of Contents for SMC Networks HRS050-A*-20 Series

  • Page 1 HRX-OM-O021 edition: Dec. 2010 Rev.I: Mar. 2013 Operation Manual Installation･Operation Original Instructions Thermo chiller Air-Cooled Water-Cooled refrigerated type refrigerated type ∗ ∗ ∗ ∗ HRS050-A -20- HRS050-W -20- Keep this manual available whenever necessary © 2013 SMC CORPORATION All Rights Reserved...
  • Page 2 To the users Thank you for purchasing SMC’s Thermo chiller (hereinafter referred to as the “product”). For safety and long life of the product, be sure to read this operation manual (hereinafter referred to as the “manual”) and clearly understand the contents. •...

  • Page 3: Table Of Contents

    HRX-OM-O021 Contents Contents Chapter 1 Safety Instructions ............1-1 Before using the product ..................1-1 Reading the Manual ....................1-1 Hazards ........................1-2 1.3.1 Level of hazards ........................1-2 1.3.2 Definition of “Serious injury” and “Minor injury”..............1-2 1.3.3 Types of hazard labels ......................1-3 1.3.4 Locations of Hazard Labels....................
  • Page 4 HRX-OM-O021 Contents Piping ........................3-16 Fill of circulating fluid....................3-18 Option J Piping of【Automatic fluid filling】 ............3-19 Wiring of external switch ..................3-20 3.7.1 Reading of the External switch ..................3-21 3.7.2 Wiring..........................3-22 3.7.3 Setting items ........................3-23 Chapter 4 Starting the Product............
  • Page 5 HRX-OM-O021 Contents Offset function ......................5-22 5.8.1 Offset function ........................5-22 5.8.2 Offset function setting and checking ................. 5-24 Function to recover from power failure ..............5-26 5.9.1 Function to recover from power failure................5-26 5.9.2 Function to recover from power failure setting and checking........... 5-27 5.10 Anti-freezing function....................5-28 5.10.1 Anti-freezing function......................
  • Page 6 HRX-OM-O021 Contents 5.21 Option [Electric resistivity sensor set] ..............5-74 5.21.1 Option [Electric resistivity sensor set]................5-74 5.21.2 Option [Electric resistivity sensor set] setting and checking..........5-75 Chapter 6 Alarm indication and trouble shooting ......6-1 Alarm Display ......................6-1 Alarm buzzer stop......................

  • Page 7: Chapter 1 Safety Instructions

    HRX-OM-O021 Chapter 1 Safety Instructions Chapter 1 Safety Instructions Before using the product be sure to read and understand all the important actions highlighted in this manual. 1.1 Before using the product This chapter is intended to specifically describe the safety related issues for handling the product.

  • Page 8: Hazards

    HRX-OM-O021 Chapter 1 Safety Instructions 1.3 Hazards 1.3.1 Level of hazards The instructions given in this manual aim to assure the safe and correct operation of the product, and to prevent injury of operators or damage to the product. These instructions are grouped into three categories, Danger, Warning and Caution, which indicate the level of hazard, damage and also the degree of emergency.

  • Page 9: Types Of Hazard Labels

    HRX-OM-O021 Chapter 1 Safety Instructions 1.3.3 Types of hazard labels The product has various potential hazards and they are marked with warning labels. Be sure to read this section before starting any work on the product. Warning related to electricity This symbol stands for a possible risk of electric shock.

  • Page 10: Locations Of Hazard Labels

    HRX-OM-O021 Chapter 1 Safety Instructions 1.3.4 Locations of Hazard Labels There are various warning labels on the product to show the potential hazards. Fig. 1-1 Warning label position ∗ For air-cooled type Fig. Warning label position 1.3 Hazards HRS Series...

  • Page 11: Other Labels

    HRX-OM-O021 Chapter 1 Safety Instructions Other Labels 1.4.1 Product Label Information about the product, such as Serial No. and Model No. can be found on the model label. This information is needed when contacting an SMC sales distributor. ∗ (It is an example of model "HRS050-WF-20-BJM".) How to see the manufacturing code P O 001 （January 2011）...

  • Page 12: Safety Measures

    HRX-OM-O021 Chapter 1 Safety Instructions 1.5 Safety Measures 1.5.1 Safety Instructions for Use Follow the instructions below when using the product. Failure to follow the instructions may cause an accident and injury. Read and understand this manual carefully before using the product. Before starting maintenance of the product, be sure to lock out and tag out the breaker of the user's power supply.

  • Page 13: Personal Protective Equipment

    HRX-OM-O021 Chapter 1 Safety Instructions 1.5.2 Personal Protective Equipment This manual specifies personal protective equipment for each work. Transport, Installing and Uninstalling Always use safety shoes, gloves and head protection when transporting, installing or uninstalling the product. Handling of circulating fluid Always use safety shoes, gloves, mask, apron and eye protection when handling the circulating fluid.

  • Page 14: Emergency Measures

    HRX-OM-O021 Chapter 1 Safety Instructions 1.6 Emergency Measures When emergency conditions such as natural disaster, fire and earthquake, or injury occurs, turn off the power supply switch. The switch is located at the front of the product. Even when the power supply swich is turned off, some of the internal circuits are still energized, unless the user’s power supply is shut off.

  • Page 15: Waste Disposal

    HRX-OM-O021 Chapter 1 Safety Instructions 1.7 Waste disposal 1.7.1 Disposal of refrigerant and compressor oil The product uses hydrofluorocarbon type refrigerant (HFC) and compressor oil. Comply with the laws and regulations in each country for the disposal of refrigerant and compressor oil. The type and quantity of refrigerant is described on the 1.4.1 Product Label.
  • Page 16 HRX-OM-O021 Chapter 1 Safety Instructions 1.8 Material Safety Data Sheet (MSDS) HRS Series 1-10...

  • Page 17: Chapter 2 Name And Function Of Parts

    HRX-OM-O021 Chapter 2 Name and Function of Parts Chapter 2 Name and Function of Parts 2.1 Part number of product The product can be ordered with the part number configured as shown below. The product needs to be handled in different ways depending on the part number.

  • Page 18: Name And Function Of Parts

    HRX-OM-O021 Chapter 2 Name and Function of Parts 2.2 Name and Function of Parts Fig. 2-2 Names of each part Accessories list Table 2-1 Alarm code list label 1pc. 2pcs. Operation Manual (Jpn: 1pc. Eng: 1pc.) Sequence I/O command signal 1pc.

  • Page 19: Function Of Parts

    HRX-OM-O021 Chapter 2 Name and Function of Parts 2.3 Function of Parts The function of parts is as follows. Table 2-2 Function of parts Name Function Runs and stops the product and performs settings such as the circulating Operation display panel fluid temperature.

  • Page 20: Operation Display Panel

    HRX-OM-O021 Chapter 2 Name and Function of Parts 2.4 Operation display panel The operation panel on the front of the product controls the basic operation of the product. Fig. 2-3 Operation display panel Table 2-3 Operation display panel Reference Description Function page Displays the temperature and pressure of the circulating...

  • Page 21: Chapter 3 Transport And Setting Up

    HRX-OM-O021 Chapter 3 Transport and Setting Up Chapter 3 Transport and Setting Up Only persons who have sufficient knowledge and experience about the product and system are allowed to transport and set up the product. Especially pay attention to personal safety. 3.1 Transport The product is heavy and has potential danger at transport.

  • Page 22: Transportation Using Casters

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.1.1 Transportation using casters This product is heavy. Care should be taken when the product is transported on a slope. Release the lock levers of the front casters. Push the handles on the right/left panel or the corner of the product to move the product to the destination.

  • Page 23: Installation

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.2 Installation Do not set up the product in places possibly exposed to leakage of flammable gas. Should any flammable gas stay around the product, the product may cause a fire. Do not use the product outdoors. If the product subjected to rain or water splash it may cause electrical shock, fire or failure.

  • Page 24: Environment

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.2.1 Environment The product must not be operated, installed, stored or transported in the following conditions. Potential malfunction or damage to the product may occur if these instructions are disregarded. The product does not conform to any Clean room specifications. The pump and ventilating fan inside the product generate particles.

  • Page 25: Location (Required Ventilation Rate And Facility Water Source)

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.2.2 Location (Required ventilation rate and facility water source) Do not install in a location which can be subjected to any of the conditions in 3.2.1 Environment. The product radiates heat from the air vent of the cooling fan. If the product is operated with insufficient air ventilation the internal ∗...

  • Page 26: Installation And Maintenance Space

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.2.3 Installation and Maintenance Space It is recommended to keep the space around the product shown in 3-2. Fig. For maintenance, move the thermo-chiller into a space where maintenance work is possible. Fig. 3-2 Installation space The temperature of the outlet of for the ventilation of the thermo-chiller and the panel surface may become approx.

  • Page 27: Installation

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.3 Installation 3.3.1 Mounting Mount the product on a flat and stable floor with no vibrations. Refer to’’8.2 Outline dimensions’’ for dimensional information of the product. How to mount the product Move the product to the installation area. After moving, lock the front casters again.

  • Page 28: Electrical Wiring

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.3.2 Electrical wiring Do not modify the intenal electrical wiring of the product. Incorrect wiring may cause electrical shock or fire. Also, modifing the internal wiring will void the product’s warranty. Do not connect the ground to water line, gas pipe or lightening conductor.

  • Page 29: Preparation And Wiring Of Power Supply Cable

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.3.3 Preparation and wiring of power supply cable The electrical facilities should be installed and wired in accordance with local laws and regulations of each country and by a person who has knowledge and experience. Check the power supply.
  • Page 30 HRX-OM-O021 Chapter 3 Transport and Setting Up Pull the upper panel towards the back of the product, and lift it to remove. Fig. 3-6 Remove the upper panel Connect the power supply cable and earth cable as shown in the figure below. Fig.

  • Page 31: Wiring Of Remote Operation Signal Input

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.3.4 Wiring of remote operation signal input The remote signal input is to enable the product to be run and stopped remotely by applying a contact signal input. This chapter illustrates examples of wiring Select DIO mode as the communication mode to activate the remote control signal input.
  • Page 32 HRX-OM-O021 Chapter 3 Transport and Setting Up Plug the prepared connector in to the contact input/output connector that is on the back of the thermo-chiller. Fig. 3-9 Communication port 3.3 Installation HRS Series 3-12...

  • Page 33: Wiring Of Operation Signal Output And Alarm Signal Output

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.3.5 Wiring of operation signal output and alarm signal output The operation signal output and alarm signal output are the outputs generated by a contact signal to shown the status of the product. Be sure to shut off the breaker of the facility power supply (the user’s machine power supply) before wiring.

  • Page 34: Communication Wiring

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.3.6 RS-485 Communication wiring Serial communication RS-485, operation start/stop, setting and reading of circulating fluid temperature, and reading of alarm condition can be done by remote control. Refer to the Communications Operation Manual for more details. Wiring of interface communication cable Be sure to shut off the breaker of the facility power supply (the user’s machine power supply) before wiring.

  • Page 35: Rs-232C Communication Wiring

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.3.7 RS-232C Communication wiring Serial communication RS-232C, operation start/stop, setting and reading of circulating fluid temperature, and reading of alarm condition can be done by remote control. Refer to the Communications Operation Manual for more details. Wiring of communication cable Be sure to shut off the breaker of the facility power supply (the user’s machine power supply) before wiring.

  • Page 36: Piping

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.4 Piping Connect piping firmly. Incorrect piping might cause leakage of supplied or drained leakage and wet surrounding area and facility. Keep supply water pressure below 0.5MPa. Pay attention not to allow dust and foreign materials to enter into water circuit etc.
  • Page 37 HRX-OM-O021 Chapter 3 Transport and Setting Up How to connect piping Tighten the piping to circulating fluid outlet / return port and facility water outlet / inlet. Fig. 3-12 Tightening of piping Recommended piping circuit Fig. 3-13 Recommended piping circuit Name Size Valve...

  • Page 38: Fill Of Circulating Fluid

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.5 Fill of circulating fluid Turn the tank lid anticlockwise to open. Supply the circulating fluid up to the “H” mark on the fluid level indicator. Use tap water which satisfies the water quality standard shown inTable 7-1, or a 15% aqueous solution of ethylene glycol.

  • Page 39: Option J Piping Of【Automatic Fluid Filling

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.6 Option J Piping of【Automatic fluid filling】 Automatic fluid filling port and over flow port need to be connected when optional [automatic fluid filling] is selected. Piping to automatic fluid filling port Connect the piping to supply the circulating fluid. Automatic fluid filling is performed by using the solenoid valve which is built in the thermo-chiller.

  • Page 40: Wiring Of External Switch

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.7 Wiring of external switch This product can be monitored by sampling the signal of the external switch prepared by the customer. Table 3-6 Power supply, contact specifications Name Terminal NO. Specification 12(DC 24V) ∗...

  • Page 41: Reading Of The External Switch

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.7.1 Reading of the External switch This product can be monitored during operation by reading the signal of the external switch prepared by the customer. The product stops monitoring when it stops operation. This product generates an alarm and stops operating when a problem is detected from the external switch.

  • Page 42: Wiring

    HRX-OM-O021 Chapter 3 Transport and Setting Up 3.7.2 Wiring As an example of connection of an external switch, the connecting method is shown below using the SMC flow switch (NPN, PNP). This chapter illustrates examples of wiring Be sure to shut off the breaker of the facility power supply (the user’s machine power supply) before wiring.

  • Page 43: Setting Items

    HRX-OM-O021 Chapter 3 Transport and Setting Up Plug the prepared connector in to the contact input/output connector that is on the back of the thermo-chiller. Fig 3-19 Connecting the connector 3.7.3 Setting items Table 3-9 shows the setting items of the external switch. For details, refer to 5.18 Communication function.
  • Page 44 HRX-OM-O021 Chapter 3 Transport and Setting Up 3.7 Wiring of external switch HRS Series 3-24...

  • Page 45: Chapter 4 Starting The Product

    HRX-OM-O021 Chapter 4 Starting the Product Chapter 4 Starting the Product Only people who have sufficient knowledge and experience about the product and its accessories are allowed to start and stop the product. 4.1 Before Starting Check the following items before starting the product. Installation conditions Check the product is installed horizontally.

  • Page 46: Preparation For Start

    HRX-OM-O021 Chapter 4 Starting the Product 4.2 Preparation for Start 4.2.1 Power supply Supply the power and turn on the breaker. When the product is switched on, the operation panel displays the following conditions. The initial screen (HELLO screen) is displayed for 8 seconds on the operation display panel.

  • Page 47: Preparation Of Circulating Fluid

    HRX-OM-O021 Chapter 4 Starting the Product 4.3 Preparation of circulating fluid When the circulating fluid tank is filled the user’s machine and piping remains empty. In that condition, the circulating fluid flows out to the user’s machine and piping and the tank level decreases and may require a refill. In that case, refill the circulating fluid in the following procedure.
  • Page 48 HRX-OM-O021 Chapter 4 Starting the Product Press the [RESET] key ([▼] and [▲] keys simultaneously) to stop the alarm buzzer. Flash Press together Fig. 4-5 Alarm receipt Be sure to reset the alarm on the operation display panel of the alarm. Alarm reset is not accepted from any screen except the alarm display menu.
  • Page 49 HRX-OM-O021 Chapter 4 Starting the Product Press the [RESET] key ([▼] and [▲] keys simultaneously) to reset the alarm. The alarm (tank fluid level is low) is reset, and the [ALARM] lamp and [ ] lamp are turned off. The display returns to the initial screen of the main menu: “Circulating fluid temp.

  • Page 50: Starting And Stopping

    HRX-OM-O021 Chapter 4 Starting the Product 4.4 Starting and Stopping 4.4.1 Starting the product Allow at least five minutes before restarting the product. Before starting, check the items specified in “4.1 Before Starting” If any alarm lamp remains on, refer to Chapter 6 Alarm indication and trouble shooting”...

  • Page 51: Stopping The Product

    HRX-OM-O021 Chapter 4 Starting the Product 4.4.2 Stopping the product Press the [RUN/STOP] button on the operation panel. The [RUN] lamp on the operation panel flashes green at 1 second intervals, and continues operation to prepare to stop. After approx. 15 seconds, the [RUN] lamp goes off and the product stops.

  • Page 52: Check Items After Starting

    HRX-OM-O021 Chapter 4 Starting the Product 4.5 Check items after starting Check the following items after starting the product. When an Alarm is seen, press the [STOP] button and then turn off the breaker to stop the product, and turn off the breaker of the user’s power supply to isolate the product.

  • Page 53: Chapter 5 Display And Setting Of Various Functions

    HRX-OM-O021 Chapter 5 Display and setting of various functions Chapter 5 Display and setting of various functions Read and understand this manual carefully before changing the settings. The product can have the displays and settings shown in table 5-1. Table 5-1 List of function Reference Function Outline...

  • Page 54: Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.1 Function 5.1.1 Key operations Fig. 5.1-1 “Key operation (1/2)” and “Key operation (2/2)” shows the operation of keys of the thermo-chiller. MENU MENU Check monitor Main display Setting menu menu Circulating fluid outlet Circulating...
  • Page 55 HRX-OM-O021 Chapter 5 Display and setting of various functions MENU Alarm setting Communication MENU menu setting menu Alarm The monitoring Stop bit length Communicati Digital output buzzer time of （Simple on mode 1 function MENU sound communication MENU communicatio Press the error Press the n protocol）...

  • Page 56: List Of Parameters

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.1.2 List of parameters Table 5.1-1“List of parameter (1/3)” and Table 5.1-3“List of parameter (3/3)” show the parameters of the thermo-chiller. Table 5.1-1 List of parameter (1/3) Initial value Reference Display Item Category (Default setting)
  • Page 57 HRX-OM-O021 Chapter 5 Display and setting of various functions Table 5.1-2 List of parameter (2/3) Initial value Reference Display Item Category (Default setting) page Alarm buzzer sound 5.14 Changing of low tank level A.STP Changing of circulating fluid discharge A.RUN temperature rise Detection temperature for circulating 45.0...
  • Page 58 HRX-OM-O021 Chapter 5 Display and setting of various functions Table 5.1-3 List of parameter (3/3) Initial value Reference Display Item Category (Default setting) page Contact input signal 1 Contact input signal 1 type Unused Unused Contact input signal 2 Contact input signal 2 type Contact input signal 2 delay timer (time delay) of reading Contact input signal 2 OFF...

  • Page 59: Main Screen

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.2 Main screen 5.2.1 Main screen Displays the current temperature and the set temperature of the circulating fluid. The set temperature can be changed on this screen. 5.2.2 Display on the main screen The display on the main screen is as follows.

  • Page 60: Alarm Display Menu

    HRX-OM-O021 Chapter 5 Display and setting of various functions Alarm display menu 5.3.1 Alarm display menu The alarm display screen appears when an alarm is generated. ∗ The alarm display menu cannot be accessed when no alarm has been generated. ∗...

  • Page 61: Inspection Monitor Menu

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.4 Inspection monitor menu 5.4.1 Inspection monitor menu As a part of the daily inspection, the temperature, pressure and accumulated operating time can be checked. Please use this for confirmation of your daily inspection. 5.4.2 Checking of the Inspection monitor menu The table below explains the check items of the inspection monitor menu.
  • Page 62 HRX-OM-O021 Chapter 5 Display and setting of various functions Check of the circulating fluid outlet temperature Press and hold the [MENU] key for approx. 2 sec. The temperature of the circulating fluid outlet 「 」is displayed on the digital display. ［MENU］...

  • Page 63: Troubleshooting

    HRX-OM-O021 Chapter 5 Display and setting of various functions Check of the pressure of the lower pressure side of the refrigerant circuit Press the [SEL] key once. The pressure of lower pressure refrigerant circuit is displayed on the digital display. Displays the pressure of the lower pressure side of the refrigerant circuit.
  • Page 64 HRX-OM-O021 Chapter 5 Display and setting of various functions Check of the accumulated operation time of the fan motor Press the [SEL] key once. The accumulated operation time of the fun motor is displayed on the digital display. Displays the accumulated operation time of the fan motor. Refer to Table 5.4-2 for the display.

  • Page 65: Key-Lock

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.5 Key-lock 5.5.1 Key-lock The keys can be locked to prevent the set values being changed by operator error. Operation can be started/stopped by the “RUN/STOP” key even while key-lock is set. If you try to change the set value with “▲”...

  • Page 66: Key-Lock

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.5.2 Key-lock setting / checking The table below explains the setting items of the key-lock function and the initial values. Table 5.5-1 List of key-lock Initial value Display Item Contents (Default setting) Sets key-lock.

  • Page 67: Run Timer, Stop Timer Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.6 Run timer, stop timer function 5.6.1 Run timer and stop timer function This function starts or stops operation automatically when a set time has passed. The time can be set according to the customer’s working hours. Set the circulating fluid temperature in advance.
  • Page 68 HRX-OM-O021 Chapter 5 Display and setting of various functions Timer setting example Run timer Set to start after 3hours Stopped Operating ・・・ ↑Operating Stop timer Set to stop after 3 hours Operating Stopped ・・・ ↑Stopped Run timer＋ Stop timer Set to start after 2 hours Stopped Operating Stopped...

  • Page 69: Setting And Checking Of Run Timer And Stop Timer Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.6.2 Setting and checking of Run timer and stop timer function The table below explains the setting items of the run/stop timer and the initial values. Table 5.6-1 List of set run timer and stop timer Initial value Display Item...
  • Page 70 HRX-OM-O021 Chapter 5 Display and setting of various functions Stop timer Setting and checking Press the [SEL] key once. The set screen of stop timer is displayed on the digital display. Select stop timer from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.

  • Page 71: Signal For Completion Of Preparation (Temp Ready)

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.7 Signal for completion of preparation (TEMP READY) 5.7.1 Signal for completion of preparation (TEMP READY) This function sets the band width for the circulating fluid set temperature (upper/lower temperature range) in order to notify the customer by communication that the circulating fluid temperature has reached the band range (upper/lower temperature range).The default setting of this function is “OFF”.

  • Page 72: Signal For Completion Of Preparation (Temp Ready)

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.7.2 Signal for completion of preparation (TEMP READY) setting / checking The table below shows the explanation of and initial value of set items of signal for completion of preparation (TEMP. READY) Table 5.7-1 List of set Signal for completion of preparation (TEMP READY) Initial value Display...
  • Page 73 HRX-OM-O021 Chapter 5 Display and setting of various functions Select READY band width (upper/lower temperature range) from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.7-3 List of set value Initial Set value Explanation (Default setting) Setting and checking are not available when...

  • Page 74: Offset Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.8 Offset function 5.8.1 Offset function This function controls the circulating fluid discharge temperature with offset. Temperature offset may occur between the thermo-chiller and the customer’s device depending on the installation environment. To correct the temperature offset, three types of offset functions are available (MODE1 to 3).
  • Page 75 HRX-OM-O021 Chapter 5 Display and setting of various functions ■ Example of MODE 1 When the offset temperature is 1 C, the thermo-chiller controls the temperature aiming at C (circulating fluid set temperature + offset temperature.) Even if the discharge temperature is 31 C, the circulating fluid temperature is 30 C at the customer’s device...

  • Page 76: Offset Function Setting And Checking

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.8.2 Offset function setting and checking The table below explains the setting items of the offset function and the initial values. Table 5.8-1 List of set offset function Initial Display Item Contents (Default setting) Offset mode...
  • Page 77 HRX-OM-O021 Chapter 5 Display and setting of various functions Offset temperature Setting and checking Press the [SEL] key once. The set screen of offset temperature is displayed on the digital display. Select offset temperature from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.

  • Page 78: Function To Recover From Power Failure

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.9 Function to recover from power failure 5.9.1 Function to recover from power failure When the power supply is cut due to power failure etc., this function restarts the operation when the power supply recovers, retaining the conditions before the power cut.

  • Page 79: Function To Recover From Power Failure

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.9.2 Function to recover from power failure setting and checking The table below explains the setting items of the power recovery function and the initial values. Table 5.9-1 List of set function to recover from power failure Initial value Display Item...

  • Page 80: Anti-Freezing Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.10 Anti-freezing function 5.10.1 Anti-freezing function The product can prevent the circulating fluid from freezing during winter time. If there is a possibility of the circulating fluid freezing due to changes in the installation and operating environment (operating period and weather), set the protection in advance.

  • Page 81: Anti-Freezing Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.10.2 Anti-freezing function setting and checking The table below explains the setting items of the anti-freezing function and the initial values. Table 5.10-1 List of set anti-freezing function Initial value Display Item Contents (Default setting)

  • Page 82: Key Click Sound Setting

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.11 Key click sound setting 5.11.1 Key click sound setting Set whether or not a click sound is made when keys on the operation panel are pressed. The default setting is key sound “on”. 5.11.2 Key click sound setting and checking The table below explains the setting items of the key click sound and the initial values.

  • Page 83: Temperature Unit Switching

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.12 Temperature unit switching 5.12.1 Temperature unit switching The temperature unit of the thermo-chiller can be set to centigrade ( C) or Fahrenheit ( F). This setting determines the temperature unit which is displayed/output.

  • Page 84: Pressure Unit Switching

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.13 Pressure unit switching 5.13.1 Pressure unit switching The pressure unit of the thermo-chiller can be set to MPa or PSI. This setting determines the pressure unit which is displayed/output. The default setting is MPa.

  • Page 85: Alarm Buzzer Sound Setting

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.14 Alarm buzzer sound setting 5.14.1 Alarm buzzer sound setting This sets whether a warning sound is made or not when alarm signal is output. The default setting is buzzer sound ON. 5.14.2 Alarm buzzer sound setting and checking The table below explains the setting items of the alarm buzzer sound and the initial values.

  • Page 86: Alarm Customize Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.15 Alarm customize function 5.15.1 Alarm customize function The operation and the threshold when alarm signal is output can be customized. Customers should set them depending on their applications. The alarms below can be customized. ●AL01 Low level in tank (Refer to Table 5.15-3) Operation: When this alarm signal is output, user can choose to...
  • Page 87 HRX-OM-O021 Chapter 5 Display and setting of various functions ●AL19 Communication error (Refer to Table 5.15-12 and Table 5.15-13) Operation: When this alarm signal is output, user can choose to stop/continue operation, or not to detect this alarm. “Not to detect “is default setting. Threshold change: Time at which this alarm is generated can be changed.

  • Page 88: Alarm Customize Function Setting And Checking

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.15.2 Alarm customize function setting and checking The table below explains the setting items of the alarm customize function and the initial values. Table 5.15-1 List of set alarm customize function (1/2) Initial value Display Item...
  • Page 89 HRX-OM-O021 Chapter 5 Display and setting of various functions Table 5.15-2 List of set alarm customize function (2/2) Initial value Display Item Contents (Default setting) Changing electric Set the operation when the alarm No. AL35 “Electric resistivity drop” is generated. resistivity drop Sets the detection level for the alarm of alarm Lower...
  • Page 90 HRX-OM-O021 Chapter 5 Display and setting of various functions Changing of circulating fluid discharge temperature rise Setting and checking Press the [SEL] key once. The set screen of changing of circulating fluid discharge temperature rise is displayed on the digital display. Select changing of circulating fluid discharge temperature rise from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.
  • Page 91 HRX-OM-O021 Chapter 5 Display and setting of various functions Changing of circulating fluid discharge temperature drop setting and checking Press the [SEL] key once. The set screen of changing of circulating fluid discharge temperature drop is displayed on the digital display. Select changing of circulating fluid discharge temperature drop from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.
  • Page 92 HRX-OM-O021 Chapter 5 Display and setting of various functions Changing of circulating fluid discharge pressure rise Setting and checking Press the [SEL] key once. The set screen of changing of circulating fluid discharge pressure rise is displayed on the digital display. Select changing of circulating fluid discharge pressure rise from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.
  • Page 93 HRX-OM-O021 Chapter 5 Display and setting of various functions Changing of circulating fluid discharge pressure drop Setting and checking Press the [SEL] key once. The set screen of changing of circulating fluid discharge pressure drop is displayed on the digital display. Select changing of circulating fluid discharge pressure dro from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.
  • Page 94 HRX-OM-O021 Chapter 5 Display and setting of various functions Changing of operation when communication error Setting and checking Press the [SEL] key once. The set screen of changing of operation when communication error is displayed on the digital display. Select changing of operation when communication error from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.
  • Page 95 HRX-OM-O021 Chapter 5 Display and setting of various functions Select the changing of contact input signal 1 detection from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. List of set value Table 5.15-14 Initial value Set value Explanation (Default setting)
  • Page 96 HRX-OM-O021 Chapter 5 Display and setting of various functions Select the changing of DC line fuse cut from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.15-16 List of set value Initial value Set value Explanation (Default setting)
  • Page 97 HRX-OM-O021 Chapter 5 Display and setting of various functions Select the changing of electric resistivity rise from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.15-18 List of set value Initial value Set value Explanation (Default setting) Setting/checking are not available if the...
  • Page 98 HRX-OM-O021 Chapter 5 Display and setting of various functions Select the changing of electric resistivity dropfrom the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.15-20 List of set value Initial value Set value Explanation (Default setting) Setting/checking are not available if the...
  • Page 99 HRX-OM-O021 Chapter 5 Display and setting of various functions Select temperature alarm monitoring method from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.15-22 List of set value Initial value Set value Item Explanation (Default setting) Continuous...
  • Page 100 HRX-OM-O021 Chapter 5 Display and setting of various functions Range over detection timer; Setting and Checking Press the [SEL] key once. Setting screen of the range over detection timer is displayed on the digital display. Select range over detection timer from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.

  • Page 101: Setting Of Temperature Alarm Monitoring Method And Alarm Generation Timing

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.15.3 Setting of temperature alarm monitoring method and alarm generation timing Examples of temperature alarm monitoring method setting and alarm generation timing are shown below. When "Automatic monitoring" is selected [1] Circulating fluid temperature when starting operation: Approximately 20 [2] Circulating fluid set temperature : 15 [3] "AS.21: Temperature alarm monitoring method": Select "Automatic monitoring".
  • Page 102 HRX-OM-O021 Chapter 5 Display and setting of various functions When "Automatic monitoring + Monitoring start timer" is selected [1] Circulating fluid temperature when starting operation: Approximately 20 [2] Circulating fluid set temperature : 15 [3] "AS.21: Temperature alarm monitoring method": Select "Automatic monitoring + Monitoring start timer".

  • Page 103: Data Reset Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.16 Data reset function 5.16.1 Data reset function Values set by customer are reset to default values. Accumulated operating time is not reset. All setting values are reset. It is recommended to record set data before reset. 5.16.2 Method of resetting data reset function The table below explains the setting items of the data reset and the initial values.

  • Page 104: Accumulated Time Reset Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.17 Accumulated time reset function 5.17.1 Accumulated time reset function The alarms below are generated to notify the maintenance time. The product is not stopped for alarm. Pump maintenance (AL28): Generated after 8,000h of accumulated operating time Fan motor maintenance (AL29) : Generated after 20,000h of accumulated operating time.
  • Page 105 HRX-OM-O021 Chapter 5 Display and setting of various functions Select from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Select , then the accumulated operating time of the pump is reset. The display returns to the main menu. Table 5.17-2 List of set value Initial value Set value...

  • Page 106: Communication Function

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.18 Communication function 5.18.1 Communication function The product can have contact input/output and serial communication. Refer to the Operation Manual for communication for details. 5.18.2 Communication function setting and checking The table below explains the setting items of the communication function and the initial values.
  • Page 107 HRX-OM-O021 Chapter 5 Display and setting of various functions Communication mode setting and cheking Press and hold the [MENU] key for approx. 2 sec. Repeat pressing the key until the setting screen for communication mode [ appears on the digital display. ［MENU］...
  • Page 108 HRX-OM-O021 Chapter 5 Display and setting of various functions Select serial protocol from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-3 List of set value Initial value Set value Explanation (Default setting) MODBUS protocol ○...
  • Page 109 HRX-OM-O021 Chapter 5 Display and setting of various functions Slave addresses（MODBUS） Setting and checking Press the [SEL] key once. The set screen of slave addresses (MODBUS) is displayed on the digital display. Select slave addresses (MODBUS) from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.
  • Page 110 HRX-OM-O021 Chapter 5 Display and setting of various functions Select slave addresses (simple communication protocol) from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-8 List of set value Initial value Set value Explanation (Default setting) Setting/checking are not available unless the...
  • Page 111 HRX-OM-O021 Chapter 5 Display and setting of various functions Select BCC (simple communication protocol) from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-10 List of set value Initial value Set value Explanation (Default setting) Setting/checking are not available unless the serial protocol setting is simple...
  • Page 112 HRX-OM-O021 Chapter 5 Display and setting of various functions Select parity check (simple communication protocol) from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-12 List of set value Initial value Set value Explanation (Default setting) Setting/checking are not available unless the...
  • Page 113 HRX-OM-O021 Chapter 5 Display and setting of various functions Select response delay time (simple communication protocol) from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-14 List of set value Initial value Set value Explanation (Default setting) Setting/checking are not available unless the...
  • Page 114 HRX-OM-O021 Chapter 5 Display and setting of various functions Select contact input signal 1 from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-16 List of set value Initial value Set value Explanation (Default setting) No input signal Start and stop signal input...
  • Page 115 HRX-OM-O021 Chapter 5 Display and setting of various functions Select contact input signal 1 delay timer of reading from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-18 List of set value Initial value Set value Explanation (Default setting)
  • Page 116 HRX-OM-O021 Chapter 5 Display and setting of various functions Select contact input signal 2 from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-20 List of set value Initial value Set value Explanation (Default setting) Without input signal ○...
  • Page 117 HRX-OM-O021 Chapter 5 Display and setting of various functions Select contact input signal 2 delay timer of reading from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-22 List of set value Initial value Set value Explanation (Default setting)
  • Page 118 HRX-OM-O021 Chapter 5 Display and setting of various functions Select contact input signal 1 function from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-24 List of set value Initial value Set value Explanation (Default setting) Without output signal...
  • Page 119 HRX-OM-O021 Chapter 5 Display and setting of various functions Select contact output signal 1 selected alarm from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-26 List of set value Initial value Set value Explanation (Default setting) Setting/checking are not available unless the...
  • Page 120 HRX-OM-O021 Chapter 5 Display and setting of various functions Contact output signal 2 operation Setting and checking Press the [SEL] key once. The set screen of contact output signal 2 operation is displayed on the digital display. Select contact output signal 2 operation from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”.
  • Page 121 HRX-OM-O021 Chapter 5 Display and setting of various functions Select contact output signal 3 function from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-30 List of set value Initial value Set value Explanation (Default setting) Without output signal...
  • Page 122 HRX-OM-O021 Chapter 5 Display and setting of various functions Select contact output signal 3 selected alarm from the table below with [▲] key or [▼] key, and confirm by pressing “SEL”. Table 5.18-32 List of set value Initial value Set value Explanation (Default setting) Setting/checking are not available unless the...

  • Page 123: Option J [Automatic Fluid Filling]

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.19 Option J [Automatic fluid filling] 5.19.1 Option J [Automatic fluid filling] This function is available for customers who selected automatic fluid filling. Refer “3.6 Option J Piping of【Automatic fluid filling】” for the installation of the automatic fluid filling.

  • Page 124: Option [Drain Pan Set]

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.20 Option [Drain pan set] 5.20.1 Option [Drain pan set] This function is available for customer who purchased drain pan set (part no.: HRS-WL002). For the installation of the drain pan, refer to the Operation Manual of the “Drain pan set”.

  • Page 125: Option [Drain Pan Set]

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.20.2 Option [Drain pan set] setting and checking The table below explains the setting items of the option [Drain pan set] and the initial values. Table 5.20-1 List of set option [Drain pan set] Initial value Display Item...

  • Page 126: Option [Electric Resistivity Sensor Set]

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.21 Option [Electric resistivity sensor set] 5.21.1 Option [Electric resistivity sensor set] This function is available for customer who purchased electric resistivity sensor set (part no.: HRS-DI001). For the installation of the electrical resistivity sensor set, refer to the Operation Manual of the “Electrical resistivity sensor set”.

  • Page 127: Option [Electric Resistivity Sensor Set]

    HRX-OM-O021 Chapter 5 Display and setting of various functions 5.21.2 Option [Electric resistivity sensor set] setting and checking The table below explains the setting items of the option [Electric resistivity sensor set] and the initial values. Table 5.21-1 List of set electric resistivity sensor set [Option] Initial value Display Item...
  • Page 128 HRX-OM-O021 Chapter 5 Display and setting of various functions 5.21 Option [Electric resistivity sensor set] HRS Series 5-76...

  • Page 129: Chapter 6 Alarm Indication And Trouble Shooting

    HRX-OM-MO021 Chapter 6 Alarm indication and trouble shooting Chapter 6 Alarm indication and trouble shooting 6.1 Alarm Display When any alarm occurs, the product responds with the following conditions. The [ALARM] lamp will flash. The alarm buzzer sounds. The alarm no. is displayed on PV. Contact signal of contact input/output communication is output.
  • Page 130 HRX-OM-O021 Chapter 6 Alarm indication and trouble shooting When multiple alarms are generated, the alarms are displayed one by one by pressing the [SEL] key Alarm with no.1 on the digital display SV is the latest alarm. The alarm with the highest number is the alarm that was generated first. The temperature rises gradually, and alarms are 【Example of display】...

  • Page 131: Alarm Buzzer Stop

    HRX-OM-MO021 Chapter 6 Alarm indication and trouble shooting 6.2 Alarm buzzer stop The alarm buzzer sounds to notify when the alarm signal is output. How to stop the alarm buzzer. Ensure that the alarm display screen is displayed. The alarm buzzer can only be stopped on this screen. Press [▼] and [▲] keys down simultaneously..

  • Page 132: Troubleshooting

    HRX-OM-O021 Chapter 6 Alarm indication and trouble shooting 6.3 Troubleshooting The troubleshooting method depends which alarm has been generated. Refer to’’Table 6-1 Alarm code list and Troubleshooting’’. This page explains how to reset the alarm signal condition after eliminating the cause of the alarm. Ensure that the alarm display screen is displayed.
  • Page 133 HRX-OM-MO021 Chapter 6 Alarm indication and trouble shooting Table 6-1 Alarm code list and Troubleshooting (1/2) Cause / Remedy Code Descriptioin Operation (Press the reset key after eliminating the cause.) The fluid level has fallen below the level indicator. Fill the ∗...

  • Page 134: Other Errors

    HRX-OM-O021 Chapter 6 Alarm indication and trouble shooting Table 6-2 Alarm code list and Troubleshooting (1/2) Cause / Remedy Code Descriptioin Operation (Press the reset key after eliminating the cause.) Contact input1 signal ∗ 3 AL31 ∗ 3 detection ∗ 1 Stop Contact input is detected.

  • Page 135: Chapter 7 Control, Inspection And Cleaning

    HRX-OM-O021 Chapter 7 Control, Inspection and Cleaning Chapter 7 Control, Inspection and Cleaning 7.1 Control of Circulating Fluid Quality Use specified circulating fluids only. If other fluids are used, they may damage the product or result in dangerous hazards. When using fresh water (tap water) ensure that it satisfies the water standard shown in the table below.

  • Page 136: Inspection And Cleaning

    HRX-OM-O021 Chapter 7 Control, Inspection and Cleaning 7.2 Inspection and Cleaning Do not operate switches, etc. with wet hands and do not touch the electrical parts such as the power supply plug. It might cause electric shock. Do not splash water directly on the product and do not wash with water.

  • Page 137: Monthly Check

    HRX-OM-O021 Chapter 7 Control, Inspection and Cleaning 7.2.2 Monthly check Cleaning of air vent (For air-cooled type) If the fins of the air-condenser become clogged with dust or debris, heat radiation performance reduces. This results in the reduction of cooling performance, and may stop the operation because the safety device is triggerShut off the power supply of the product when performing cleaning, maintenance or inspection.

  • Page 138: Inspection Every 3 Months

    HRX-OM-O021 Chapter 7 Control, Inspection and Cleaning Mounting of dustproof filter Insert the collar in reverse order of removal, then mount the dustproof filter. The magnet clicks when mounted. ) 7.2.3 Inspection every 3 months Replacement of circulating fluid Clean the tank and replace the circulating fluid (clean water). For the circulating fluid, select from the specification range shown in’’Table 7-1 Quality standard for fresh water (tap water)’’.

  • Page 139: Inspection For Winter Season

    HRX-OM-O021 Chapter 7 Control, Inspection and Cleaning 7.2.5 Inspection for winter season Prevention of freezing of circulating fluid The product can prevent freezing of the circulating fluid during winter or at night. If there is a risk of freezing due to a change of installation conditions and operating environment (operating time, weather etc.), conduct the following operations in advance.

  • Page 140: Stop For A Long Time

    HRX-OM-O021 Chapter 7 Control, Inspection and Cleaning 7.4 Stop for a Long Time If there is a concern that the product will not be operated for a long period of time or there is a risk of freezing, conduct the following operations. Turn off the user’s power supply (breaker).
  • Page 141 HRX-OM-O021 Chapter 7 Control, Inspection and Cleaning After the circulating fluid finishes has drained from the tank, close the ball valve at the drain port and put the tank lid back. <For the water-cooled refrigeration chiller, drain the facility water according to the procedures from 6 to 8.>...
  • Page 142 HRX-OM-O021 Chapter 7 Control, Inspection and Cleaning Refer to Fig. 7-6 Plug to the piping of the product to mount the plug to the piping of the product. Fig. 7-6 Plug to the piping of the product Connection to the drain (ball valve) When connecting piping to the drain (ball valve), fix the ball valve with a spanner.

  • Page 143: Chapter 8 Documents

    HRX-OM-O021 Chapter 8 Documents Chapter 8 Documents 8.1 Specifications List 8.1.1 Product specification Table 8-1 Specifications List [HRS050- ∗∗ -20-（BJM）] Model HRS050-A∗-20-（BJM） HRS050-W∗-20-（BJM） Air-Cooled refrigerated type Water-Cooled refrigerated type Cooling method Refrigerant R410A (HFC) Control method PID control ∗2 Temperature ：5 to 40 C、...

  • Page 144: Communication Specifications

    HRX-OM-O021 Chapter 8 Documents 8.1.2 Communication specifications Contact input/output Table 8-2 Specifications List Item Specification Connector type (for this product) MC1,5/12-GF-3,5 Insulation system Photo coupler Rated input Voltage DC24V Input signal Operating voltage range DC21.6V to 26.4V 5mA TYP Rated input current Input signal 4.7Ω...

  • Page 145: Outline Dimensions

    HRX-OM-O021 Chapter 8 Documents Outline dimensions Fig. 8-1 Outline dimensions HRS Series 8.2 Outline dimensions...

  • Page 146: Flow Chart

    HRX-OM-O021 Chapter 8 Documents 8.3 Flow Chart 8.3.1 HRS050-A∗-20-(BJM) Circulating fluid circuit Refrigeration circuit Automatic fluid filling circuit (For option with automatic fluid filling)-J Automatic fluid filling port Solenoid valve for Rc3/8 automatic fluid filling Over flow port Rc3/4 Temp sensor Circulating Tank （for return port）...
  • Page 147 HRX-OM-O021 Chapter 8 Documents 8.3.2 HRS050-W∗-20-(BJM) Circulating fluid circuit Refrigeration circuit Facility water circuit Automatic fluid filling circuit (For option with automatic fluid filling)-J Automatic fluid filling port Solenoid valve for Rc3/8 automatic fluid filling Over flow port Rc3/4 Temp sensor Circulating Tank （for return port）...

  • Page 148: Hrs050-A∗-20-(Bjm)

    HRX-OM-O021 Chapter 8 Documents 8.4 Cooling capacity 8.4.1 HRS050-∗∗-20-(BJM) 8000 8000 Ambient Ambient 7000 7000 temperature temperature 6000 6000 facility water facility water 5000 5000 temperature temperature 4000 4000 25℃ 25℃ 3000 3000 32℃ 32℃ 2000 2000 40℃ 40℃ 1000 1000 Circulating fluid temperature [℃] Circulating fluid temperature [℃]...

  • Page 149: Pump Capacity

    HRX-OM-O021 Chapter 8 Documents Pump capacity 8.6.1 HRS050-∗∗-20-(BJM) 0.70 0.60 0.50 Available area 0.40 Outlet ： 60Hz 0.30 Outlet ： 50Hz 0.20 0.10 Return port Available area 0.00 Circulating fluid flow [L/min] Fig. 8-7 Pump capacity(HRS050- ∗∗ -20-(BJM)) 8.7 Required facility water flow (For water-cooled type) HRS050-W*-20-* Facility water inlet temperature[ ℃...

  • Page 150: Compliance

    HRX-OM-O021 Chapter 8 Documents 8.8 Compliance This system conforms to the following standards. Table 8-4 Compliance EMC Directive 2004/108/EC CE Marking Machinery 2006/42/EC Directive NRTL E112803(UL61010-1) 8.8 Compliance HRS Series...

  • Page 151: Sample Doc

    HRX-OM-O021 Chapter 8 Documents 8.9 Sample DoC. Sample DoC. EC DECLARATION OF CONFORMITY Original declaration SMC Corporation__ 4-14-1 Soto-Kanda, Chiyoda-ku, Tokyo 101-0021 Japan declares under our sole responsibility that the following equipment: Thermo Chiller HRS Series _____ Serial No.: ＊o001 to ＊Z999 conforms with the following directive(s) and harmonized standards: Directive Harmonized standards...

  • Page 152: Daily Check Sheet

    HRX-OM-O021 Chapter 8 Documents 8.10 Daily Check Sheet 8.10 Daily Check Sheet HRS Series 8-10...

  • Page 153: Chapter 9 Product Warranty

    HRX-OM-O021 Chapter 9 Product Warranty Chapter 9 Product Warranty 1. Period The warranty period of the product is 1 year in service or 1.5 years after the product is delivered, whichever is first. 2. Scope For any failure reported within the warranty period which is clearly our responsibility, replacement parts will be provided.
  • Page 154 HRX-OM-O021 Chapter 9 Product Warranty 6. Request to customers Proper use and maintenance are essential to assure safe use of this product. Be sure to satisfy the following preconditions. Please note that we may refuse to carry out warranted repair if these preconditions have been disregarded.
