Chapter 1____________________________________Zaxcom Miniature Digital Recorder User's Manual

Menu System

The user interface for each unit consists of a Liquid Crystal Display with keys, as follows:
MENU
INC (up arrow)
DEC (down arrow) –  Decrement the current parameter selected by the MENU key.
PLAY
STOP
REC (RECORD)
Each menu has several pages allowing you to change configuration settings. All of these settings are stored in Flash
ROM immediately after making the change.

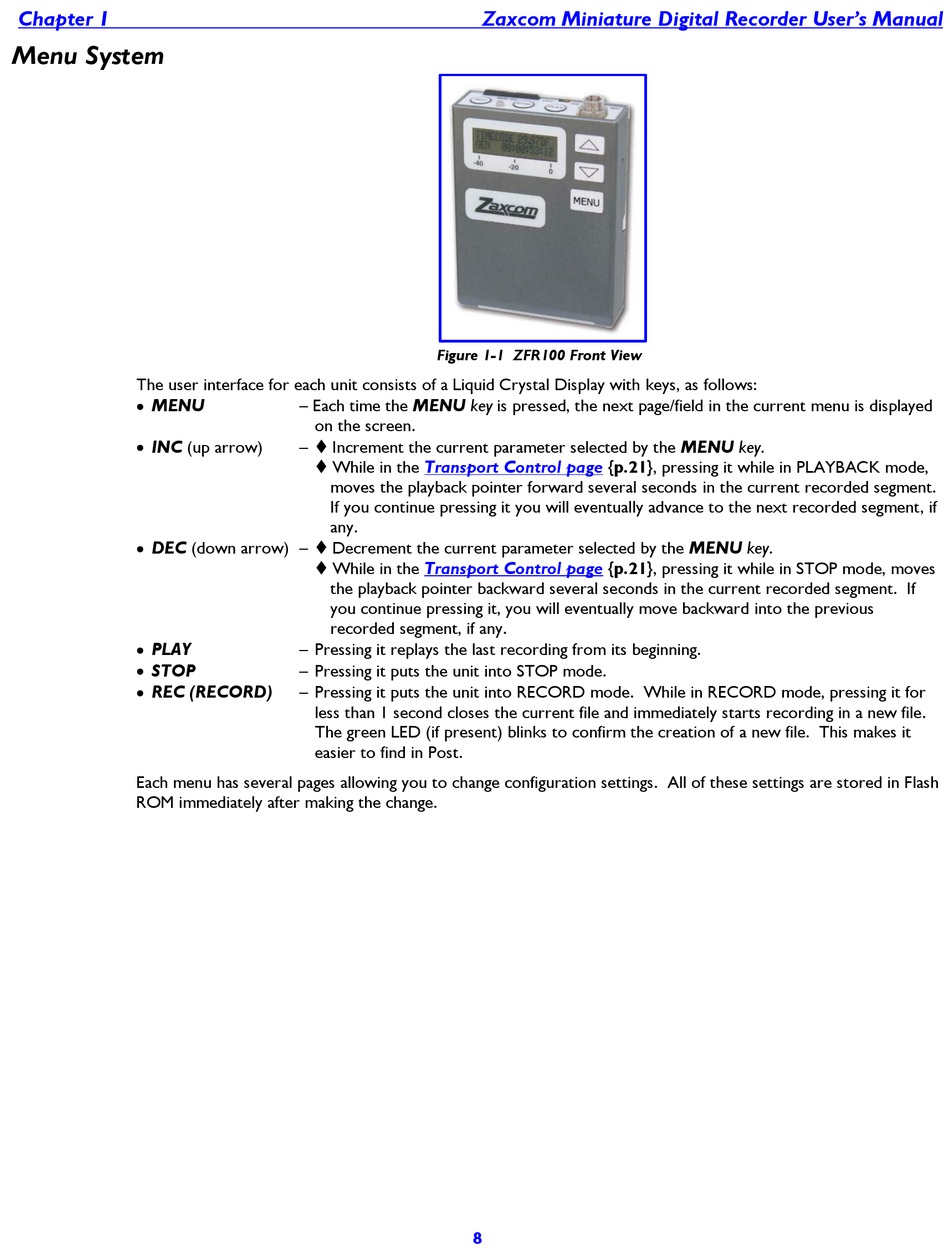

Figure 1-1 ZFR100 Front View

– Each time the MENU key is pressed, the next page/field in the current menu is displayed
on the screen.
–  Increment the current parameter selected by the MENU key.
 While in the Transport Control page
moves the playback pointer forward several seconds in the current recorded segment.
If you continue pressing it you will eventually advance to the next recorded segment, if
any.
 While in the Transport Control page
the playback pointer backward several seconds in the current recorded segment. If
you continue pressing it, you will eventually move backward into the previous
recorded segment, if any.
– Pressing it replays the last recording from its beginning.
– Pressing it puts the unit into STOP mode.
– Pressing it puts the unit into RECORD mode. While in RECORD mode, pressing it for
less than 1 second closes the current file and immediately starts recording in a new file.
The green LED (if present) blinks to confirm the creation of a new file. This makes it
easier to find in Post.
8
{p.21}, pressing it while in PLAYBACK mode,
{p.21}, pressing it while in STOP mode, moves
