Zaxcom Digital Wireless System User's Manual_______________________________________Chapter 4

STA150 Stereo Adapter

The STA150 is based on the STA100. The difference is the cables exit from the side, instead of out of the back.

EA100 Earpiece Adapter

The EA100 is used for monitoring audio (IFB or from the recording) when attached to the side of a ZFR100.

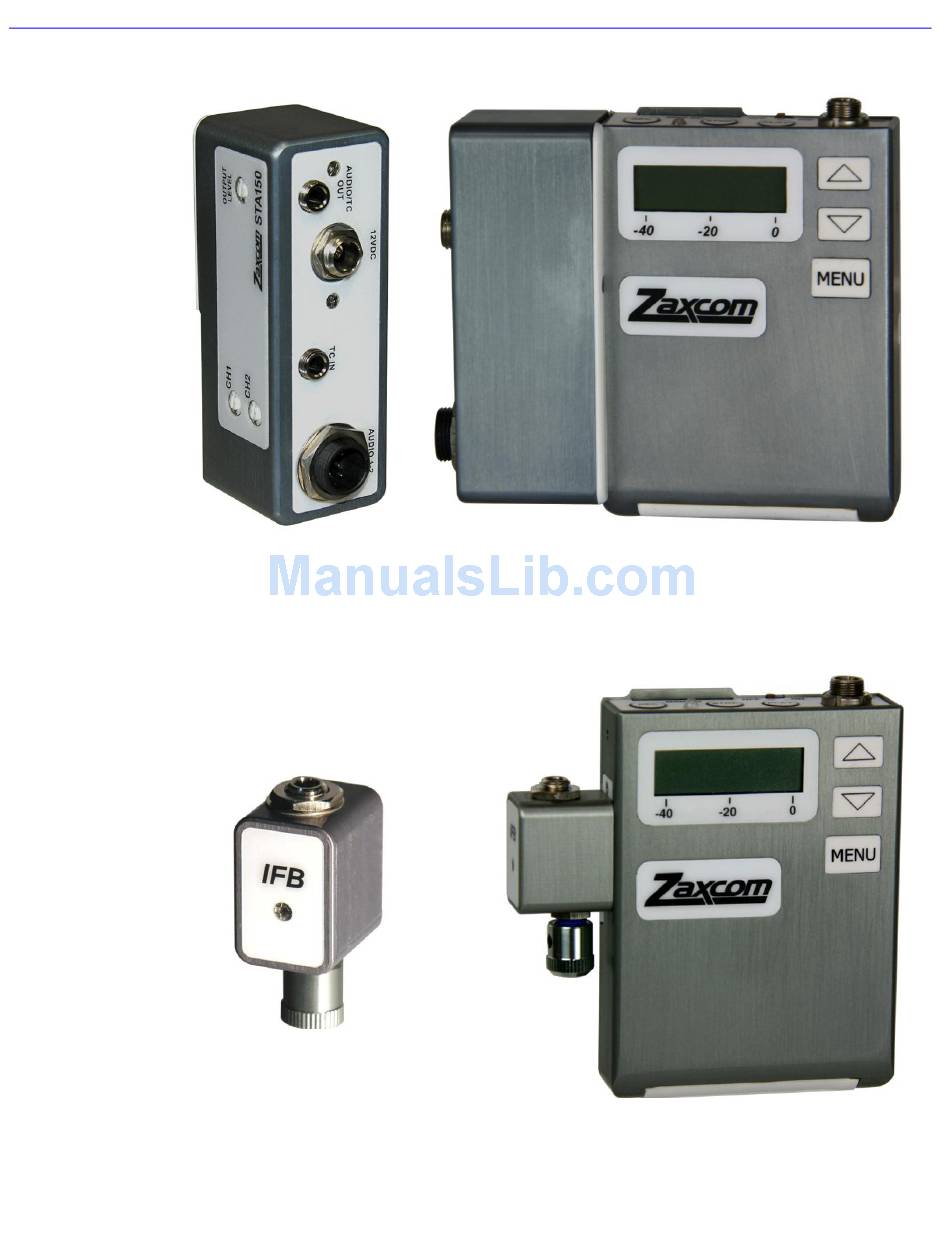

Figure 4-3 STA150 & STA150 attached to ZFR100
Figure 4-4 EA100 alone & EA100 attached to ZFR100
39
