Getting to Know Your ZFR200 Bodypack Recorder

The ZFR200 uses one AA battery (Lithium or NiMH). This section was written based on firmware version

Device Interface

Media Slot

This slot holds a media card for local recording and is protected from accidental ejection by a guard bar. To insert
a card, with the screen facing you, turn the card so the finger contacts are facing you and down toward the slot.
Insert it into the slot and press it down until you here a slight click. To remove it, press it in until you hear the
same click again.
IMPORTANT: While inserting / removing the card, if your finger slides off of the card, it could fly a respectable
distance. Be VERY care or you could lose a card containing hours of recording in an instant.

Unit Power Switch

The power switch is intentionally set below the frame of the unit to prevent accidentally turning it „OFF‟ during
use.
1. 2. 3.
1. – Unit Power Switch
2. – Media Slot
3. – 3-pin Micro-LEMO Connector
4. – Graphic LCD Screen
5. – INC key / REC key

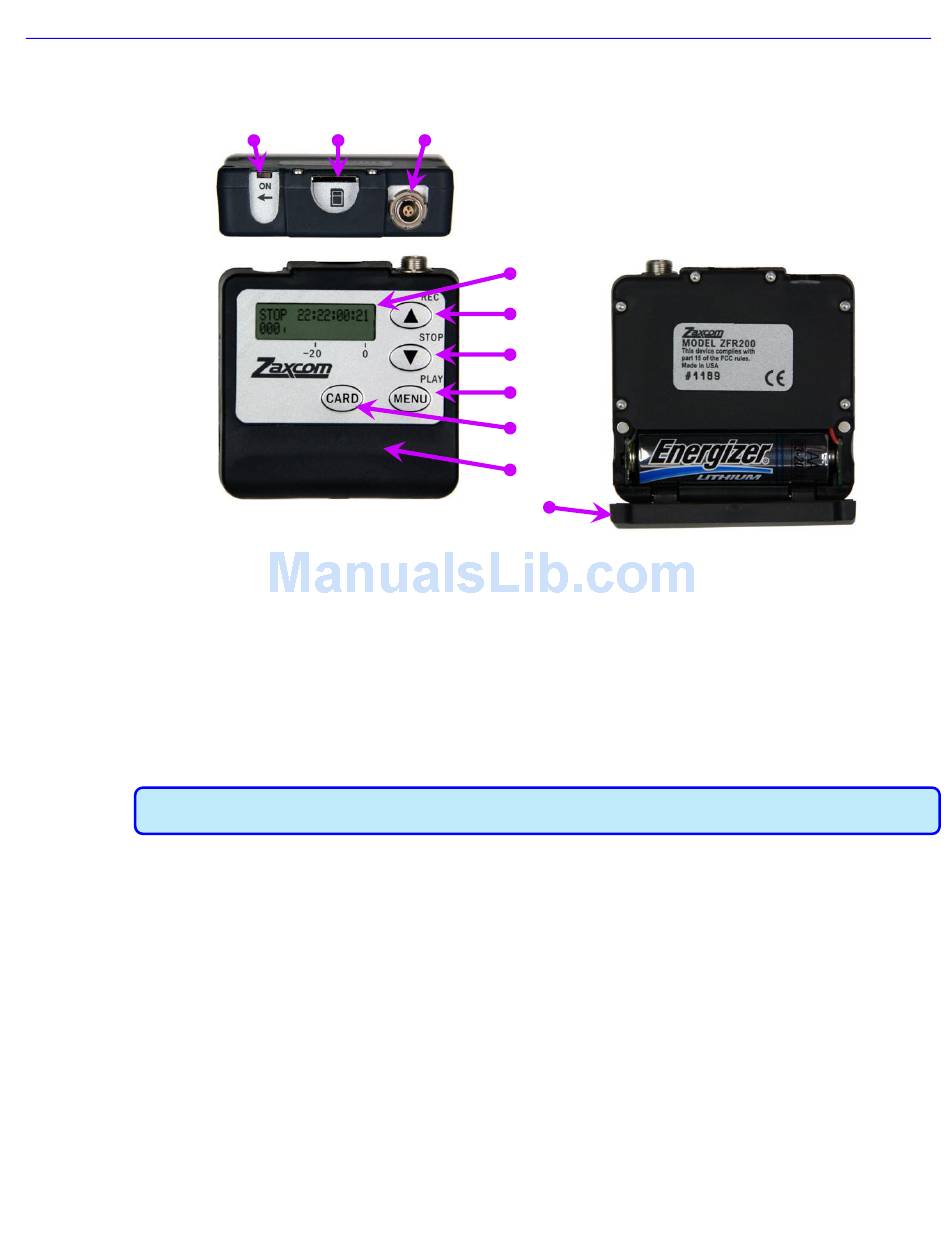

Figure 2-2 ZFR200 Top, Front and Back Views

4.
5.
6.
7.
8.
9.
10.
6. – DEC key / STOP key
7. – MENU key / PLAY key
8. – CARD key
9. – IFB Antennas and Receiver
10. – Battery Compartment Door
