Chapter 2____________________________________Zaxcom Miniature Digital Recorder User's Manual

Getting to Know Your ZFR800 Handheld Recorder

The ZFR800 uses a single CR123 battery.
Uses screw-on microphone capsules made by Shure™ and Neumann™. Be aware that to use a Neumann capsule,
a special adapter is required. Check with Zaxcom Sales for price and availability.
This section was written based on firmware version 6.10.
1.
3.
9.
1. Mic Capsule
2. Mic Body
3. Capsule Contacts
4. Body Contact Pins
5. Pad Switch (10 dB)

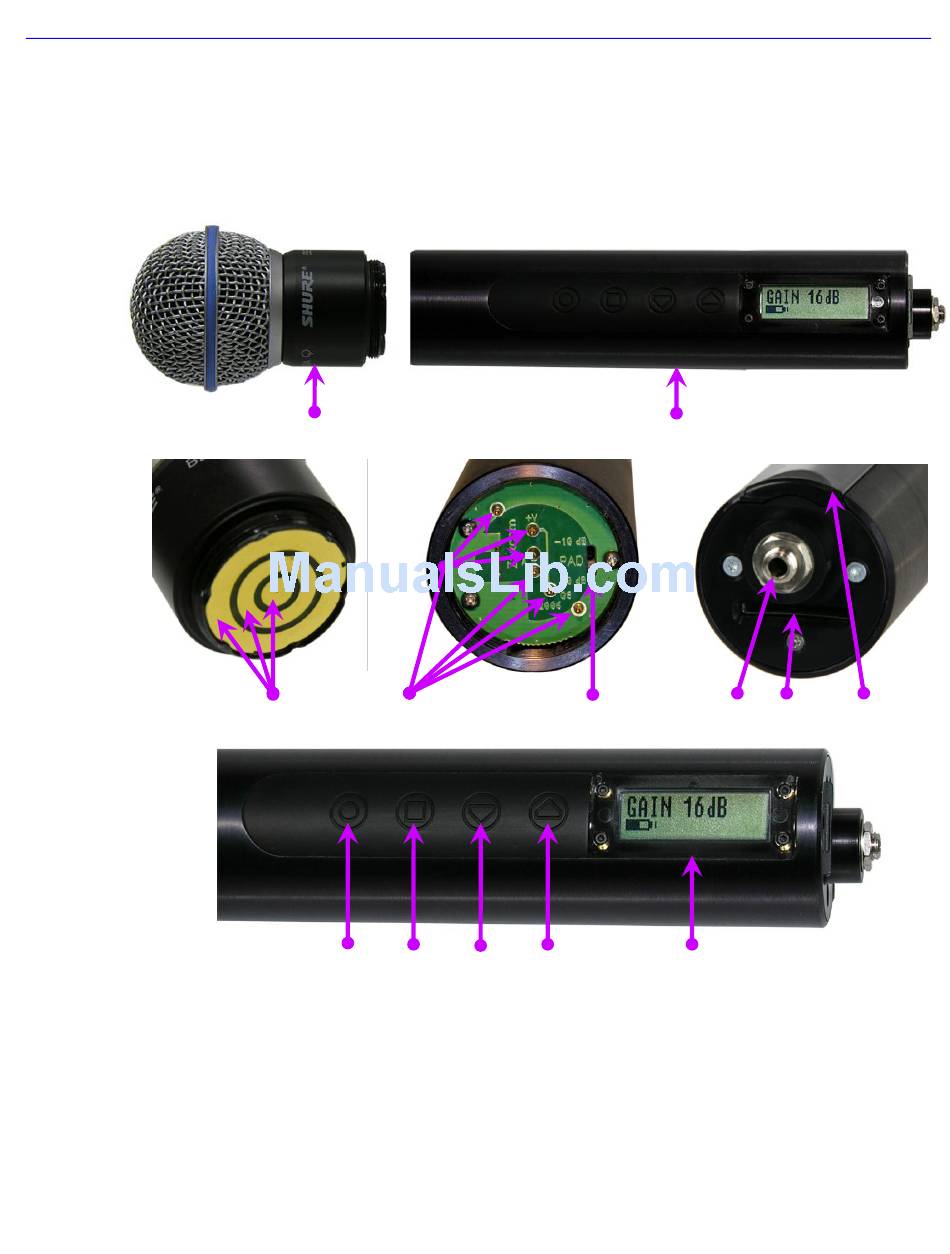

Figure 2-3 ZFR800 Side, Mic Capsule, Body Threaded End, Body Antenna End & Body Side Views
4.
10. 11. 12.
6. 1/8" headphone monitor jack
7. Media Slot
8. Battery Door (power switch inside)
9. RECORD key
10. MENU key
16
2.
5. 6.
13.
11. DEC key
12. INC key
13. LCD Screen
7. 8.
