Chapter 7____________________________________Zaxcom Miniature Digital Recorder User's Manual

STAxxx Cables

Left (Channel 1) Right (Channel 2)

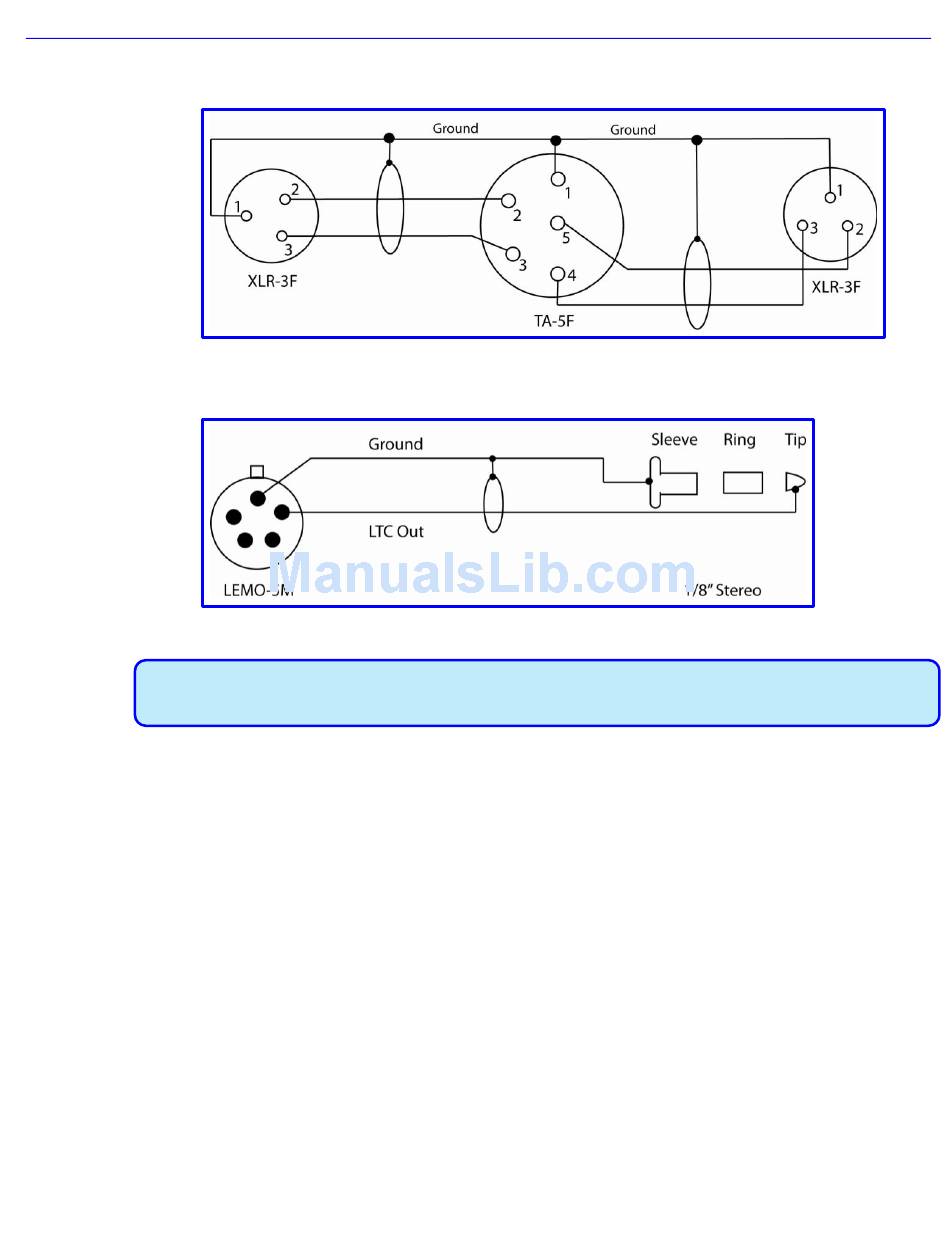

Figure 7-4 Standard XLR-3F to TA-5F Line-level input cable

Figure 7-5 LEMO-5M to 1/8" male timecode input cable

IMPORTANT: A stereo plug is required for external timecode sync. Do NOT connect to the ring on the
plug. You cannot use a mono plug. A mono plug will not destroy any components but it will short out the
signal.
46
