Chapter 1____________________________________Zaxcom Miniature Digital Recorder User's Manual

User Manual Conventions

Throughout this manual, the following conventions are used:
 STAxxx
 Cycle the power – refers to turning power to the unit „OFF‟, waiting a few seconds and then turning the power
 {p.##}
 MiniSD card

System Features

 Fault tolerant broadcast quality recording
 96 hours of audio directly on a 16 GB removable MiniSD card
 Audio recording at 24 bits/48 kHz
 Supports both record/stop and continuous loop recording
 Backlit graphic liquid crystal display
 Frequency selectable highpass filter
 Selectable peak limiter
 Lightweight rugged design
 Integrated TC reader/generator accurate to 1 frame in 6 hours
 Efficient keypad for one-handed operation
 Integrated timecode reception (ZFR100 only)
 RF remote control of recorders (ZFR100 only):
o Audio gain (Raise/Lower)
o Recording (Start/Stop)
 Battery runtime:
o ZFR100
o ZFR800
o IFB100
 Size and weight:
o ZFR100
o ZFR800:
 Body
 Capsule (ex.)
o IFB100

Menu System

The user interface for each unit consists of a Liquid Crystal Display with 3 keys, as follows:
 MENU
 INC (up arrow)
 DEC (down arrow) – Decrement the current parameter selected by the MENU key.
Each menu has several pages allowing you to change configuration settings. All of these settings are stored in Flash
ROM immediately after making the change.
– refers to the STA100 and STA150.
„ON‟.
– refers to the page number on which the item can be found.
– refers to any approved card in
– up to twenty hours on two AA Lithium batteries
– up to ten hours on one CR123 battery
– no internal batteries, always runs on external power
(H x W x D – while looking at the screen)
– 3.31" x 2.3" x 0.65"
– 6.12" x 1.5"
– 3.0" x 3.0"
– 3.44" x 3.88" x 0.9"
– Menu page/function select: press once to move to the next menu page.
– Increment the current parameter selected by the MENU key.

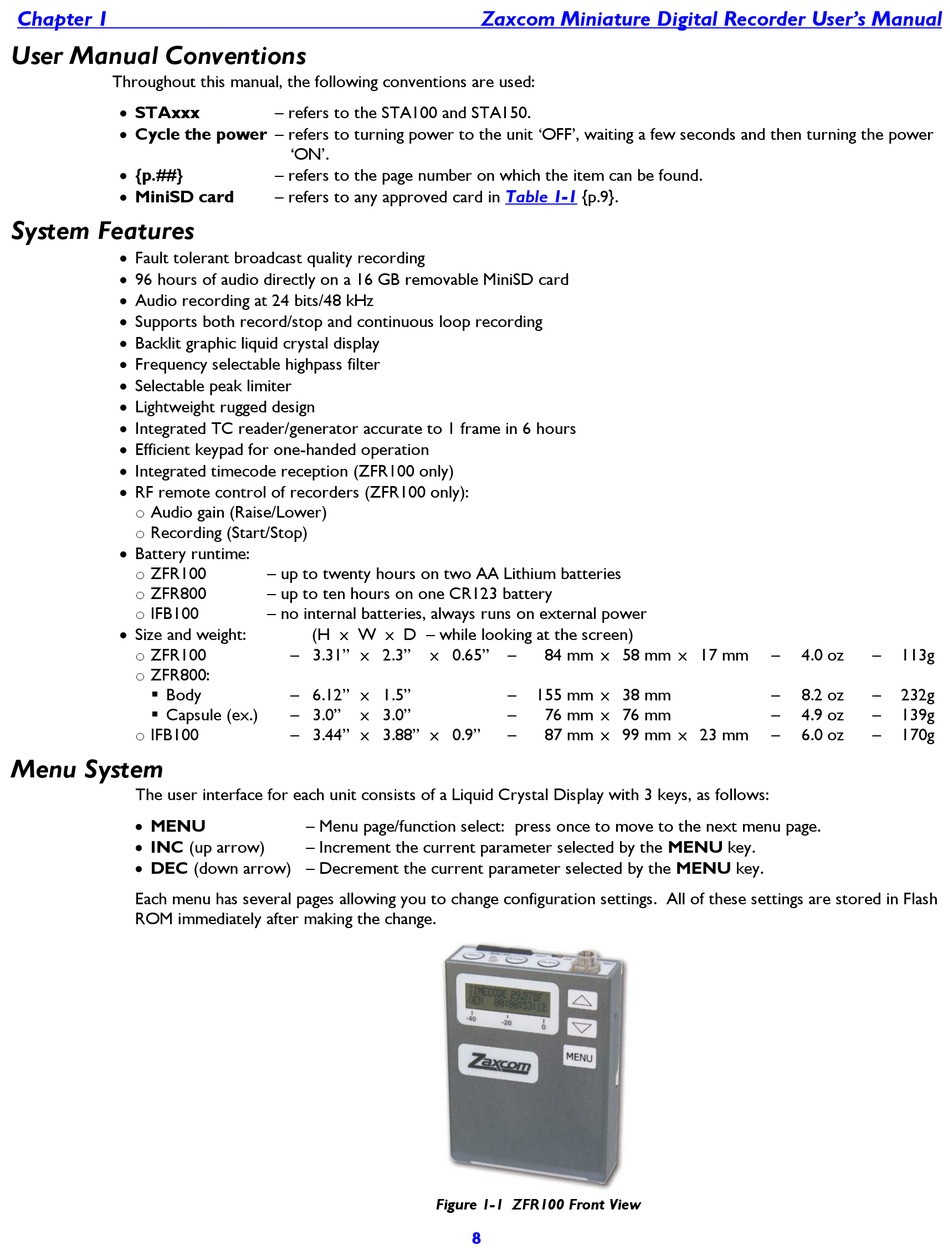

Figure 1-1 ZFR100 Front View

Table 1-1 {p.9}.
– 84 mm x 58 mm x 17 mm
– 155 mm x 38 mm
– 76 mm x 76 mm
– 87 mm x 99 mm x 23 mm
8
– 4.0 oz – 113g
– 8.2 oz – 232g
– 4.9 oz – 139g
– 6.0 oz – 170g
