Zaxcom Miniature Digital Recorder User's Manual____________________________________Chapter 2

Getting to Know Your ZFR800 Handheld Recorder

The ZFR800 uses a single CR123 battery.
Uses screw-on microphone capsules made by Shure™ and Neumann™. Be aware that to use a Neumann capsule,
a special adapter is required. Check with Zaxcom Sales for price and availability.
1.
3.
9.
1. Mic Capsule
2. Mic Body
3. Capsule Contacts
4. Body Contact Pins
5. Pad Switch (10 dB)

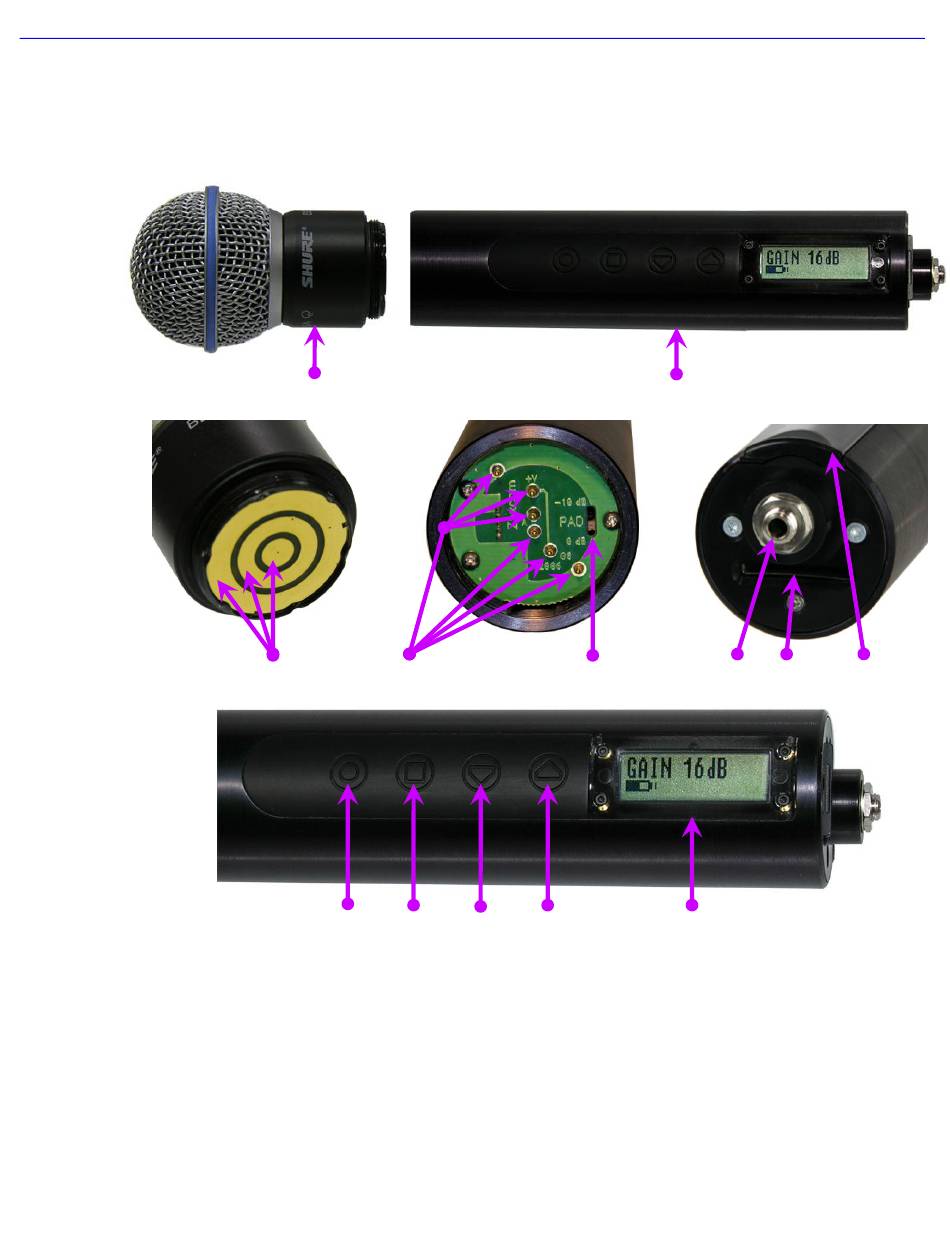

Figure 2-2 ZFR800 Side, Mic Capsule, Body Threaded End, Body Antenna End & Barrel Views
4.
10. 11. 12.
6. 1/8" headphone monitor jack
7. MiniSD Media Slot
8. Battery Door (power switch inside)
9. RECORD Key
10. MENU Key
15
2.
5. 6.
13.
11. DEC Key
12. INC Key
13. LCD Screen
7. 8.
