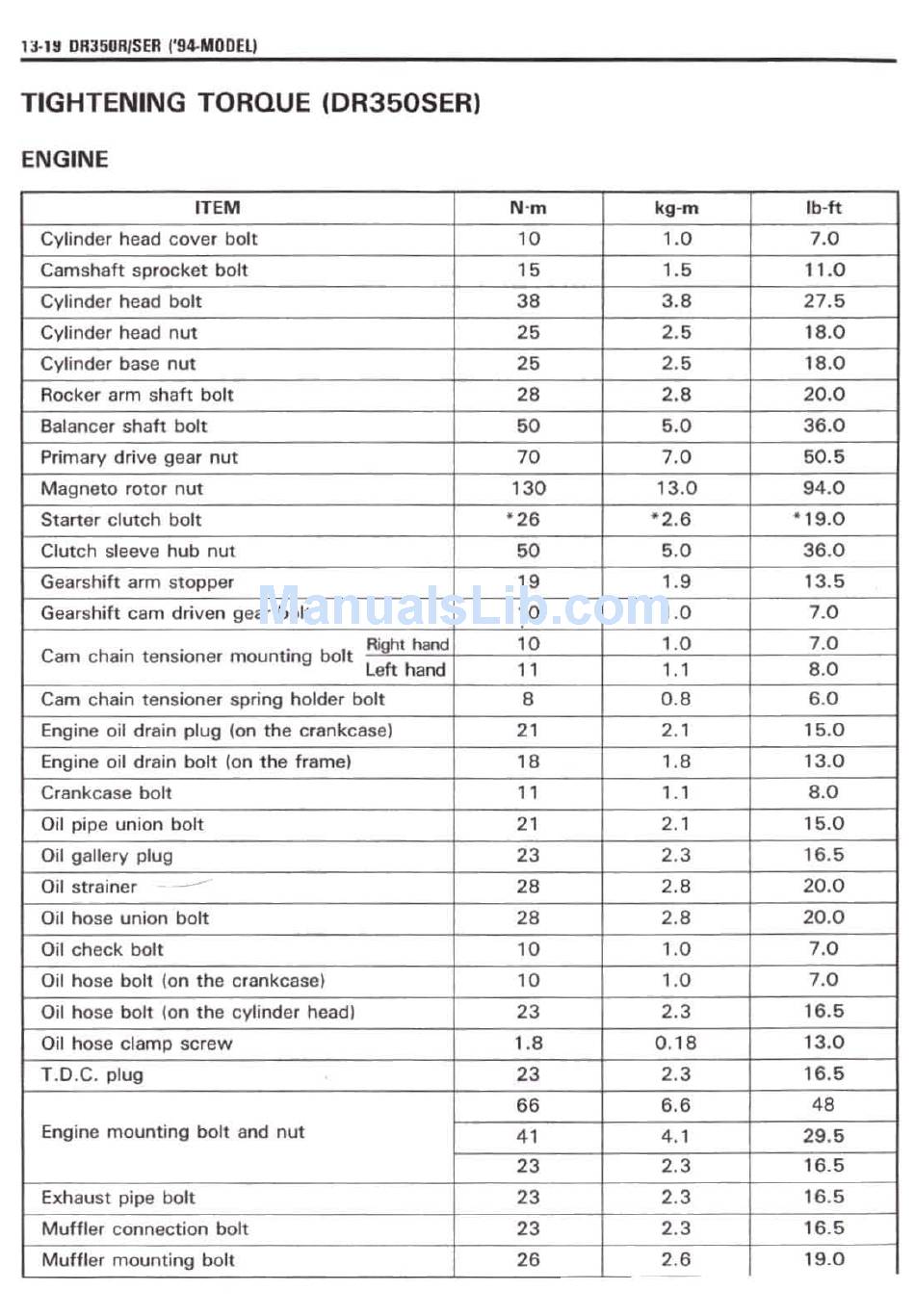

TIGHTENING TORQUE (DR350SER)
ENGINE
ITEM
N 'm
kg ~m Ib-It
Cylinder head cover bolt
10 1.0
7.0
Camshaft sprocket bolt
15 1.5 11.0
Cylinder head bolt
38
3.8
27.5
Cylinder head nut
25 2.5 18.0
Cylinder base nut
25 2.5 18.0
Rocker arm shaft bolt
28 2.8
20.0
Balancer shaft bolt
50
5.0 36.0
Primary drive gear nut 70 7.0
50.5
Magneto rotor nut
130 13.0
94.0
Starter clutch bolt
'26
"2.6
' 19 .0
Clutch sleeve hub nut
50
5.0 36.0
Gearshift arm stopper
19 1.9
13.5
Gearsh ift cam driven gear boh
10 1.0 7.0
Cam chain tensioner mounting bolt
Right hand
10
1.0 7.0
Left hand
1 1
1 . 1 8.0
Cam chain tensioner spring holder bolt 8 0.8 6 .0
Engine oil drain plug (on the crankcase)
21 2 . 1 15.0
Engine oil drain bolt (on the frame
I 18 1.8 13.0
Crankcase bolt
11 1 . 1 8 .0
Oil pipe union bolt
21 2 . 1 15.0
Oil gallery plug 23 2.3
16.5
Oil strainer
-
28 2.8 20.0
Oil hose union bolt 28 2 .8 20.0
Oil check bolt
10 1.0 7.0
Oil hose bolt (on the crankcase) 10
1.0 7.0
Oil hose bolt (on the cylinder head)
23 2.3 16.5
Oil hose clamp screw
1.8 0 .18 13.0
T.D.C. plug 23 2 .3 16.5
66
6.6 48
Engine mounting bolt and nut
41 4 . 1 29.5
23 2 .3
16.5
Exhaust pipe bolt
23 2.3
16.5
Muffl er connection bolt
23 2 .3
16.5
Muffler mounting bolt
26 2 .6
19.0
