Cylinder heads

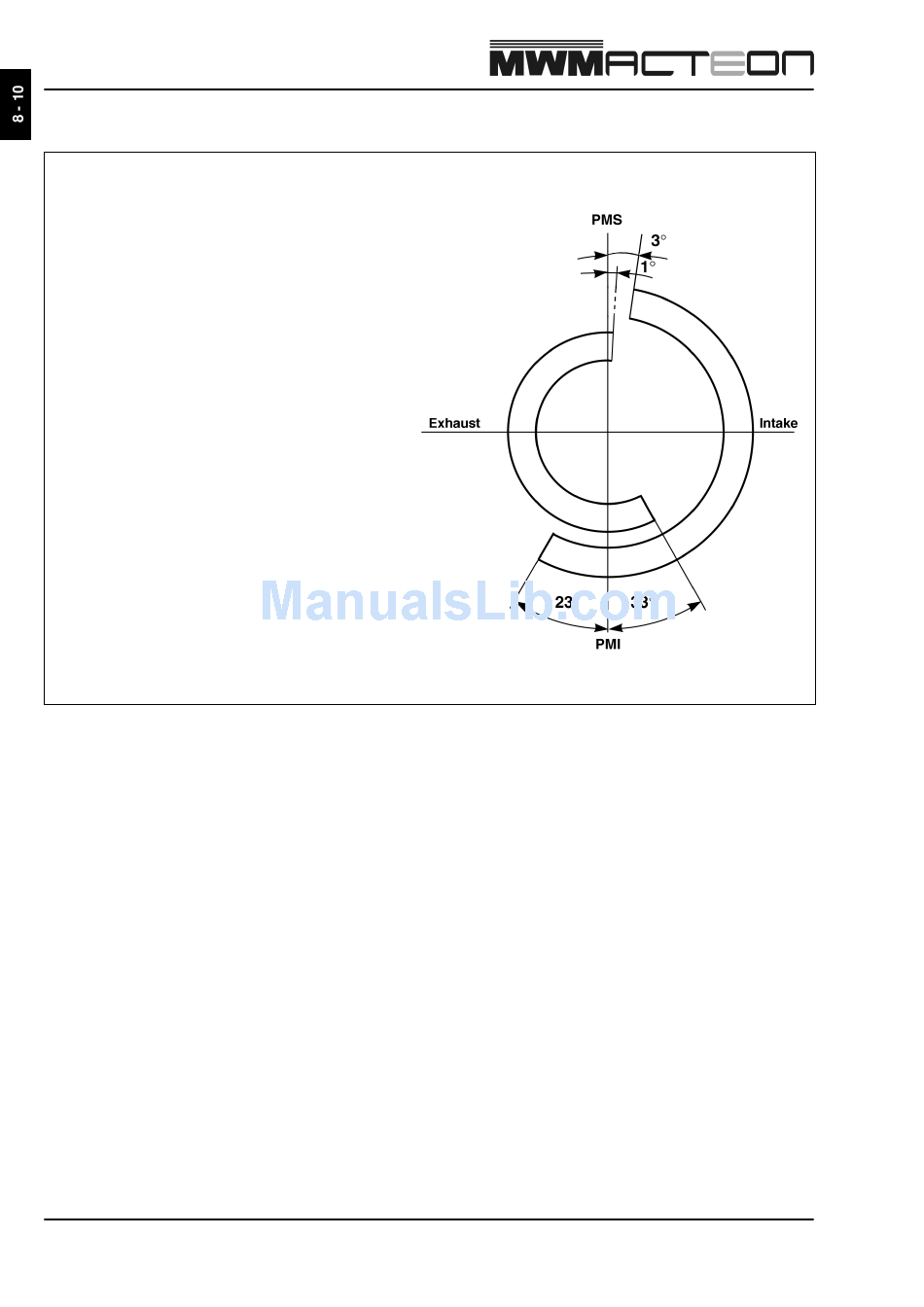

Valves Diagram
Valves clearance: 1 mm
(After the check, readjust the clearance to 0.40 mm)
Intake:
Open 3° after TDC
Close 23° after PMI
Exhaust:
Open 33° before PMI
Close 1° after TDC
Tolerance:
± 3°
9.612.0.006.7160 - 05/04
