Intake, Exhaust and Turbocharger System

Assembly

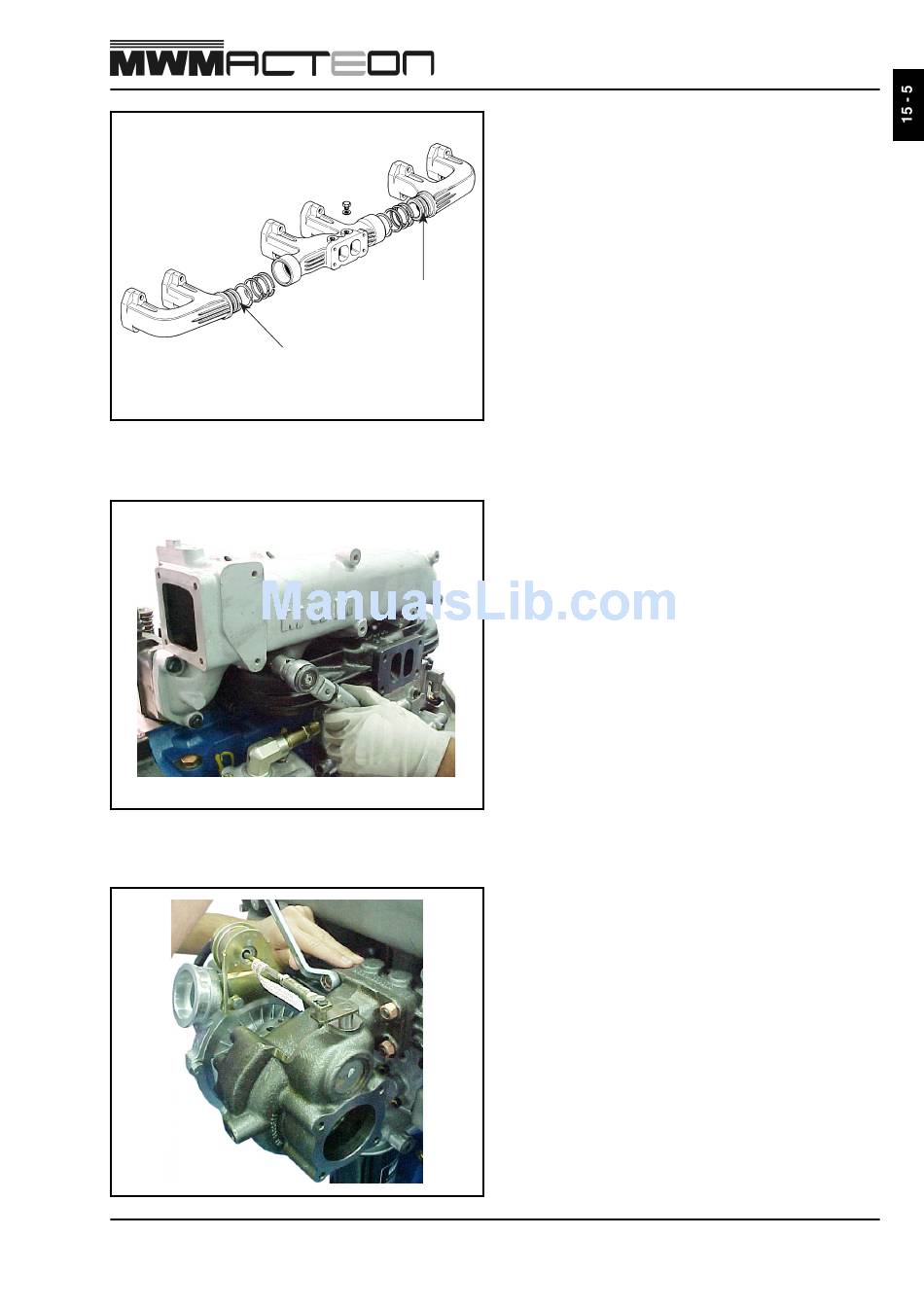

During the assembly of the exhaust tripartite manifold,
use sealant on the sealing rings. Do not use an
excessive amount in order to do not remain residues
that could cause damages to the turbocharger. After
applying the product, join the manifold parts and
assembly on the cylinder heads, so that the drying
occurs with the manifold already assembled.
Assembly exhaust manifold with all new gaskets.
Tighten the bolts according to the specification from
the centre to the edges.
After assembly the manifold, assembly turbocharger
fixation studs.
Apply the specified torque.
Retighten the bolts after the 1st operation of the engine.
Assembly the turbocharger. Apply the specified torque.
Retighten the bolts after the 1st operation of the engine.
After assembly the turbocharger, assembly the fixation
studs of the exhaust elbow.
Apply the specified torque.
