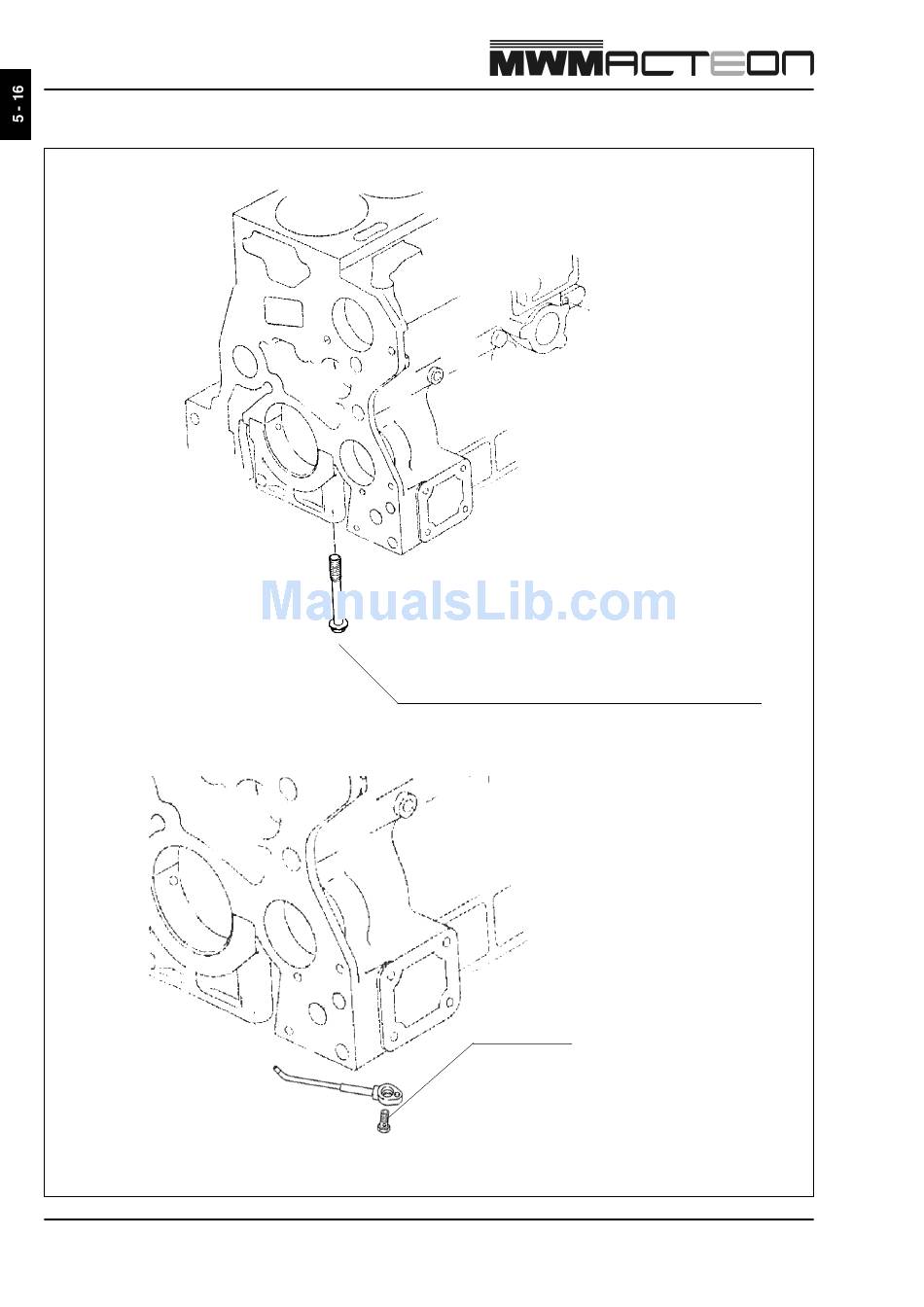

Crankshaft
Bolts Tighten Torque Specification
Main Bearing Caps
Torque - Angle
Step
1st: .................................. 45 Nm ± 5
2nd: ................................. 90° ± 5°
Lmax = 133.50 mm
Piston Oil Injector
10 ± 1.5 Nm
9.612.0.006.7160 - 05/04
