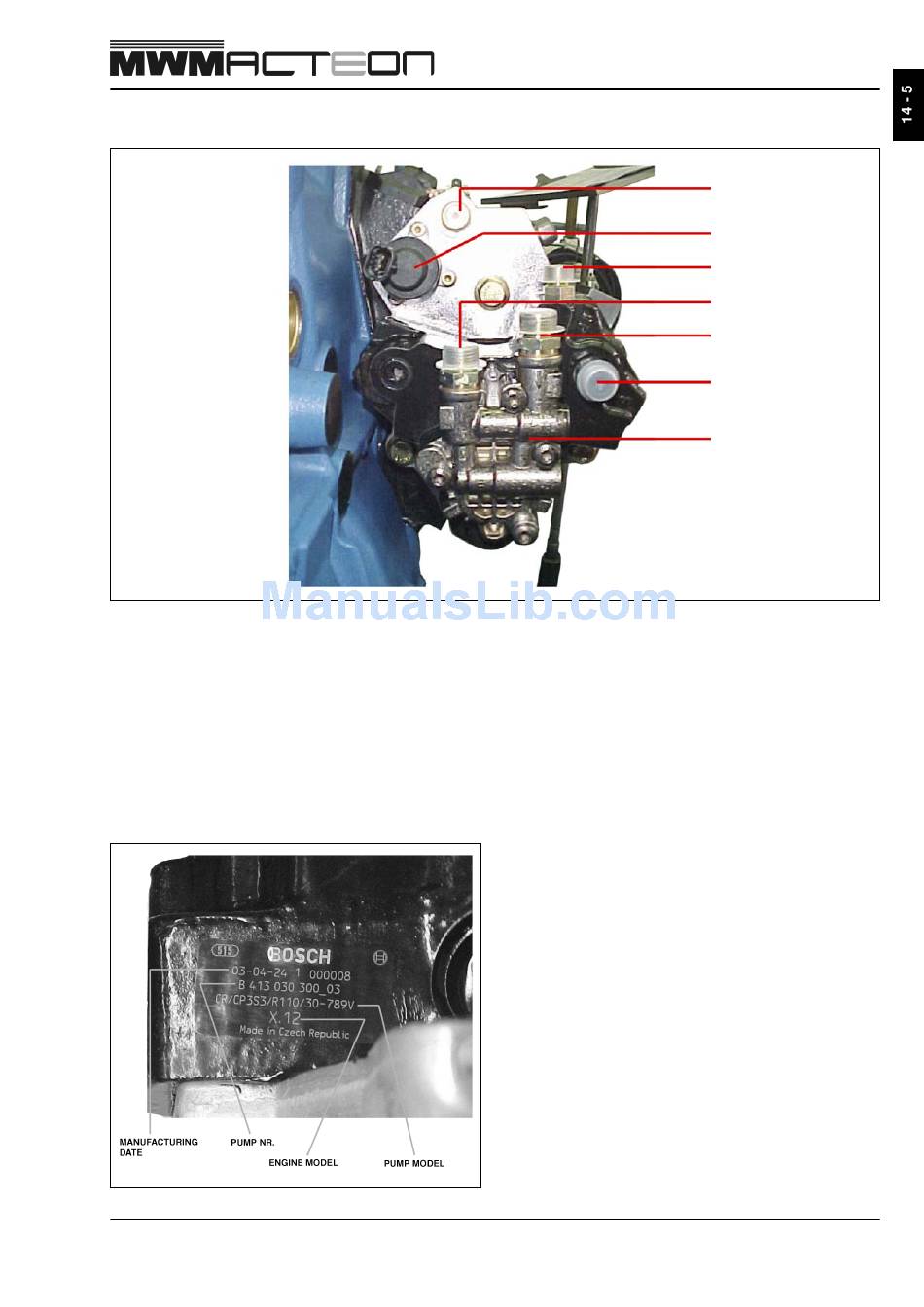

Cp 3.3 Pump - Rear Part View - MWM Acteon Workshop Manual

A - Filter fuel inlet
B - Rail pressure control valve (m-prop)
C - Fuel return to the tank
D - Fuel outlet to filter
E - ECM cooler fuel inlet
F - Fuel outlet to the Rail
G - Fuel lift pump
9.612.0.006.7160 - 05/04
CP 3.3 Pump – Rear Part View
BCP 3.3 – Identification Plate
The identification plate of the high-pressure fuel pump
is important to help in the tracking of the component
and to indicate its origin.
The loss can delay or even cancel the warranty of the
product.
Fuel Injection System
