Crankshaft

Disassembly Notes

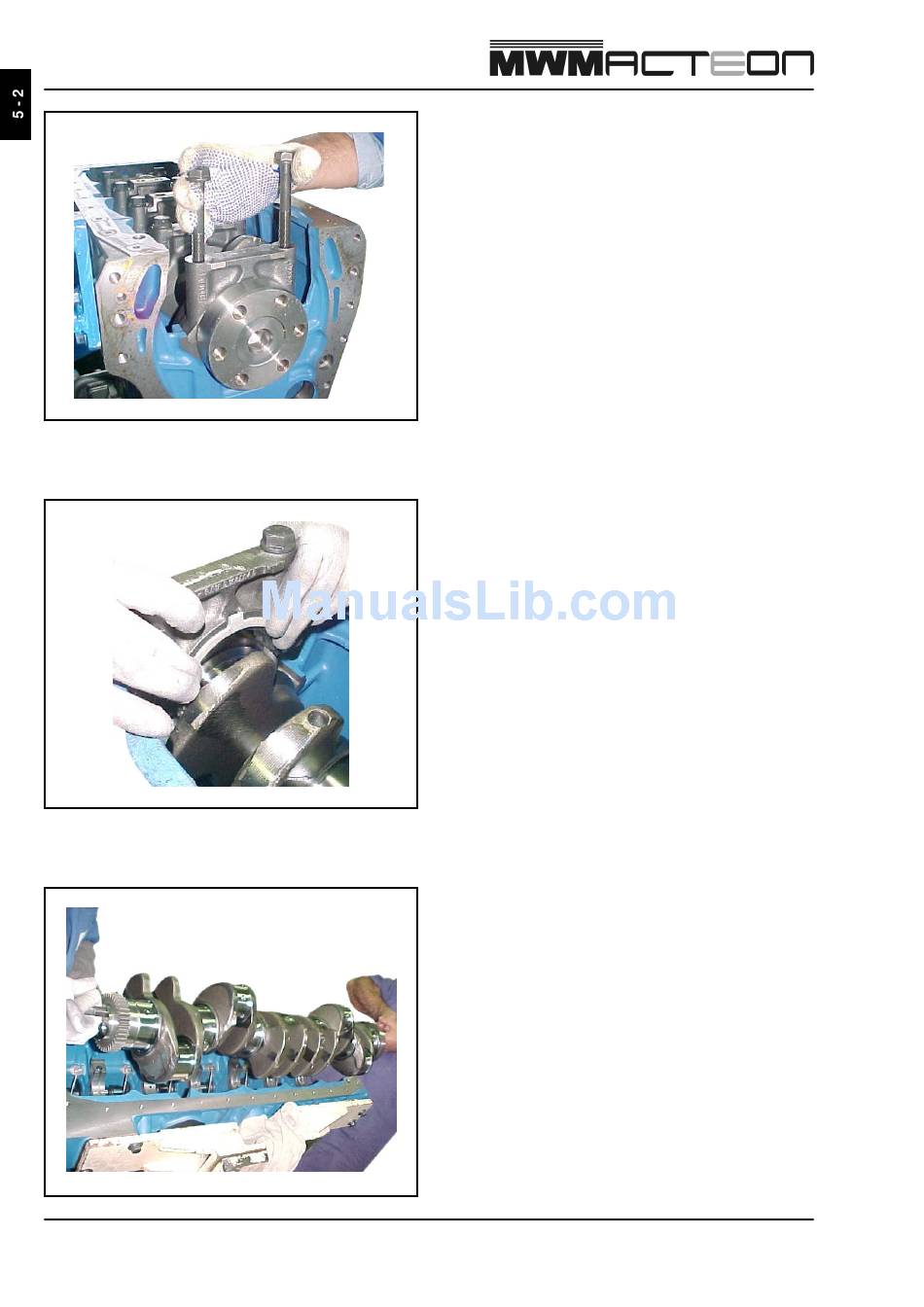

After removing the carter, pistons and connecting rods,
flywheel and pulley, position the engine on the stand
in upright position and loosen the main bearing caps.
To remove the bearing caps use the fixation bolts.
Remove the axial thrust ring from bearing #1 (flywheel
side).
Carefully remove crankshaft in order to do not hit on
any part of the engine block, avoiding damaging it.
The storage of the crankshaft must always be done
in upright position, avoiding any warping possibility.
