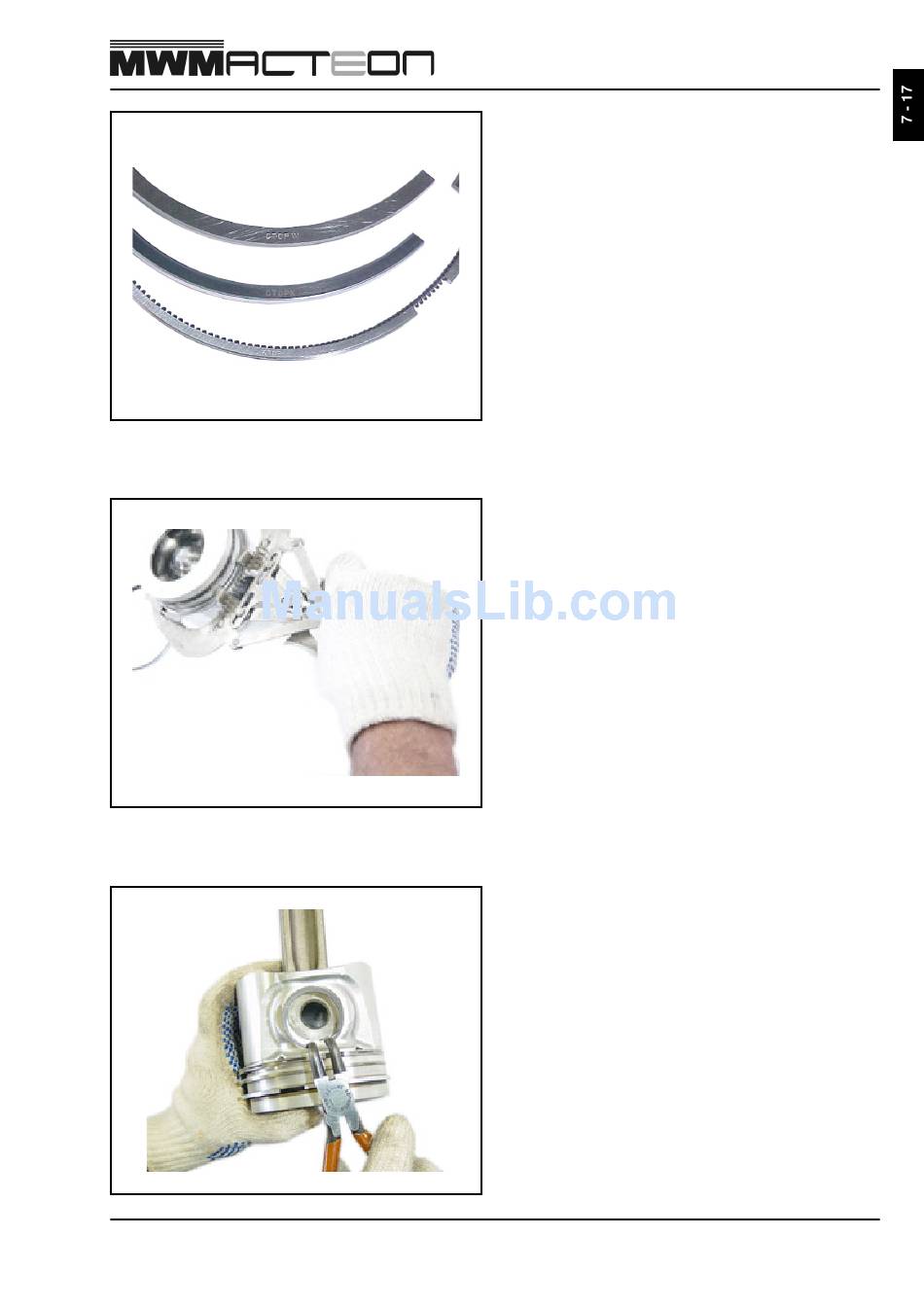

Pistons and Connecting Rods

Assembly

The "CTOPW", "CTOPK" and "CTOP" marks must be
upward.
Assembly the piston rings.
Lubricate piston pin, assembly the piston in the
connecting rod, observing the correct positioning
between them. The arrow on the top of the piston must
be toward the side of the 3 holes of the connecting
rod.
Clean the backs of the bearing shells and assembly
on the stem and on the connecting rod cap that also
must be clean.
