Cylinder heads

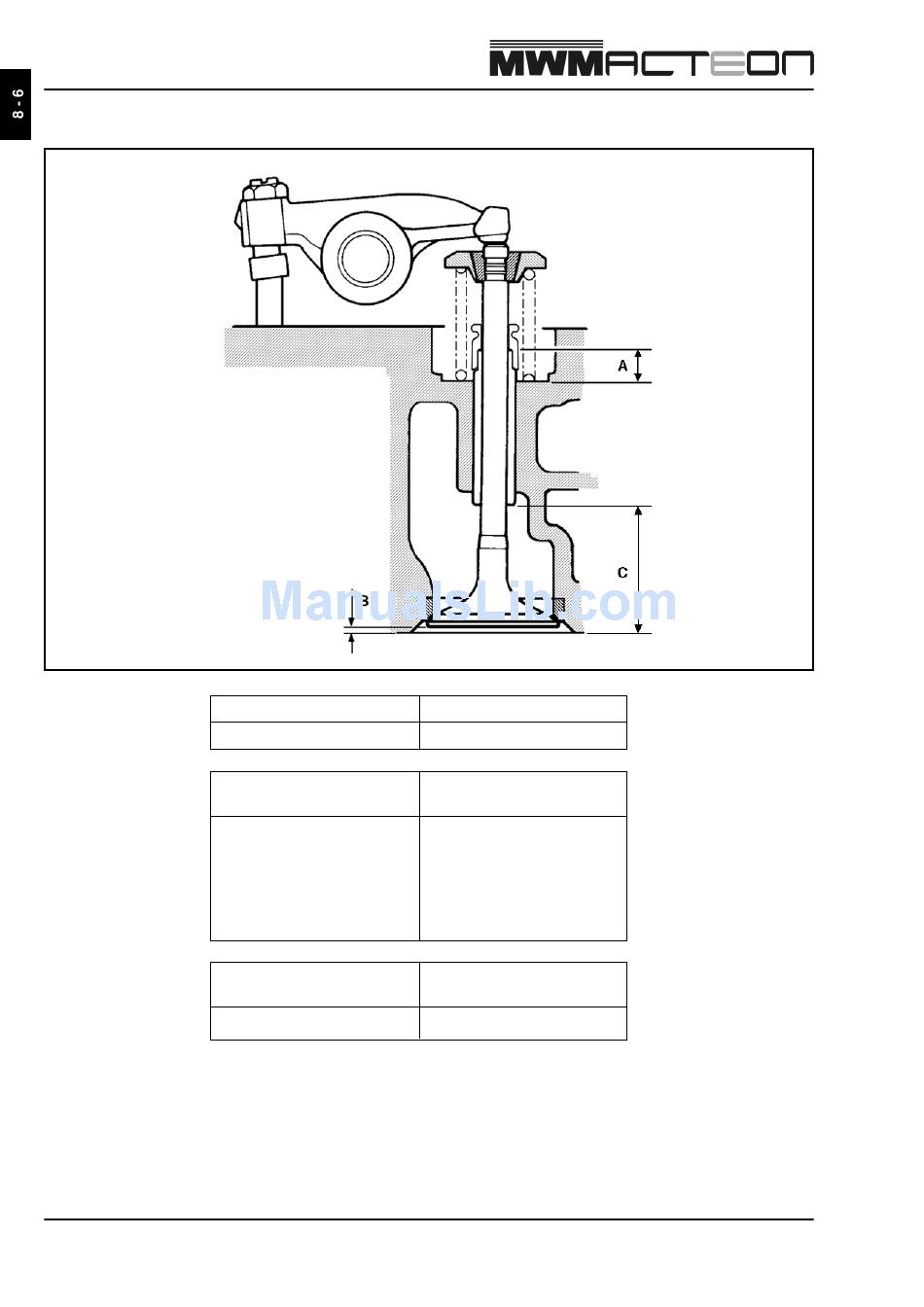

Specification of Guide Height and Distance to Cylinder Head Surface

Guide Height (A)
Intake and Exhaust
Distance to cylinder
head surface (B)
Nominal
Intake
Exhaust
Maximum
Intake
Exhaust
Guide height to cylinder
head face (C)
Intake and Exhaust
(mm)
11.3 - 12.6
(mm)
0.8 - 1.1
1.30 - 1.60
1.35
1.85
(mm)
45.0
9.612.0.006.7160 - 05/04
