Crankshaft

Pre-Assembly Inspections and
Measurements
Crankshaft
Crankshaft, as well as the bearings, can be visually
checked. It is necessary to check for overheating
signs, deep scratches, cracks or other types of
damage.
Presenting anyone of these damages it is necessary
to check the possibility of machining and to use
oversized bearing shells.

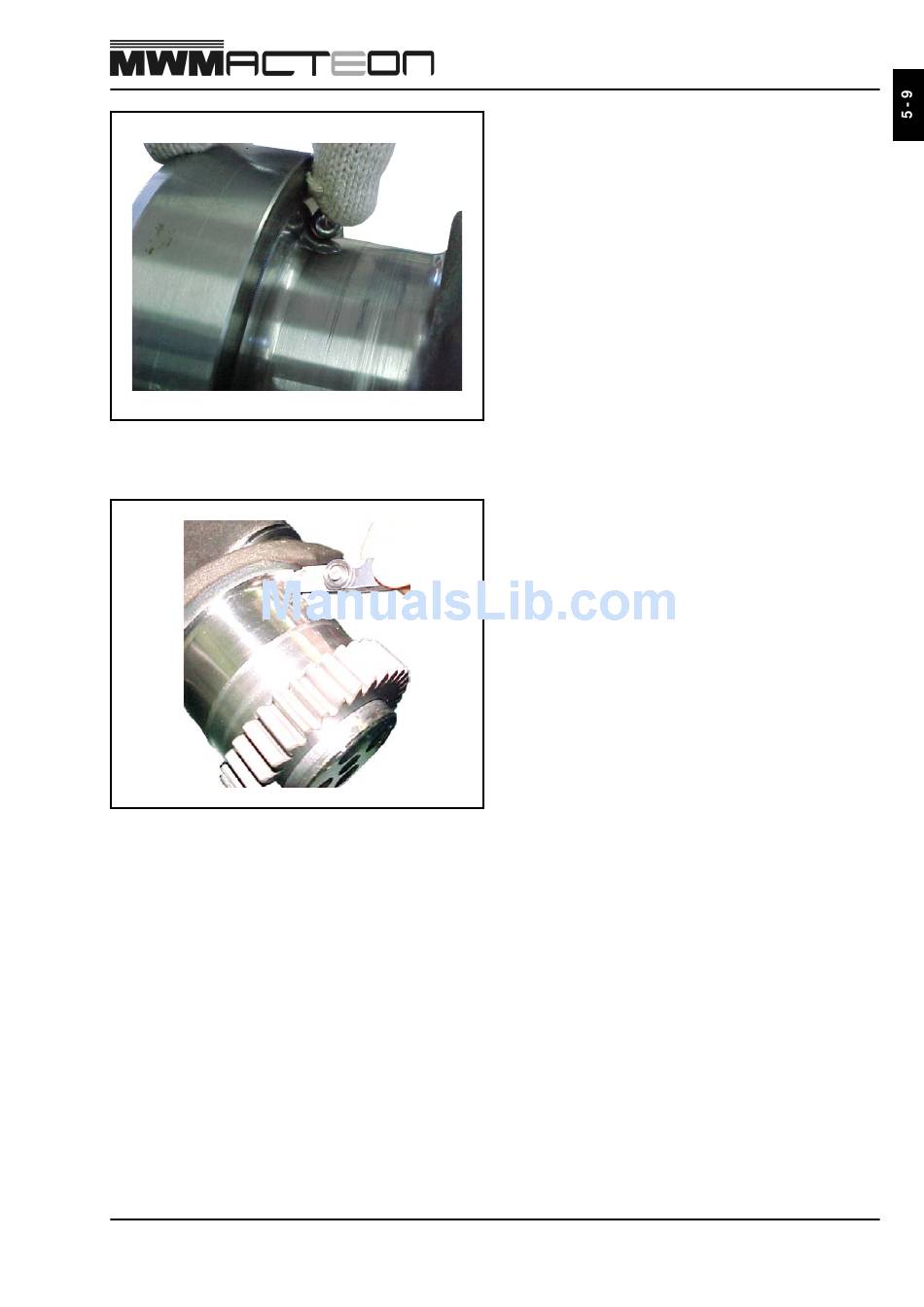

Measure the fillets with a calibrated sphere.
The measurement of the fillets can also be performed
with a radius shim.
