Fuel Injection System

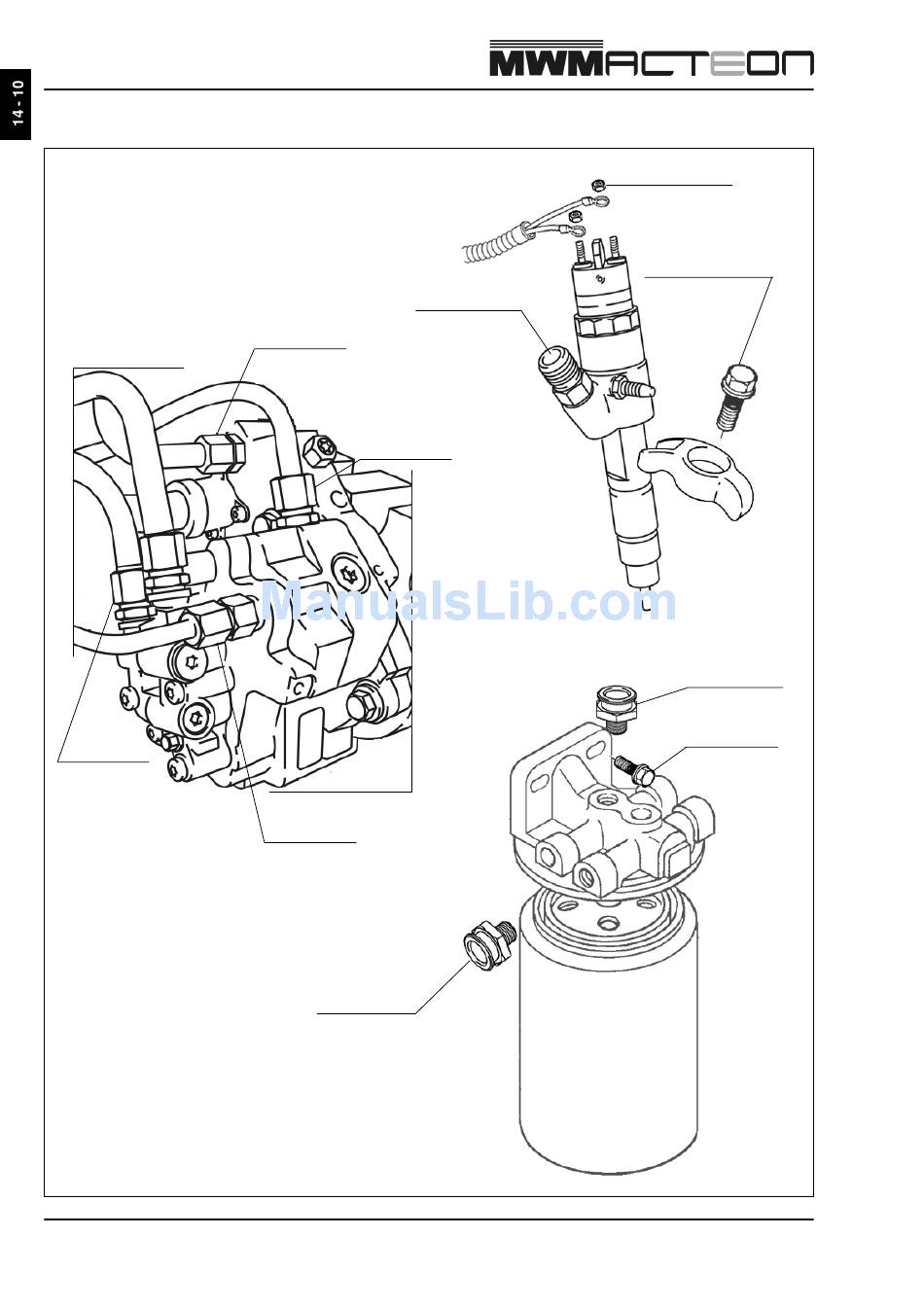

Bolts Tightening Torques Specification

1 - Fuel return
2 - Fuel filter/CP 3.3 Pump
3 - Cooler/CP 3.3 Pump
4 - CP 3.3 Pump/Fuel Filter
5 - CP 3.3 Pump/Rail
2
3
4
5
25 ± 2 Nm
25 - 3 Nm
25 ± 2 Nm
25 ± 2 Nm
1
25 ± 2 Nm
20 + 6 Nm
1.5 ± 0.25 Nm
1st) 14 ± 1 Nm
2nd) 55° ± 2° Nm
20 + 6 Nm
40 ± 6 Nm
9.612.0.006.7160 - 05/04
