Troubleshooting From The Vowifi Handset Internal Web Administration Page - ASCOM i62 Configuration Manual

Configuration Manual
Ascom i62 VoWiFi Handset

10.3 Troubleshooting from the VoWiFi Handset Internal Web Administration Page

It is possible to view statistics for Voice and WLAN connectivity and to create debug and
error logs from the internal web administration page. The logs and the statistics can then be
interpreted by your supplier.
1 In a web browser, enter the VoWiFi Handset´s IP address to access the internal web
administration page for the VoWiFi Handset. The IP address can be found in the
VoWiFi Handset´s menu (Settings >Device info >Network info).
2 Click the "Troubleshoot" button.
3 If needed, enter administration user name and administration password to access
further pages.
Default user name and password for an administrator:
• User name: admin
• Password: changeme
In the Troubleshoot view, the following can be shown (see
• Debug log
• Error log
• Voice calls statistics
• WLAN connectivity statistics

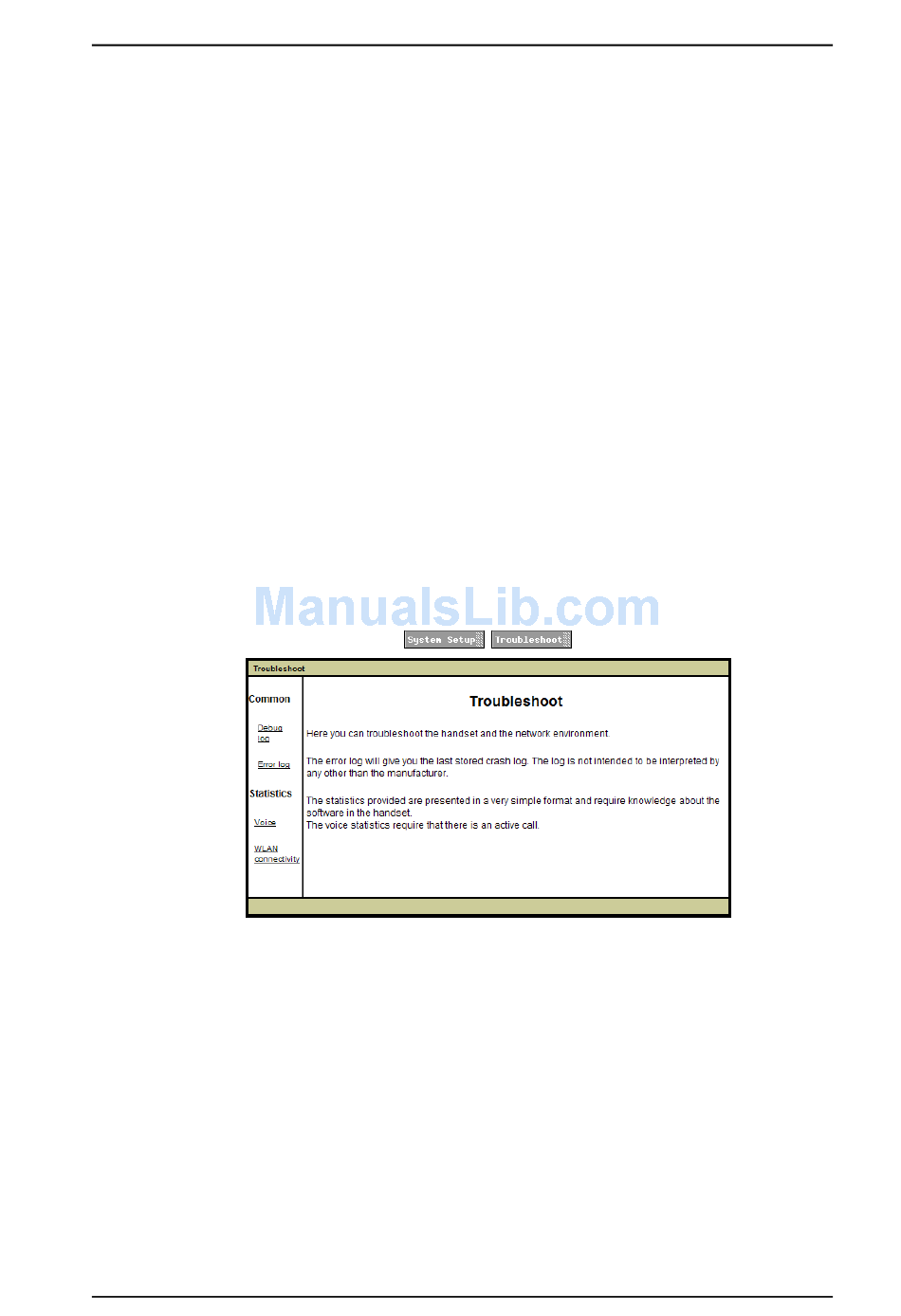

Figure 12. Troubleshoot page
9 December 2011/ Ver. D
12. Figure
TD 92675EN
figure 12 on page 68):
68
