- Page 1 QUICK REFERENCE GUIDE ASCOM i62 VoWiFi HANDSET INCLUDING SAFETY INSTRUCTIONS...
- Page 2 Multifunction/Alarm button Volume buttons Headset connector Display Shows time and icons Shows date and icons Mute button Shows the soft key Soft keys function Five-way Confirmation key navigation key Call key End key and On/off Voice mail Alphanumeric keys Sound off key Key lock and upper/lower case Microphone...
- Page 3 Call diverted Software update Locked keypad Locked entry (e.g. company phonebook) Locked handset Push-To-Talk Indicates that the handset is a i62 Talker model Indicates that the handset is a i62 Messenger model Indicates that the handset is a i62 Protector model...
-
Page 4: Product Presentation

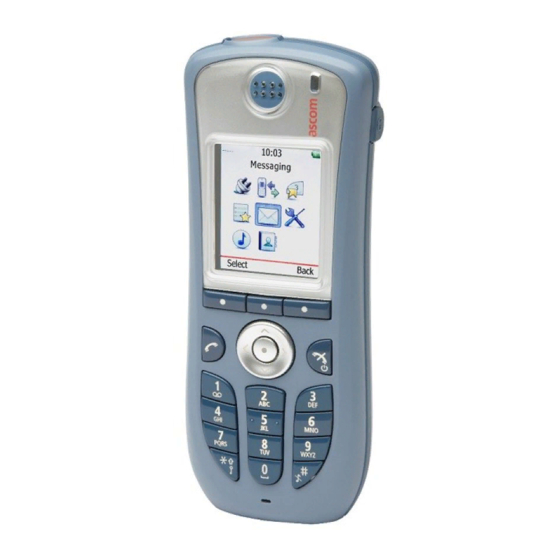

Product presentation The i62 VoWiFi Handset is a feature-rich handset with colour display, telephony, messaging. It supports the WiFi standard a/ b/g/n radio. The handset functions are license dependant and are available in three versions: i62 Talker, i62 Messenger, and i62 Protector with alarm. -
Page 5: Basic Functions
Basic functions Switch the handset on/off Press and hold the End key to switch the handset on or off. When switching the handset off, “Switch off?” is displayed, press “Yes”. Make a call Dialling can be made in the following ways: •... - Page 6 A short press on the Sound off key or a press on the Mute button before answering a call, silences the ring signal. Lock/Unlock the keypad manually Press the *-key to lock/unlock and then Soft key "Lock/ Yes”. The “Locked keypad” icon indicates a locked keypad.
-
Page 7: Menu Operation
Menu Operation For descriptions of all functions, see User Manual, Ascom i62 VoWiFi Handset TD92599. Messaging 13:00 Calls Short cuts Connections Services Settings Contacts Profiles Back Select Use the Navigation key to move around in the menu structure. The menus for Messenger and Protector are; “Connections”, “Calls”, Short cuts”, “Services”, “Messaging”, “Settings”,... - Page 8 The Multifunction button can also be programmed for different functions with the use of long press and double press.* *This function is applicable for i62 Talker and Messenger only. Messaging Note: Messenger and Protector version only Receive a text message When a text message is received, the LED starts flashing and a message tone sounds.
- Page 9 icon will change to ). The icon will remain in the display until all new messages are opened. If the message is received during a call, a beep notifies the user. It is possible to reply, forward the message, call the sender, and call a number included in a text.
-
Page 10: Alarm Operation
Settings Turn the automatic keypad lock on/off Enter “Settings” , and step to “Locks”. Select “Automatic key lock Off/On”, select “On/Off”, and press “Back”. A locked keypad is indicated by the icon To unlock, press , and then the "Yes” Soft key. Turn the vibrator on/off Press the “Menu”... -
Page 11: Safety Instructions
Safety instructions For safe and efficient operation of the handset, observe the guidelines given in this Quick Reference Guide and all necessary safety precautions when using the handset. Follow the operating instructions and adhere to all warnings and safety precautions located on the product, and the User Manual. -
Page 12: Regulatory Compliance Statements
This equipment is intended to be used in the whole EU & EFTA. This equipment is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC and 2009/125/EC (Eco Design). The Declaration of Conformity may be consulted at: https://www.ascom-ws.com/doc/ The handset is marked with the label... - Page 13 Restrictions for Wireless LANs Indoor and Max Power Indoor Frequency Band (MHz) Level (EIRP)(mW) Outdoor ONLY and Channel 2400-2483.5 2400-2483.5 1-13 1-13 5150-5350* 5150-5350* 36-64 36-64 5470-5725* 5470-5725* 1000 1000 100-140 100-140 * Dynamic Frequency Selection and Transmit Power Control is required in the 5250 to 5350-MHz and 5470 to 5725-MHz frequency range.
- Page 14 Regulatory Compliance Statements (USA and Canada only) FCC ID: BXZWH1 3724B-WH1 9FVIPNANWH1 FCC compliance statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 15: Environmental Requirements
0.689 located or operating in conjunction with any other antenna or transmitter. Use of non-Ascom approved accessories may violate the FCC RF exposure guidelines and should be avoided. Information to user This device complies with Part 15 of the FCC Rules Operation is... - Page 16 • If the handset has been exposed for water or condense, remove the battery immediately and let it dry completely before re-inserting the battery. • Keep the handset away from strong electromagnetic fields. • Do not place a cold handset in a charger. Battery •...
- Page 17 Accessories The following accessories for the i62 are available: Leather casing incl. belt clip Belt clip, swivel type Standard clip Desktop chargers Headset with microphone on boom Also available: • Headset with microphone on cable • Hearing protection 2.5 Peltor •...
- Page 18 [ www.ascom.com...
