3. INSTALLATION

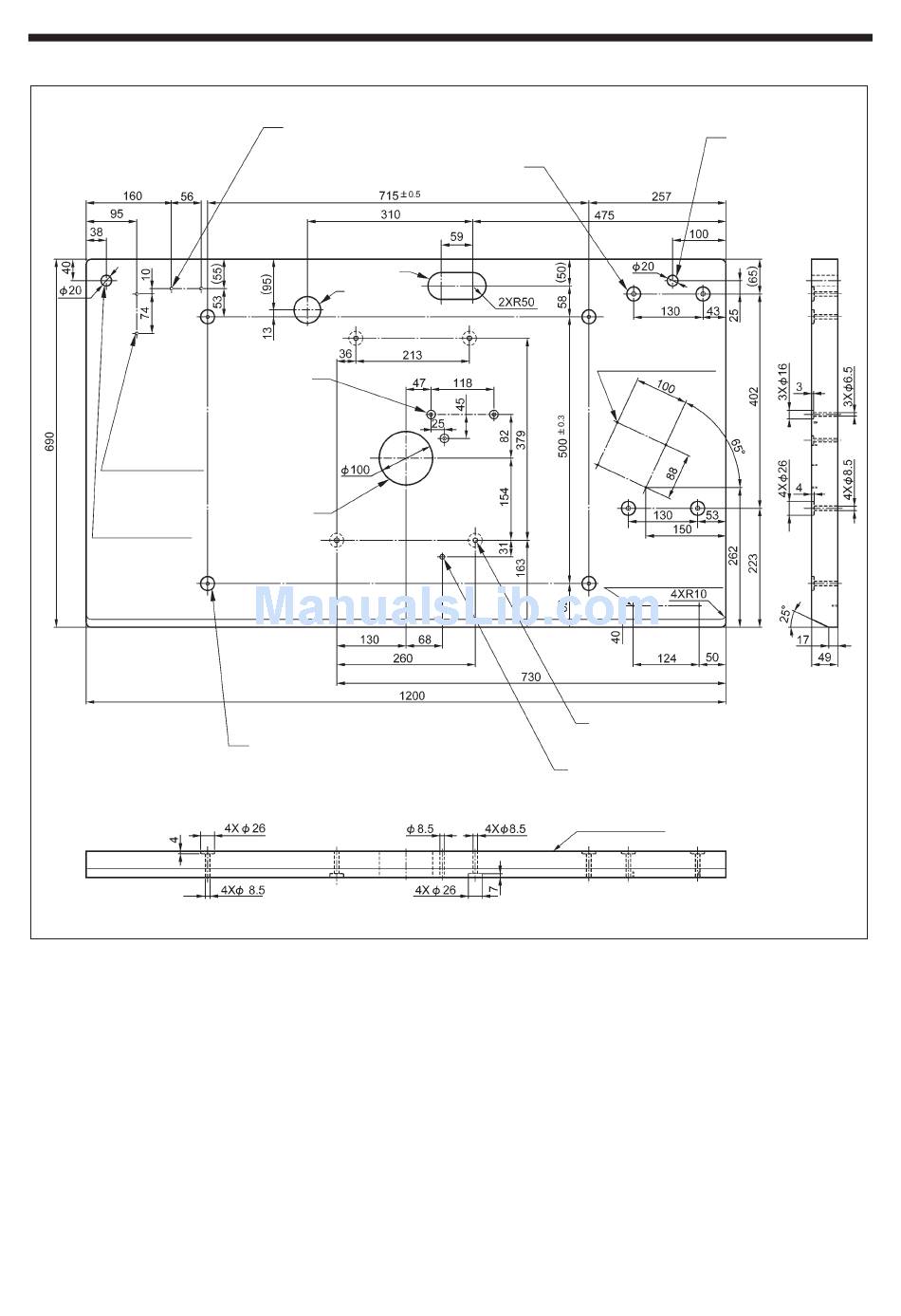

3-1-1. When setting up on top of the table

2 x 4 mm dia.
20 depth
(From underneath
table)
For valve unit
For cotton stand
5
2 x 4 mm dia. 20 depth
(from underneath table)
For pneumatic unit
For cords
For cords
Φ50
For treadle unit
For oiler
For table leg
For control box
For bed base
For provisionally holding
bed base
Melamine veneer panel
RH-9820
For operation panel cord
4 x 2 mm dia. 10 depth
For operation panel
2 x 2 mm dia. 10 depth
(from underneath table)
For power switch
