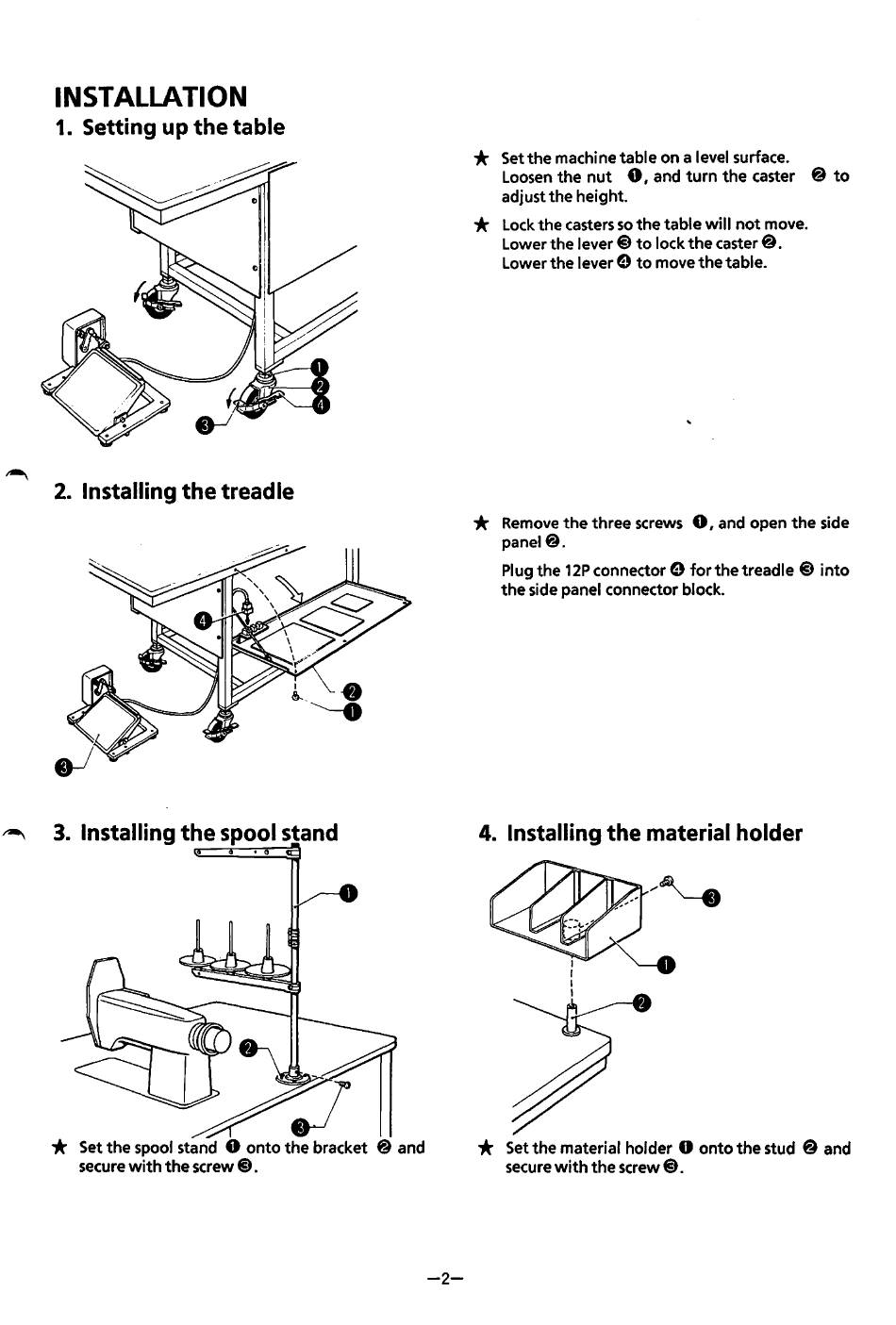

INSTALLATION
1. Setting up the table
2. Installing the treadle
-2-
*
Set the machine table on a level surface.
Loosen the nut
0
I
and turn the caster
@
to
adjust the height.
*
Lock the casters so the table will not move.
Lower the lever@ to lock the caster@.
Lower the Ievere to move the table.
*
Remove the three screws
0
I
and open the side
panel@.
Plug the 12Pconnectore forthetreadle@ into
the side panel connector block.
4. Installing the material holder
*
Set the material holder 0 onto the stud
@
and
secure with the screw@).
