i-on16

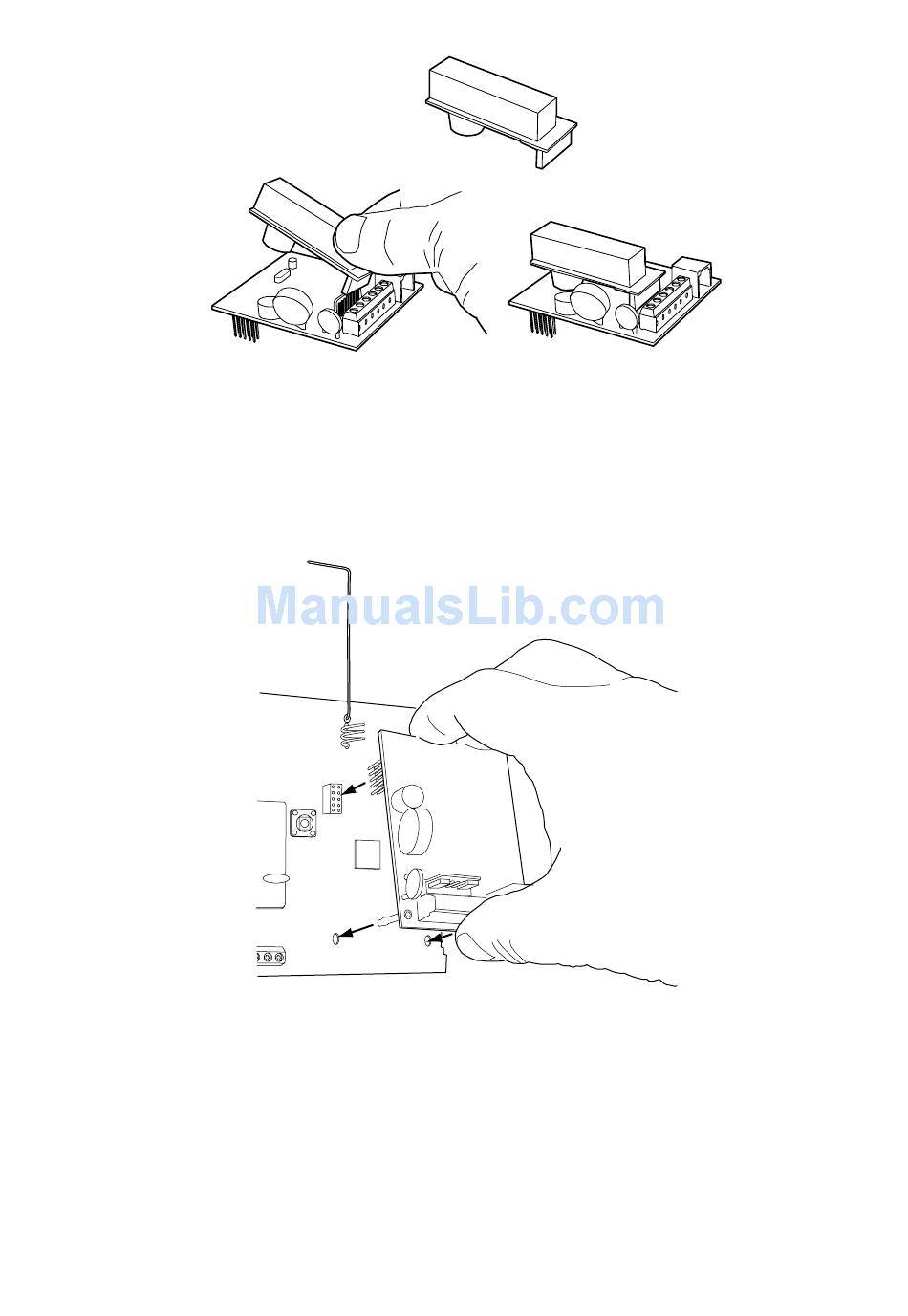

Figure 18. Fitting ADSL01 to I-SD01
Note: If the telephone line is NOT shared with an ADSL
modem then leave the factory fitted jumpers in
place.
Fit the I-SD01 to the plug on module sockets (see 11 on
Figure 2 ).
Figure 19. Fitting I-SD01 Module
The person connecting the I-SD01 module to the PSTN
must be suitably qualified. Connect the I-SD01 telephone
connector (see Figure 20) ONLY to the PSTN or to other
circuits designated as Telecommunications Network
Voltage.
ADSL01
Installation
Page 21
