Installation
0V 12V
14V4
AUX

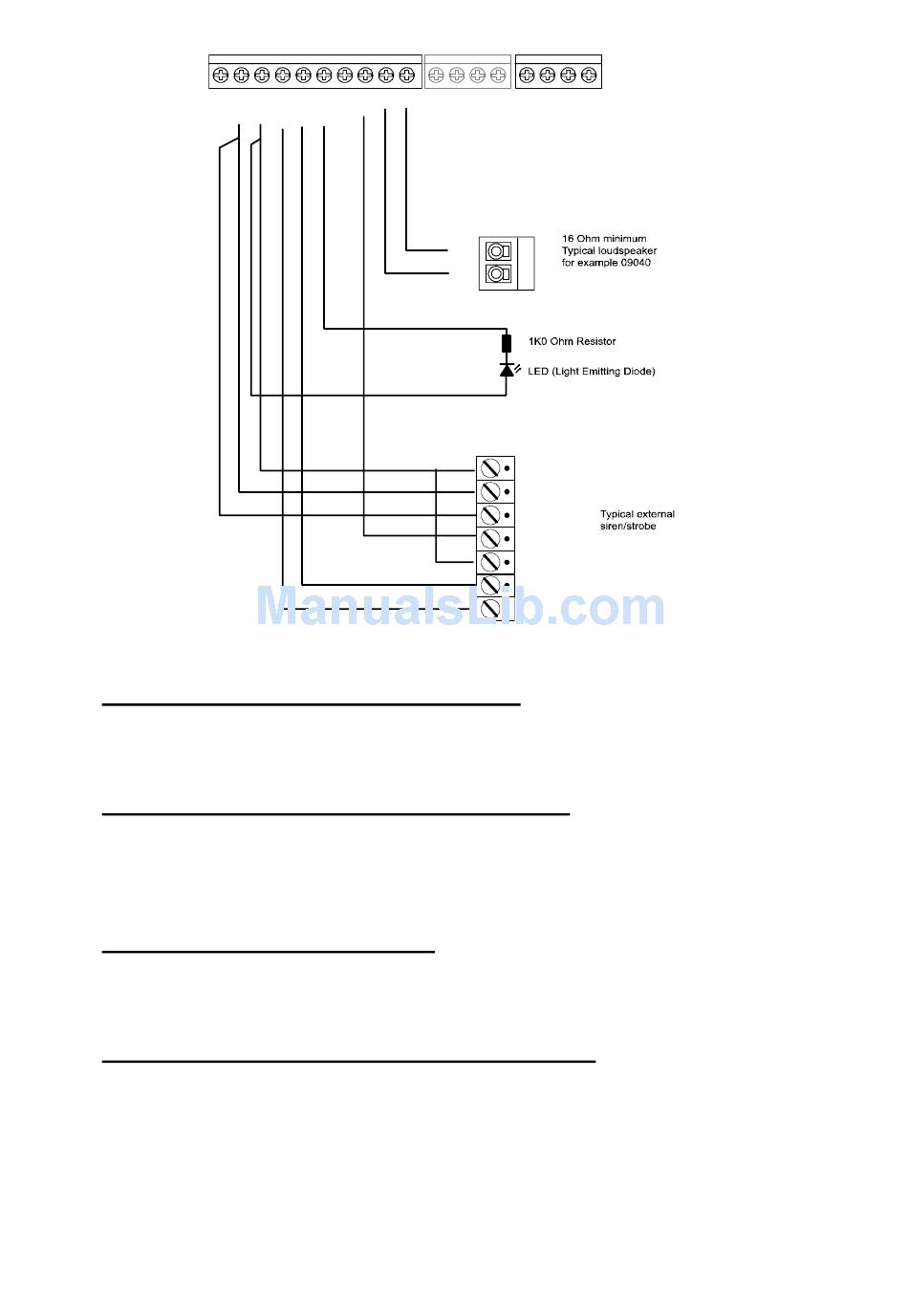

Figure 14. Connecting Wired Peripherals
Remote Loudspeaker (Optional)
If you wish to add a wired Loudspeaker unit, then
connect it as shown in Figure 14.
Wired External Sounders (Optional)
Wired external sounders differ in their methods of
connection. Figure 14 shows an example of a general
method of using the outputs to connect a wired sounder..
Wired Outputs (Optional)
Figure 14 shows an example of using the wired outputs to
drive an indicator LED.
Fit and connect the I-RC01 (Optional)
Cooper Security Ltd provide the I-RC01 relay card for use
when connecting the outputs to devices that require
voltage free contacts on their inputs. The I-RC01 is
supplied with a short wiring loom that provides
connections to each relay trigger input (see Figure 15). A
Page 18
1
2
3
4 TR
0V 12V
- LS +
OUTPUTS
A
B
0V 0V 12V 12V
BUS
AUX AUX
+LS
-LS
12V +
0V
Tamper In
Tamper Out
Strobe +ve
Strobe -ve
Trigger -ve
i-on16
