Installation

5. Fit and Connect I-SD01 (Optional)

Safety Notice

Figure 17 identifies connectors for Safety Extra-Low
Voltage (SELV) and Telecommunications Network Voltage
(TNV) circuits on the control unit's main PCB. These
terms are used in accordance with the definitions in
Safety Standard EN60 950.
The Installer must ensure that TNV terminals are
connected only to other circuits designated as TNV
circuits (for example, the PTSN) and that SELV terminals
are connected only to other circuits designated as SELV
circuits. Strict adherence to the installation instructions
will ensure that the equipment continues to comply with
the safety regulations to which it was approved.
1. SELV terminals
2. TNV terminals.

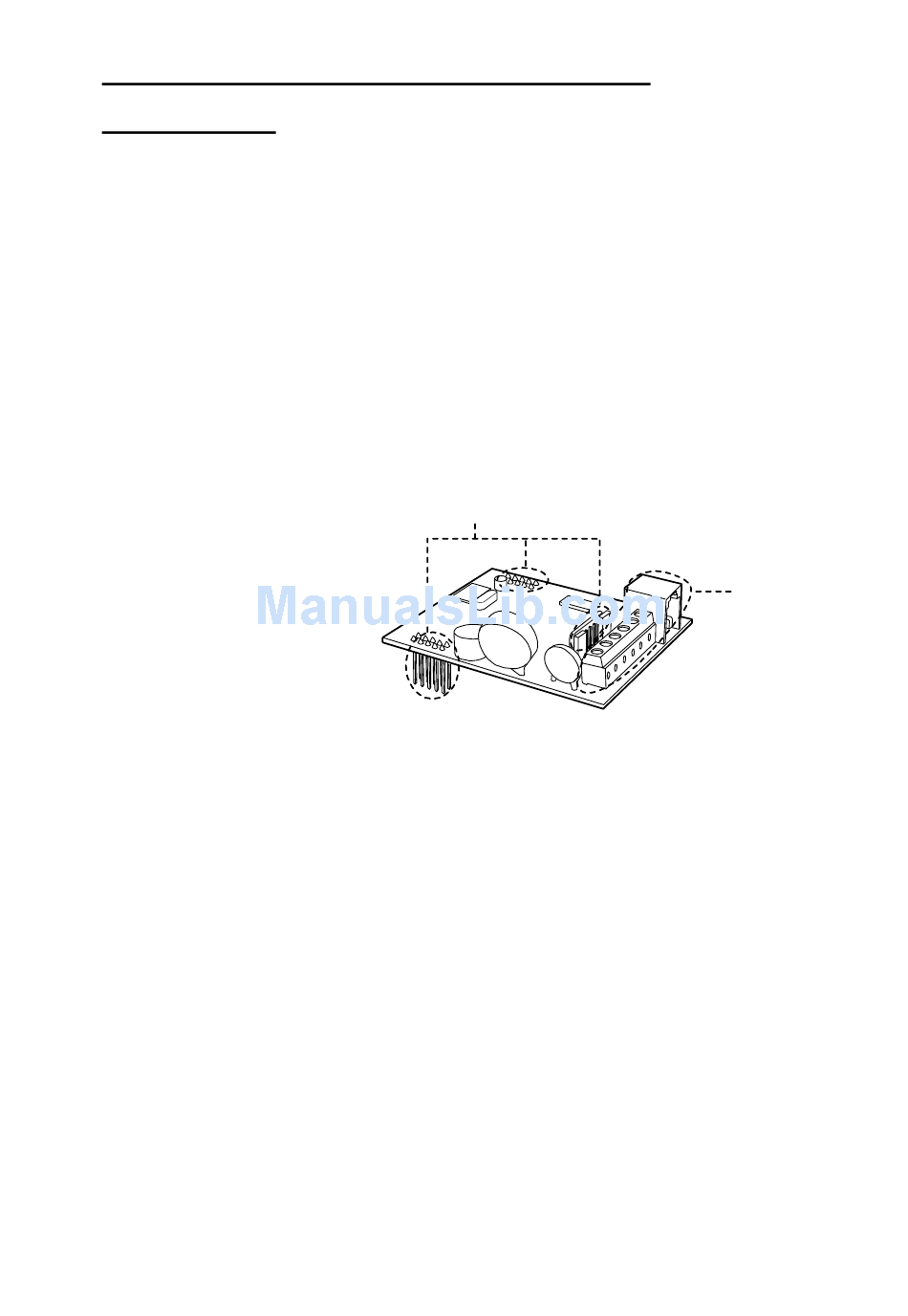

Figure 17. SELV and TNV Terminals
CAUTION: Make sure that the end station is not powered
(either mains or battery) before fitting the I-SD01.
Note: The control unit hides the Reporting menu if there
is no I-SD01 fitted (see page 45 ).
Before fitting the I-SD01 module, check whether the
telephone line you intend to use is shared with an ADSL
(broadband) modem. If it is, then remove the factory
fitted jumpers from the SD01 and fit filter ADSL01 as
shown in Figure 18 .
