4.3 WAN Ports

The RX1000 series can optionally be equipped with T1/E1 WAN ports, which
communicate on standard telephony communication lines. Figure 26 illustrates
where these WAN ports are typically located on the chassis. The T1/E1 WAN ports
are equipped with standard RJ45 receptacles, whose pin assignment is described in
Table 7. The user should take note of the orientation of the RJ45 receptacle when
inserting or removing cabling.

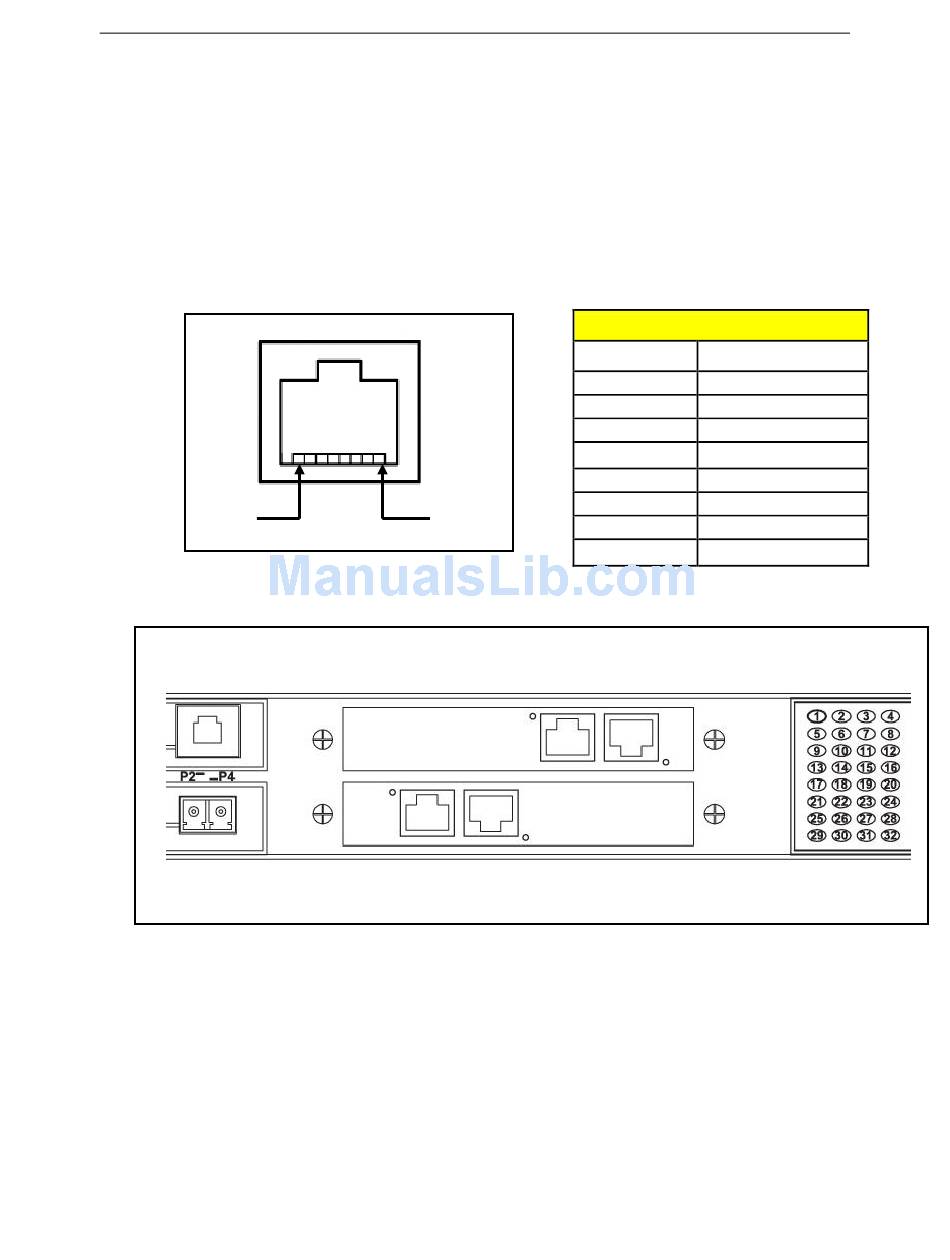

Pin 8

Figure 25: RJ45 jack pin configuration

Figure 26: WAN (T1/E1) Card location

®
RuggedCom - Rev.122
T1/E1 pinout
Pin
1
2
3
4
5
6
Pin 1
7
8

Table 7: RJ45 T1/E1 pin assignment

Slot 5
Slot 6
28 RuggedRouter
Description
RRING
RTIP
NC
TRING
TTIP
NC
NC
NC
®
