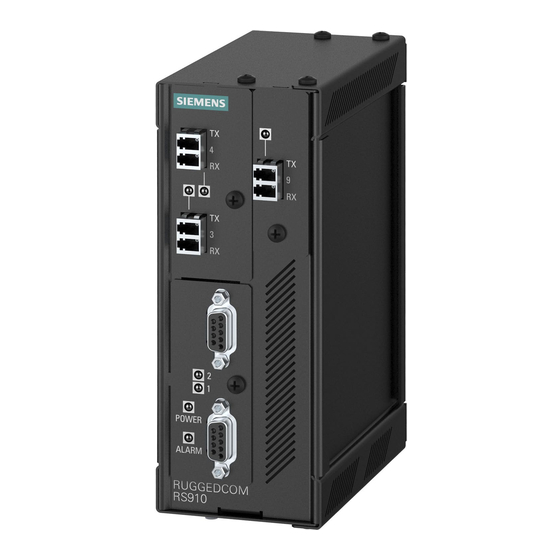

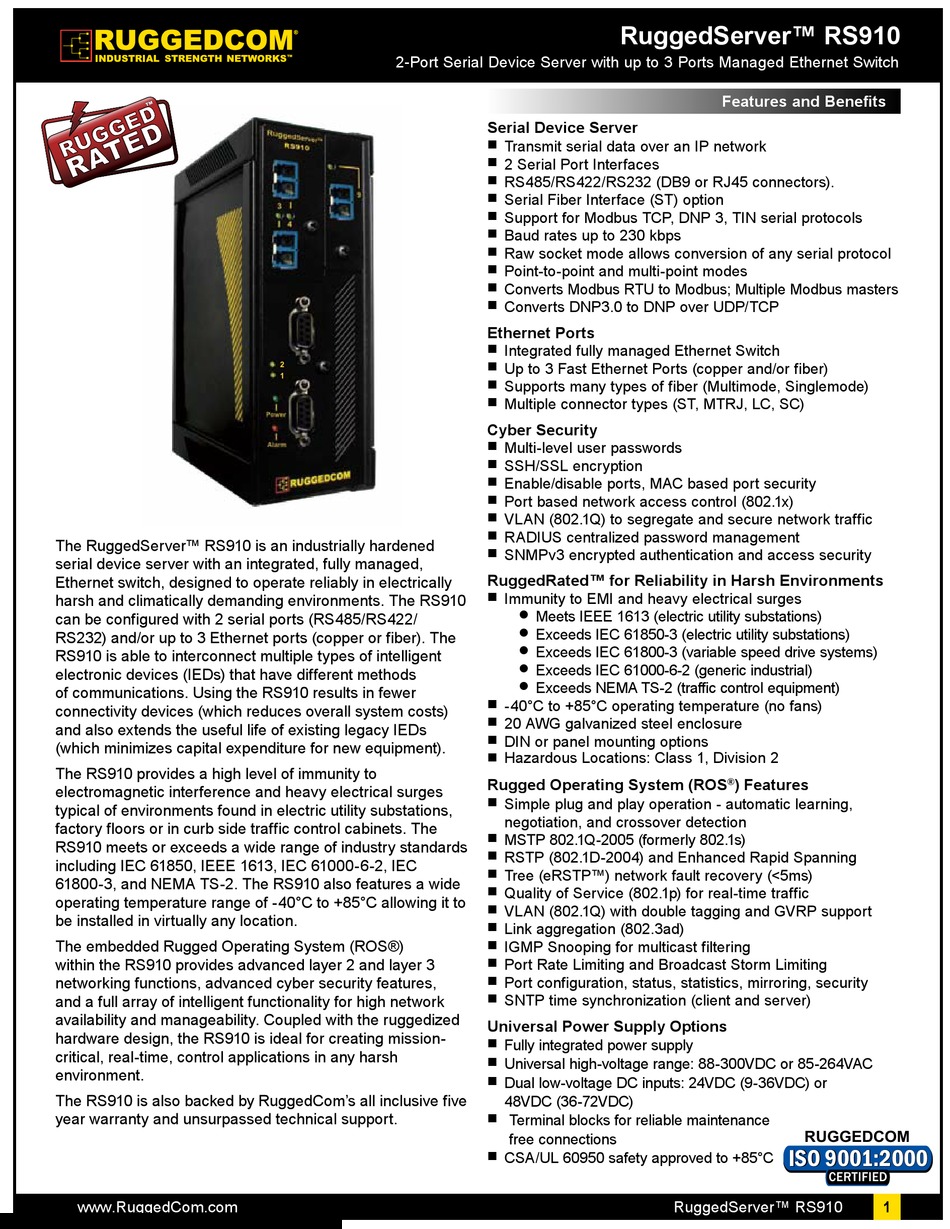

RuggedCom RuggedServer RS910 Specifications

The RuggedServer™ RS910 is an industrially hardened
serial device server with an integrated, fully managed,
Ethernet switch, designed to operate reliably in electrically
harsh and climatically demanding environments. The RS910
can be configured with 2 serial ports (RS485/RS422/
RS232) and/or up to 3 Ethernet ports (copper or fiber). The
RS910 is able to interconnect multiple types of intelligent
electronic devices (IEDs) that have different methods
of communications. Using the RS910 results in fewer
connectivity devices (which reduces overall system costs)
and also extends the useful life of existing legacy IEDs
(which minimizes capital expenditure for new equipment).
The RS910 provides a high level of immunity to
electromagnetic interference and heavy electrical surges
typical of environments found in electric utility substations,
factory floors or in curb side traffic control cabinets. The
RS910 meets or exceeds a wide range of industry standards
including IEC 61850, IEEE 1613, IEC 61000-6-2, IEC
61800-3, and NEMA TS-2. The RS910 also features a wide
operating temperature range of -40°C to +85°C allowing it to
be installed in virtually any location.
The embedded Rugged Operating System (ROS®)
within the RS910 provides advanced layer 2 and layer 3
networking functions, advanced cyber security features,
and a full array of intelligent functionality for high network
availability and manageability. Coupled with the ruggedized
hardware design, the RS910 is ideal for creating mission-
critical, real-time, control applications in any harsh
environment.
The RS910 is also backed by RuggedCom's all inclusive five
year warranty and unsurpassed technical support.
www.RuggedCom.com
2-Port Serial Device Server with up to 3 Ports Managed Ethernet Switch
Serial Device Server
„ „ Transmit serial data over an IP network
„ „ 2 Serial Port Interfaces
RS485/RS422/RS232 (DB9 or RJ45 connectors).
„ „
„ „ Serial Fiber Interface (ST) option
„ „ Support for Modbus TCP, DNP 3, TIN serial protocols
„ „ Baud rates up to 230 kbps
Raw socket mode allows conversion of any serial protocol
„ „
„ „ Point-to-point and multi-point modes
„ „ Converts Modbus RTU to Modbus; Multiple Modbus masters
Converts DNP3.0 to DNP over UDP/TCP
„ „
Ethernet Ports
„ „ Integrated fully managed Ethernet Switch
Up to 3 Fast Ethernet Ports (copper and/or fiber)
„ „
„ „ Supports many types of fiber (Multimode, Singlemode)
„ „ Multiple connector types (ST, MTRJ, LC, SC)
Cyber Security
„ „ Multi-level user passwords
„ „ SSH/SSL encryption
Enable/disable ports, MAC based port security
„ „
„ „ Port based network access control (802.1x)
„ „ VLAN (802.1Q) to segregate and secure network traffic
„ „ RADIUS centralized password management
SNMPv3 encrypted authentication and access security
„ „
RuggedRated™ for Reliability in Harsh Environments
„ „ Immunity to EMI and heavy electrical surges
Meets IEEE 1613 (electric utility substations)
z „
z „ Exceeds IEC 61850-3 (electric utility substations)
z „ Exceeds IEC 61800-3 (variable speed drive systems)
Exceeds IEC 61000-6-2 (generic industrial)
z „
z „ Exceeds NEMA TS-2 (traffic control equipment)
„ „ -40°C to +85°C operating temperature (no fans)
20 AWG galvanized steel enclosure
„ „
„ „ DIN or panel mounting options
Hazardous Locations: Class 1, Division 2
„ „
Rugged Operating System (ROS
Simple plug and play operation - automatic learning,
„ „
negotiation, and crossover detection
„ „ MSTP 802.1Q-2005 (formerly 802.1s)
RSTP (802.1D-2004) and Enhanced Rapid Spanning
„ „
„ „ Tree (eRSTP™) network fault recovery (<5ms)
„ „ Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with double tagging and GVRP support
„ „
„ „ Link aggregation (802.3ad)
„ „ IGMP Snooping for multicast filtering
„ „ Port Rate Limiting and Broadcast Storm Limiting
„ „ Port configuration, status, statistics, mirroring, security
„ „ SNTP time synchronization (client and server)
Universal Power Supply Options
„ „ Fully integrated power supply
„ „ Universal high-voltage range: 88-300VDC or 85-264VAC
Dual low-voltage DC inputs: 24VDC (9-36VDC) or
„ „
48VDC (36-72VDC)
|
„ „ Terminal blocks for reliable maintenance
free connections
„ „ CSA/UL 60950 safety approved to +85°C
