RuggedCom RuggedSwitch RSG2100 Specification Sheet

®

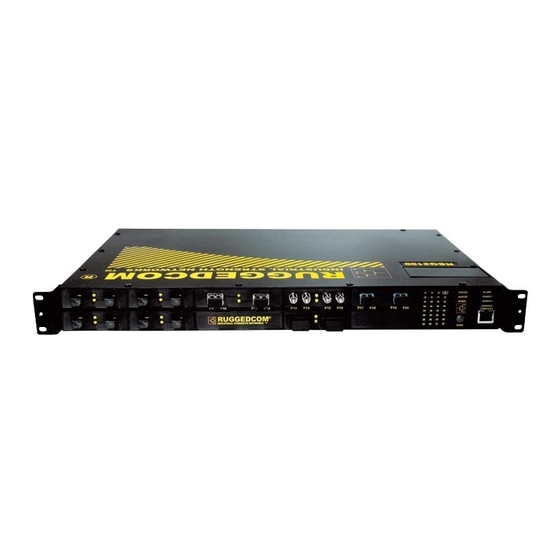

The RuggedSwitch RSG2100 is an industrially hardened, fully
managed, modular, Ethernet switch specifically designed to
operate reliably in electrically harsh and climatically
demanding utility substation and industrial environments.
The RSG2100's superior ruggedized hardware design
coupled with the embedded Rugged Operating System
(ROS ® ) provides improved system reliability and advanced
cyber security and networking features making it ideally
suited for creating secure Ethernet networks for mission-
critical, real-time, control applications.
The RSG2100's modular flexibility offers 10BaseFL /100BaseFX
/1000BaseX fiber and 10/100/1000BaseTX copper port
combinations. Optional front or rear mount connectors make the
RSG2100 highly versatile for any application and can support
multiple fiber connectors (ST, MTRJ, LC, SC) without loss of port
density. The RSG2100 is packaged in a rugged galvanized steel
enclosure with industrial grade DIN, panel, or 19" rack-mount
mounting options.
Ethernet Ports
.up to 3-Gigabit Ethernet ports - copper and/or fiber
.up to 16-Fast Ethernet ports - copper and/or fiber
.2 port modules for tremendous flexibility
.Non-blocking, store and forward switching
.Supports many types of fiber (Multimode, singlemode,
bi-directional single strand)
.Long haul optics allow Gigabit distances up to 70km
.Multiple connector types (ST, MTRJ, LC, SC)
Cyber Security Features
.Multi-level user passwords
.SSH/SSL encryption
.Enable/disable ports, MAC based port security
.Port based network access control (802.1x)
.VLAN (802.1Q) to segregate and secure network traffic
.RADIUS centralized password management
.SNMPv3 encrypted authentication and access security
www.RuggedCom.com
19-Port Modular Managed Ethernet Switch with Gigabit Uplink Ports
Features and Benefits
RuggedSwitch
eRSTP
eRSTP
eRSTP
eRSTP
eRSTP
eRSTP
TM
RuggedRated for Reliability in Harsh Environments
.Immunity to EMI and heavy electrical surges
. Zero-Packet-Loss™ Technology
.Meets IEEE 1613 (electric utility substations)
Class 1 with copper ports or Class 2 with all fiber ports
. Exceeds IEC 61850-3 (electric utility substations)
.
Exceeds IEC 61800-3 (variable speed drive systems)
.
Exceeds IEC 61000-6-2 (generic industrial)
.
Exceeds NEMA TS-2 (traffic control equipment)
.-40°C to +85°C operating temperature (no fans)
.Conformal coated printed circuit boards (optional)
.18 AWG galvanized steel enclosure
.Hazardous Location Certification: Class 1 Division 2
Rugged Operating System (ROS
.Simple plug and play operation - automatic learning,
negotiation, and crossover detection
.MSTP 802.1Q-2005 (formerly 802.1s)
.RSTP (802.1w) and Enhanced Rapid Spanning
Tree (eRSTP™) network fault recovery (<5ms)
.Quality of Service (802.1p) for real-time traffic
.VLAN (802.1Q) with double tagging and GVRP support
.Link aggregation (802.3ad)
.IGMP Snooping for multicast filtering
.Port Rate Limiting and Broadcast Storm Limiting
.Port configuration, status, statistics, mirroring, security
.SNTP time synchronization (client and server)
.Industrial automation features (eg. Modbus)
Management Tools
.Web-based, Telnet, CLI management interfaces
.SNMP v1/v2/v3
.Remote Monitoring (RMON)
.Rich set of diagnostics with logging and alarms
Universal Power Supply Options
.Fully integrated, dual-redundant (optional) power supplies
.Universal high voltage range: 88-300VDC or 85-264VAC
.Popular low voltage ranges: 24VDC(9-36VDC),
48VDC (36-72VDC)
.Screw or pluggable terminal blocks available
.Terminal blocks for reliable
maintenance free connections
.CSA/UL 60950 safety approved
to +85°C
RuggedSwitch
®
RSG2100
eRSTP
eRSTP
eRSTP eRSTP eRSTP
eRSTP eRSTP
ZPL
TM
Zero-Packet-Loss™
eRSTP
eRSTP
eRSTP
eRSTP
eRSTP
eRSTP
eRSTP
eRSTP
® ) Features
RUGGEDCOM
ISO 9001:2000 ISO 9001:2000 ISO 9001:2000
CERTIFIED
® RSG2100 1
