3.2.2

DC Power Supply Wiring Examples

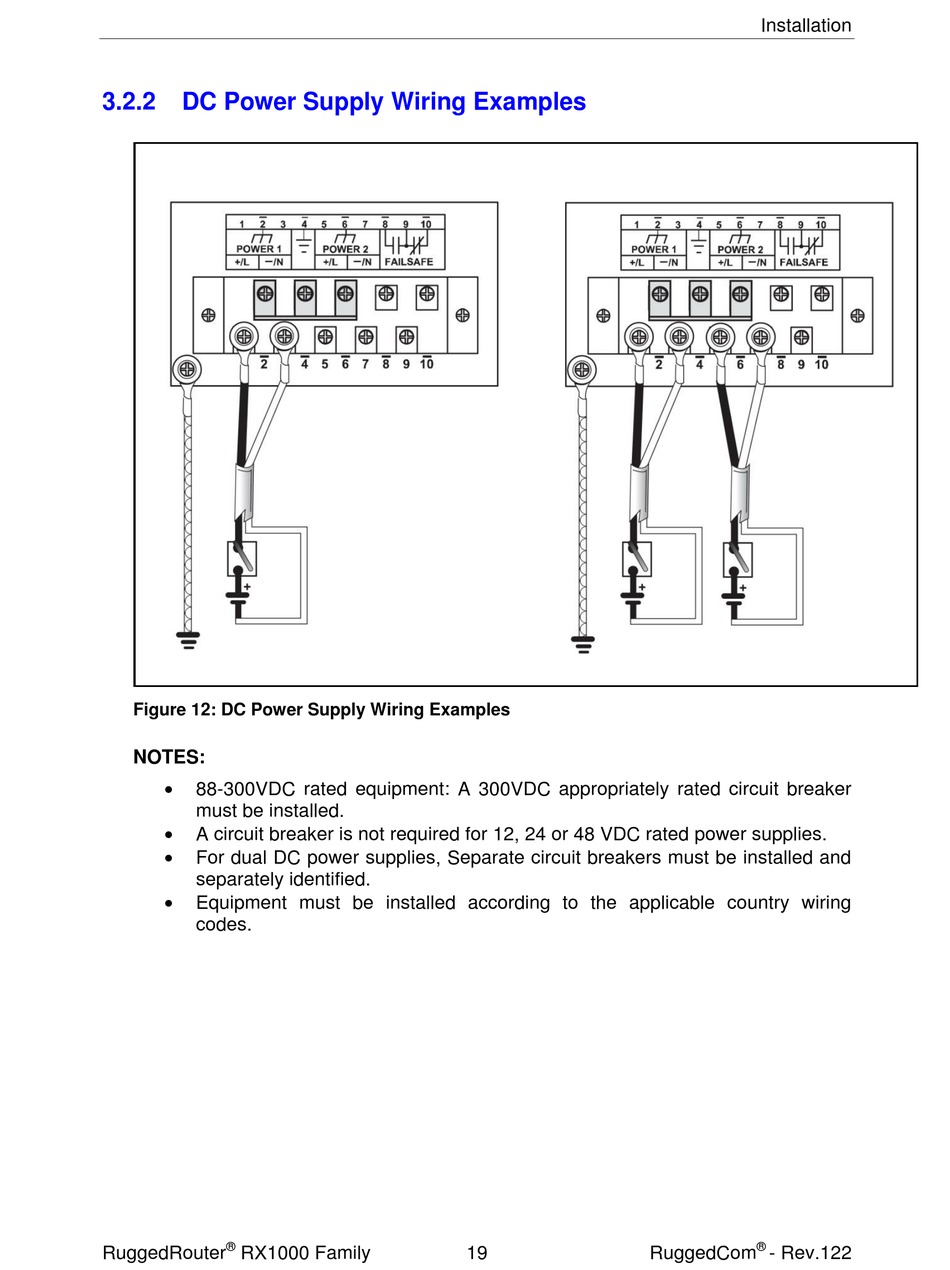

Figure 12: DC Power Supply Wiring Examples

NOTES:



88-300VDC rated equipment: A 300VDC appropriately rated circuit breaker

must be installed.



A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies.



For dual DC power supplies, Separate circuit breakers must be installed and

separately identified.



Equipment must be installed according to the applicable country wiring

codes.
